SFP transceiver modul BlueOptics SFP-534-BO 10000 Mbit/s 1550 nm

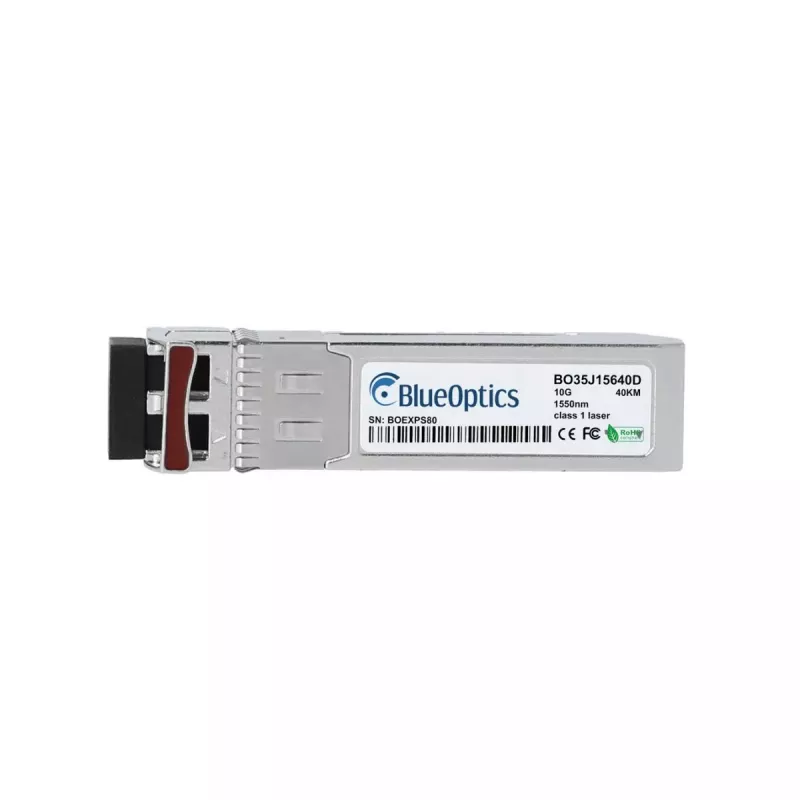

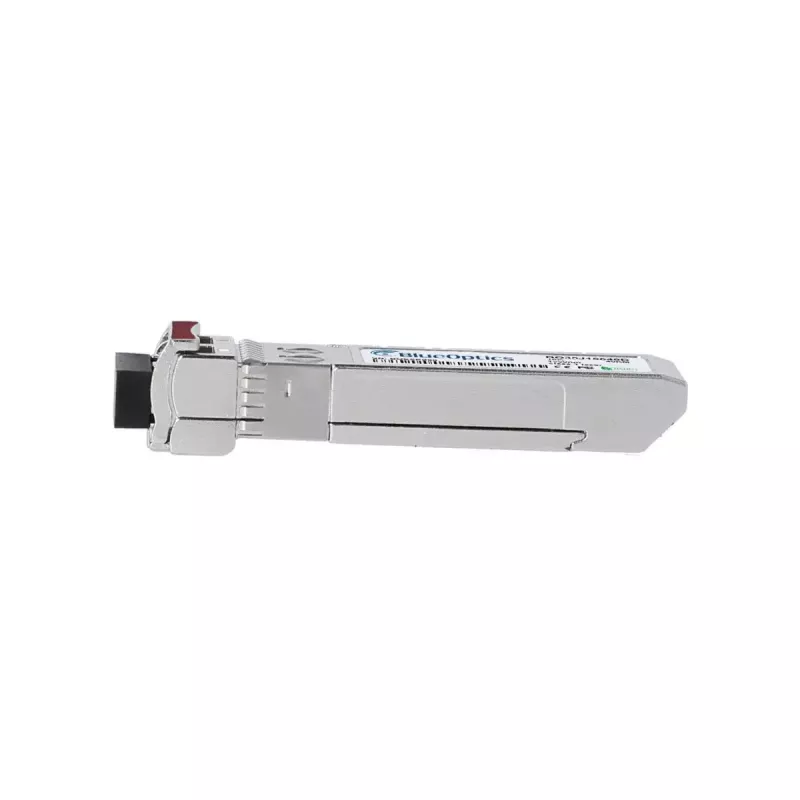

The BlueOptics SFP-534-BO is a fiber optic SFP+ transceiver module designed for 10 Gbit/s class links. It operates at a wavelength of 1550 nm and supports single-mode fiber connections with an LC duplex interface. The module is housed in a metal casing, runs from a 3.3 V supply and is compact and lightweight at approximately 3 g, making it suitable for high-density network equipment that accepts SFP+ form-factor modules.

Advantages

The transceiver conforms to SFP+ physical form-factor expectations and provides a 10 000 Mbit/s maximum data rate for long-reach single-mode links at 1550 nm. Its metal housing contributes to mechanical robustness and EMI resilience. BlueOptics production and compatibility testing aims to ensure interoperability with equipment that supports the original module type, and the LC duplex connector allows simultaneous transmit and receive on separate fibers.

Suitable for

Key specifications

How to use

Install the SFP-534-BO into a compatible SFP+ cage on a switch, router or other network device while the host port is powered down or following the device manufacturer’s hot-swap guidance. Connect LC duplex single-mode patchcords to the module, observing correct transmit-to-receive pairing. Configure the host interface for the intended protocol (for example 10GBASE-ER / 10G Ethernet) and verify link status through the device management interface. Ensure the host device supports the SFP+ module and any digital diagnostics features you intend to use.

Recommendations

The module is intended for single-mode, long-reach applications; use quality LC duplex single-mode patchcords and appropriate fiber management to maximise link performance. Verify host compatibility and, when available, enable digital diagnostics (DDM/DOM) on supported hardware to monitor supply voltage, optical power and temperature for preventive maintenance.
