SFP transceiver modul BlueOptics SFP-LX-10-BO optické vlákno 10000 m

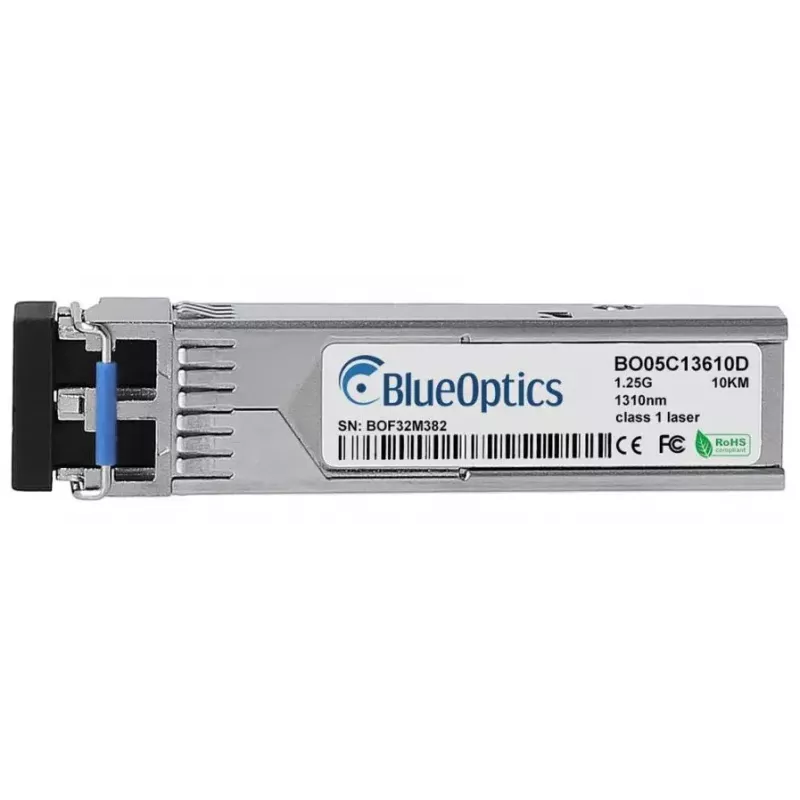

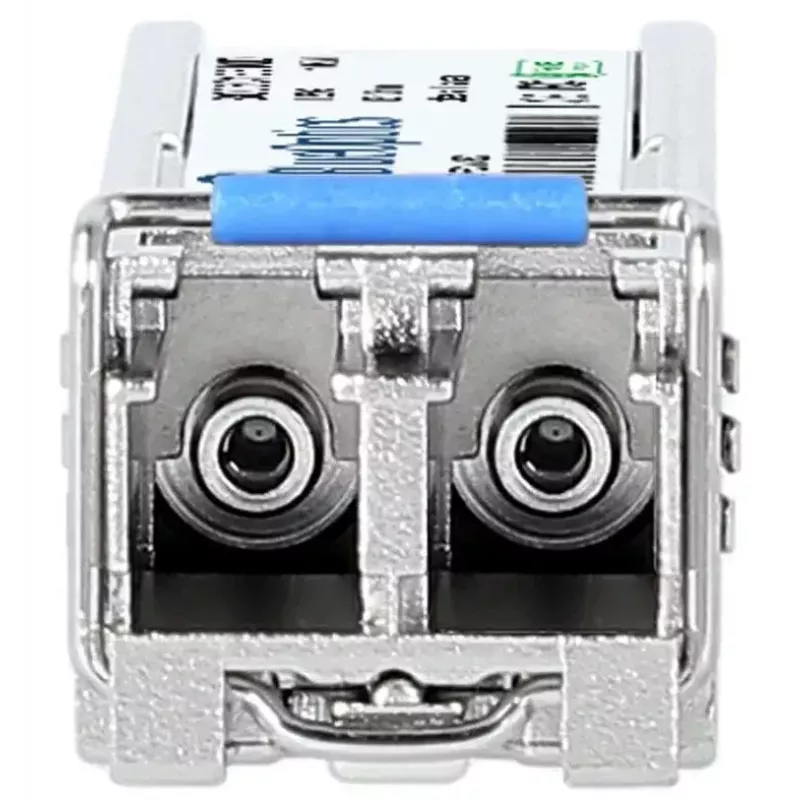

The BlueOptics SFP-LX-10-BO Fiber Optic SFP Transceiver Module is a compact SFP interface designed for single-mode fiber connections up to 10,000 meters. Housed in aluminum and weighing approximately 20 grams, this module supports high-speed optical data transmission and fits standard SFP ports for use in switches, routers and other network equipment. The module uses an LC Duplex connector and operates with typical 1310 nm transmit and receive wavelengths for long-distance single-mode links, providing reliable connectivity in fiber optic networks.

Advantages

The transceiver delivers long-reach single-mode performance in a small SFP form factor, offering low weight and a metal housing for mechanical stability and heat dissipation. It follows common MSA SFP standards for interoperability with compliant network hardware. Built to support long operational life, the module is suitable for continuous use in high-availability environments and is designed for straightforward plug-and-play replacement of compatible SFP transceivers.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into a compatible SFP port on your network device until it clicks into place, then connect LC Duplex single-mode fiber patch cords to the module. Ensure transmit and receive fibers are correctly oriented and that the connected hardware supports the required link speed and single-mode optics. After physical installation, verify link status in the device management interface and configure interface parameters (speed, duplex, VLANs, or other settings) as required by your network. If the host supports digital diagnostics (DDM/DOM), enable or query these features to monitor module parameters.

Recommendations

Use clean LC connectors and appropriate single-mode patch cords to achieve the specified 10 km range. Verify compatibility with the target hardware's supported SFP modules and check whether DDM/DOM is required or supported by the device firmware. For best results, route fiber to avoid tight bends and protect connectors with dust caps when not in use.
