SFP transceiver modul BlueOptics SFP-P-3DH-BO 10000 Mbit/s 1550 nm

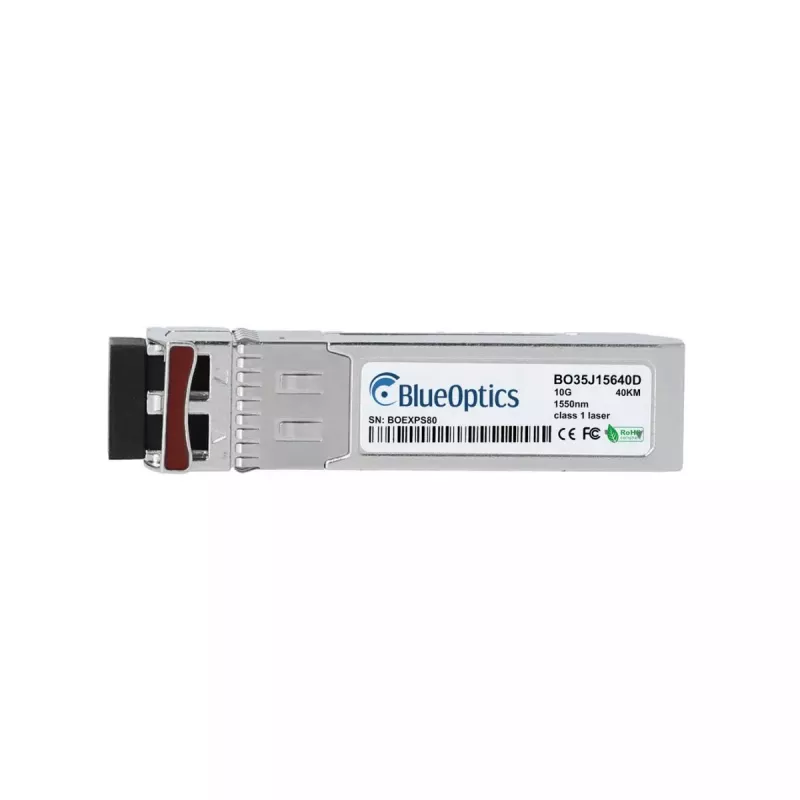

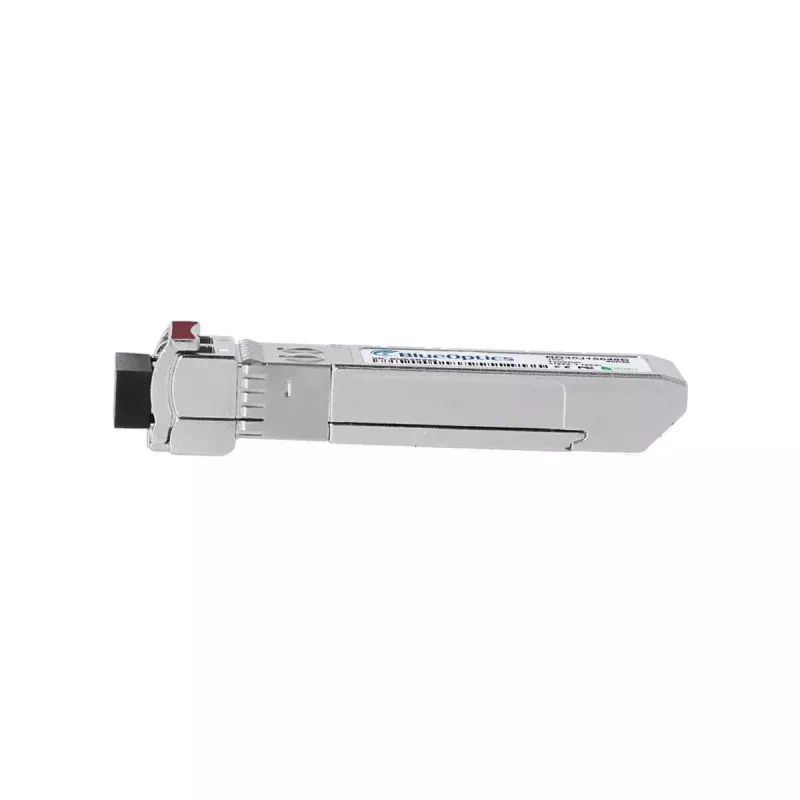

The BlueOptics SFP-P-3DH-BO is an SFP+ fiber-optic transceiver module designed for 10 Gbit/s links over single-mode fiber. Operating at a 1550 nm wavelength, the module supports long-reach optical transmission and is housed in a durable metal casing. It uses a standard LC duplex connector and complies with common MSA SFP+ form-factor expectations, enabling straightforward integration into network switches, routers and other compatible hardware that support 10GBASE-ER optics.

Advantages

The module delivers 10 000 Mbit/s line rate performance at 1550 nm while remaining compact and lightweight. Its metal enclosure provides mechanical robustness and thermal stability, and the SFP+ interface ensures hot-pluggable installation. Built to MSA-compatible specifications, the transceiver includes digital diagnostics (DDM/DOM) support for real-time monitoring of optical power, laser bias, temperature and supply voltage where host hardware provides support.

Suitable for

• Long-distance 10 Gbit/s Ethernet links (single-mode fiber)
• High-speed backbone interconnects between data center equipment
• Interconnection of switches, routers and storage systems supporting SFP+
• Environments requiring remote optical diagnostics and monitoring

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 1550 nm
• Connector: LC duplex (single-mode)
• Operating voltage: 3.3 V
• Housing: metal enclosure, silver colour
• Weight: approx. 3 g
• Supports digital diagnostics monitoring (DDM/DOM) per MSA SFF-8472 when host supports the function

How to use

Install the SFP-P-3DH-BO module into an empty SFP+ port on the target device while the device is powered according to the host equipment manual for hot-pluggable modules. Connect single-mode LC duplex fiber patch cords between transceivers at each end of the link, ensuring correct transmit/receive orientation. Configure the host interface for 10 Gbit/s operation and verify link state and optical parameters using the host management interface or the transceiver’s DDM readings if supported.

Recommendations

Use single-mode fiber and high-quality LC duplex patch cords to achieve the specified reach and signal quality. Verify compatibility with the host device firmware and enable DDM/DOM only if the host supports SFF-8472 to access diagnostic data. Avoid exposing the transceiver to excessive mechanical stress or contamination of the fiber connectors; use dust caps when ports are unused.
