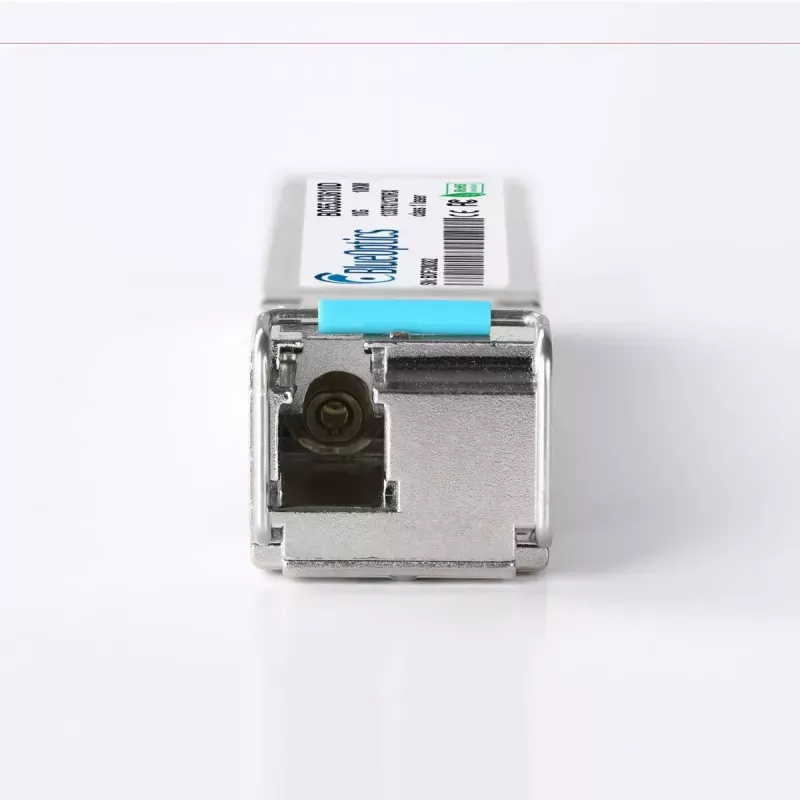

SFP transceiver modul BlueOptics SFP-P-5ADH-BO optický 10000 Mbit/s

The BlueOptics SFP-P-5ADH-BO is a fiber optic SFP+ transceiver module designed for 10 Gbit/s networks. It features an SFP+ interface in a metal silver housing, weighs approximately 20 g and is specified with a high mean time between failures (MTBF) of 1,000,000 hours. The module supports single‑mode fiber connections with LC simplex optical connection and is intended for high‑performance networking equipment that accepts SFP+ pluggable modules.

Advantages

The transceiver delivers a 10,000 Mbit/s data rate over optical fiber while conforming to MSA mechanical and electrical standards for SFP+, enabling interoperable use in a wide range of switches, routers and storage systems. The metal housing provides mechanical durability and thermal stability, and the high MTBF supports long operational availability. The compact, lightweight design simplifies installation and replacement in rack and field environments.

Suitable for

• 10G Ethernet uplinks and server connections
• Fibre Channel over Ethernet (FCoE) and storage area networking links
• Long‑reach single‑mode links up to typical 10 km ranges (when paired with appropriate optics and fiber)
• Replacement or upgrade of SFP+ ports in switches, routers and appliances that support standard SFP+ modules

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical connector: LC simplex (single fiber duplex operation via wavelength division)
• Housing material and colour: metal, silver
• Weight: approx. 0.02 kg (20 g)
• Mean Time Between Failures (MTBF): 1,000,000 hours

How to use

Insert the SFP+ transceiver into an empty SFP+ port on compatible network equipment until it latches. Connect an appropriate single‑mode LC fiber patch cord to the module, observing correct transmit/receive orientation for simplex LC links. Ensure the host device recognizes the module and that link/activity LEDs indicate an established connection. Configure interface settings (speed, duplex, VLAN or other network parameters) on the host device as required by your network design. Follow any vendor guidance for hot‑swap procedures when adding or removing the module.

Recommendations

Use single‑mode fiber and LC simplex patch cords of suitable quality and attenuation for the intended link distance. Verify device compatibility and software/firmware support for third‑party SFP+ modules in your hardware. Monitor link status and, where supported, use digital diagnostics (DDM/DOM) on the host system to check optical power, temperature and supply voltage for proactive maintenance.
