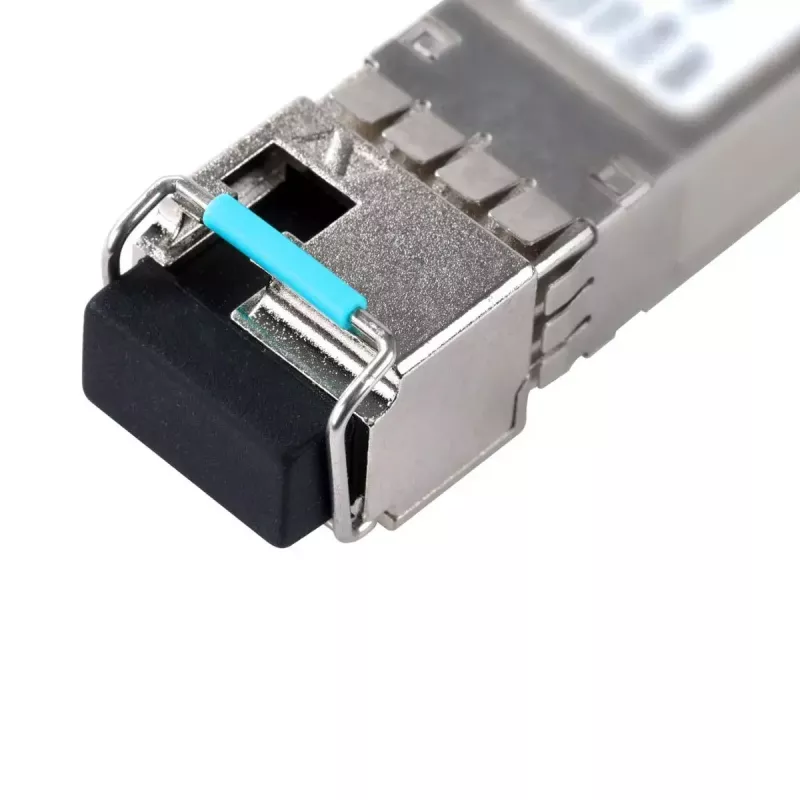

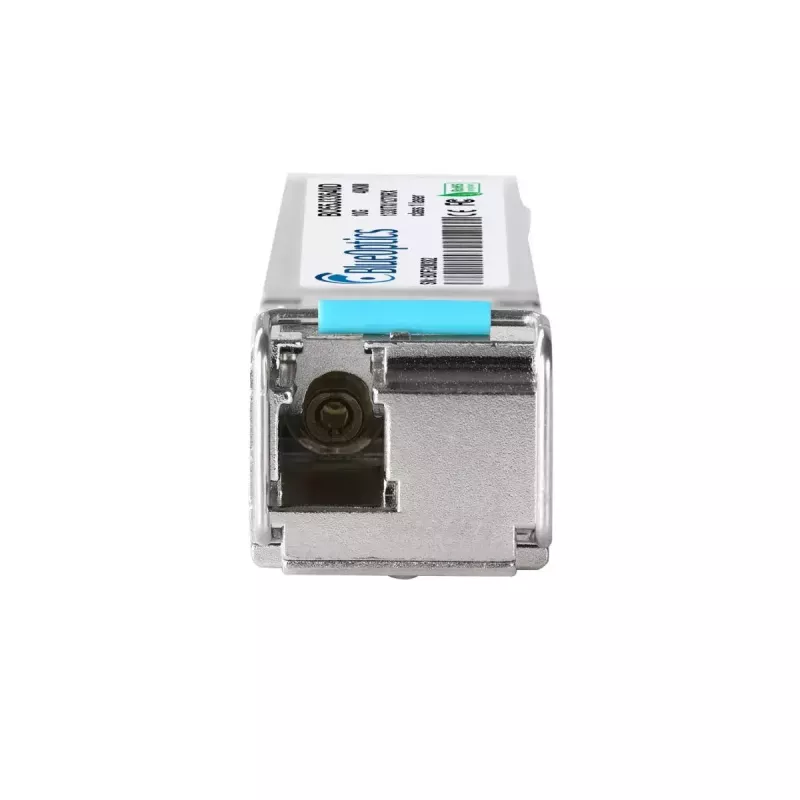

SFP transceiver modul BlueOptics SFP-P-6ADH-BO 10000 Mbit/s SFP+

The BlueOptics SFP-P-6ADH-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s optical links. Housed in a durable metal casing and weighing approximately 20 g, it provides a compact, MSA-compliant pluggable interface for single-mode fiber connections using an LC simplex connector. The module is intended for use in network equipment that supports SFP+ optics and offers a high mean time between failures (MTBF) for long-term operation.

Advantages

The transceiver supports a maximum data transfer rate of 10000 Mbit/s over a single optical fiber using distinct transmit and receive wavelengths, enabling simultaneous bidirectional communication on one fiber when used in a compatible BX-D link configuration. Its metal housing provides mechanical protection and thermal stability while the small form factor and SFP+ electrical interface allow use in a wide range of switches, routers and storage devices that accept MSA-compliant modules. The module’s high MTBF contributes to reduced maintenance and consistent availability in high-speed networks.

Suitable for

• 10G Ethernet uplinks and inter-switch links
• High-speed connections between routers, switches and storage systems
• Fiber backbone segments where single-mode LC simplex connections are used
• Environments requiring MSA-compliant SFP+ pluggable optics

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Connector type: LC simplex (single-mode, BX-D wavelengths)
• Housing: metal shell
• Weight: approx. 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the BlueOptics SFP-P-6ADH-BO module into an empty SFP+ port on compatible network equipment, ensuring the host device supports MSA-compliant SFP+ transceivers and, if required, BX-D wavelength operation. Connect an appropriate single-mode LC simplex patch cable between this transceiver and the corresponding remote transceiver. Allow the device and link to negotiate link parameters; monitor link status via the host device. If the host supports Digital Diagnostics (DDM/DOM), enable or query the monitoring functions per the device documentation to observe supply voltage, laser bias, output/received power and temperature where supported.

Recommendations

To achieve optimal performance, pair the transceiver with single-mode LC simplex fiber and maintain clean connector endfaces. Verify compatibility with your hardware vendor for BX-D SFP+ operation and, where available, use DDM/DOM monitoring to detect potential signal degradation early. Follow ESD precautions during handling and install modules into compatible slots while the chassis is powered according to the host device guidance.
