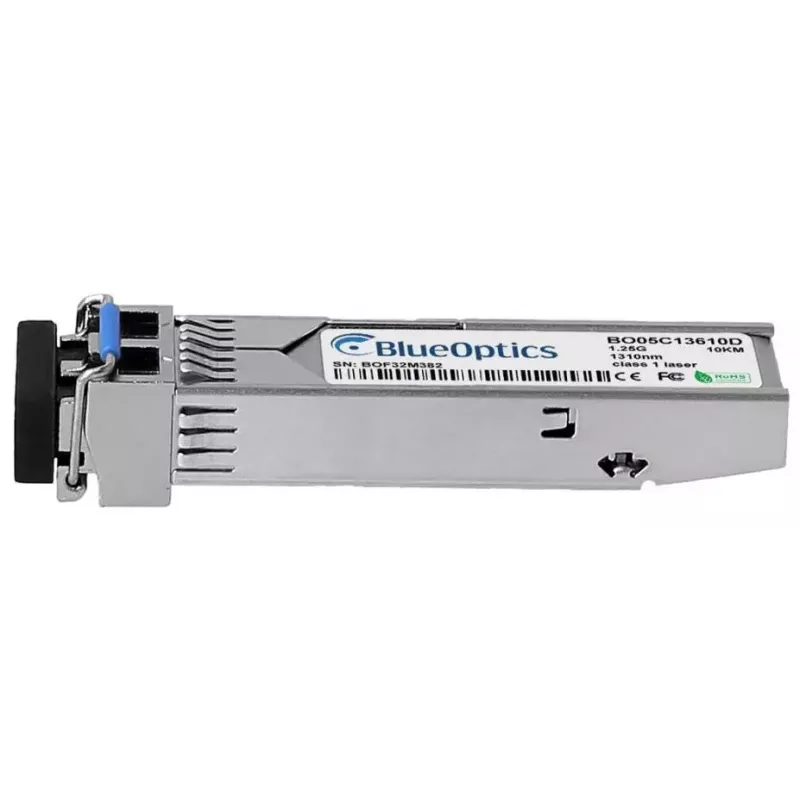

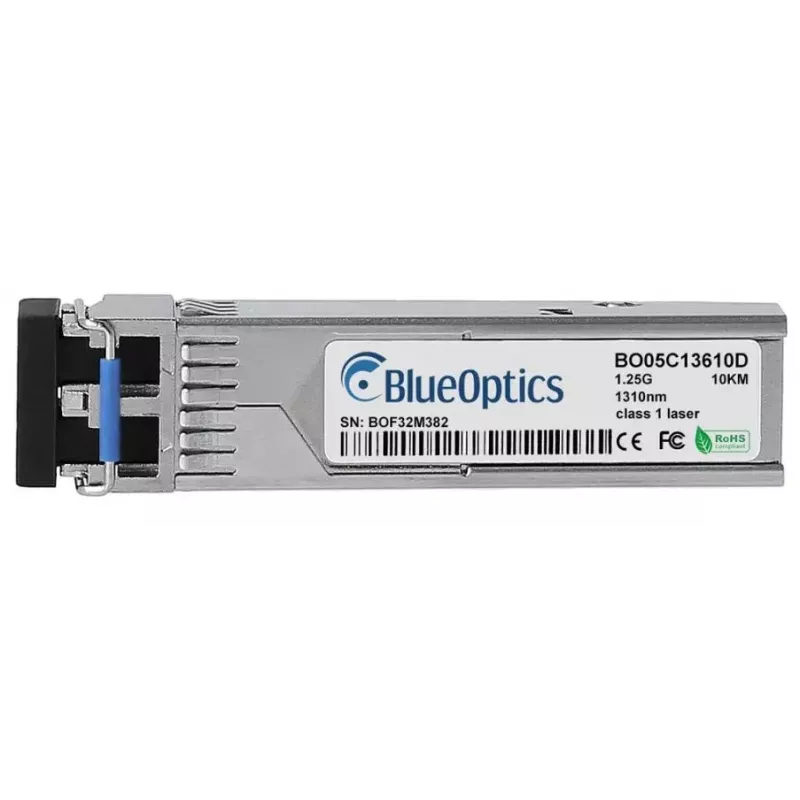

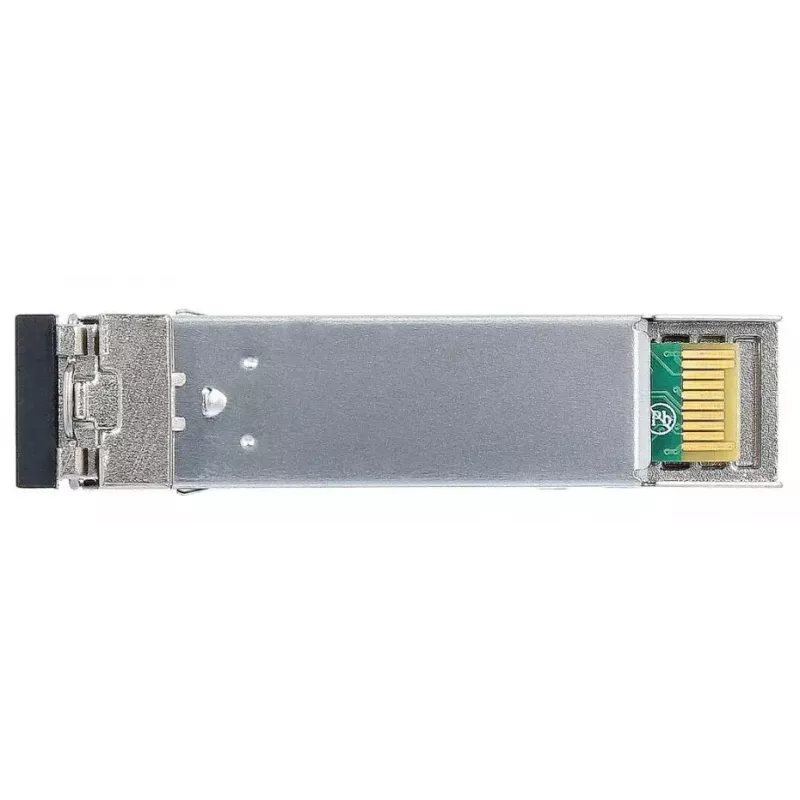

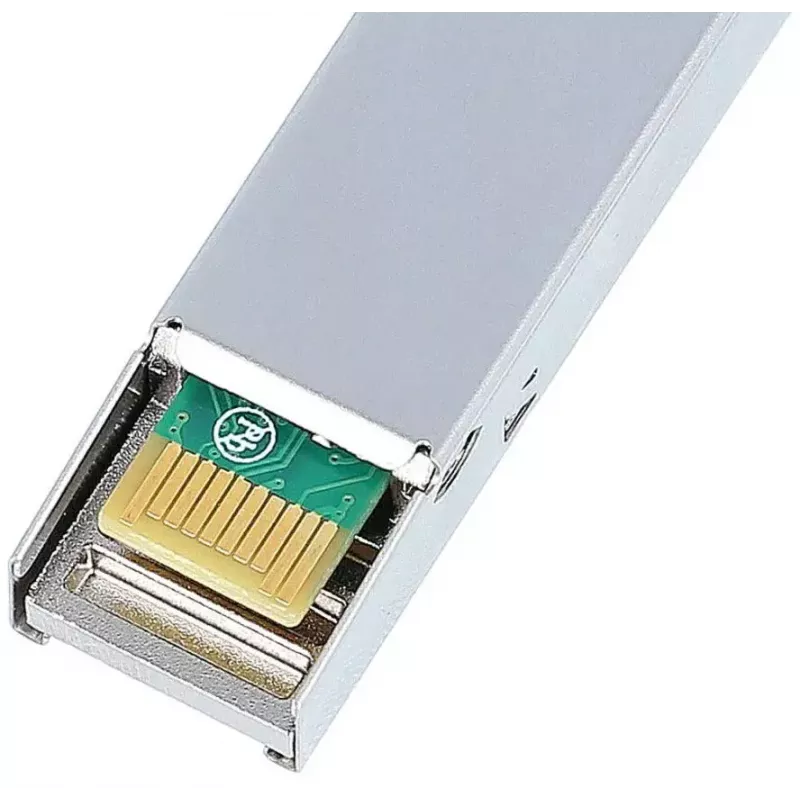

SFP transceiver modul BlueOptics SFP1000LX-10KM-BO 1250 Mbit/s 1310 nm

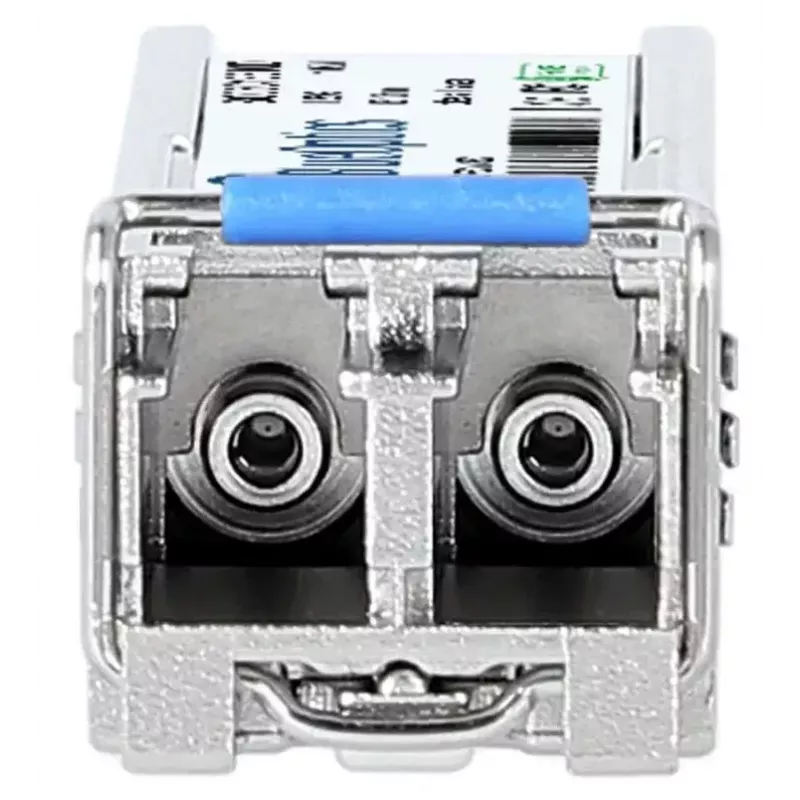

The BlueOptics SFP1000LX-10KM-BO is a single-mode fiber SFP transceiver module designed for 1000BASE-LX links. It supports a maximum data transfer rate of 1250 Mbit/s and transmits at a wavelength of 1310 nm, enabling reliable optical connections up to 10 km. The module comes in a metal housing, operates from a 3.3 V supply and weighs approximately 3 g. It uses an LC duplex optical interface and is compatible with hardware that accepts MSA-compliant 1000BASE-LX SFP modules.

Advantages

The module offers a compact, metal-cased design for mechanical durability and thermal stability while keeping weight low. With 1310 nm wavelength optics and support for data rates up to 1.25 Gbit/s, it is suitable for long-reach single-mode fiber links up to 10 km. Compliance with common SFP/MSA form-factor standards ensures broad interoperability with switches, routers and storage systems that support 1000BASE-LX transceivers. The transceiver is designed for extended operational lifetime and consistent optical performance.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP1000LX-10KM-BO by inserting the module into an available SFP slot of a compatible network device until it latches. Connect LC duplex single-mode fiber patch cords to the module's transmit and receive ports, observing correct polarity. Ensure the host device supports 1000BASE-LX SFP modules and configure the interface for the desired Ethernet settings. Verify the link status and, if available, use the device management interface to monitor optical parameters.

Recommendations

For optimal link performance, use single-mode fiber and quality LC duplex patch cords rated for 1310 nm. Verify device compatibility and, where supported, enable Digital Diagnostics Monitoring (DDM/DOM) to monitor supply voltage, laser bias current, output and input power and temperature. Maintain clean connector end-faces and follow standard fiber handling procedures to minimize attenuation and ensure stable operation.
