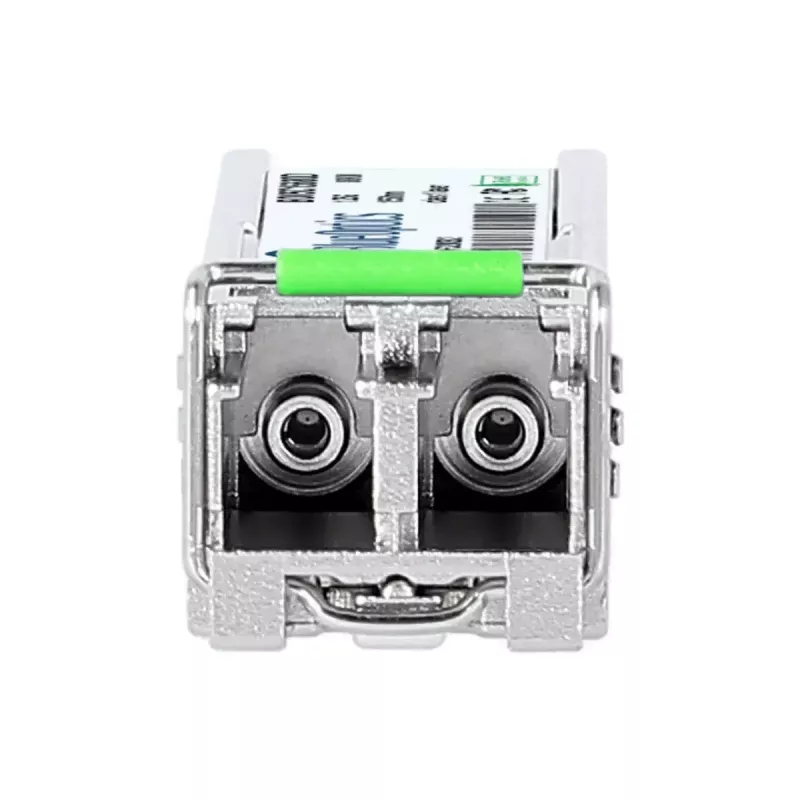

SFP transceiver modul BlueOptics SFP1G-TR15H-BO 1250 Mbit/s 1550 nm

The BlueOptics SFP1G-TR15H-BO is a single‑mode fiber optic SFP transceiver module designed for 1.25 Gbit/s Ethernet and related high‑speed applications. Operating at a wavelength of 1550 nm with an LC duplex connector, it supports optical links up to 80 km and is supplied in a compact silver metal housing weighing approximately 20 g. The module implements industry MSA form‑factor and transmission characteristics suitable for use in switches, routers and other network devices that accept 1000BASE‑ZX SFP modules.

Advantages

The module delivers long‑reach single‑mode connectivity at 1550 nm with a maximum data transfer rate of 1250 Mbit/s and a rated maximum transfer distance of up to 80,000 m. Compliance with MSA physical standards and LC duplex termination ensures broad interoperability with equipment that supports 1000BASE‑ZX optics. A high MTBF (mean time between failures) contributes to low maintenance frequency and reliable operation in continuous network environments. The compact, silver metal housing provides mechanical protection and standard SFP hot‑swap capability.

Suitable for (tasks / use cases)

Key specifications

How to use

Install the transceiver into an SFP slot on compatible network equipment while the device is powered down or use hot‑swap insertion if the host platform supports it. Connect LC duplex single‑mode fiber patch cords ensuring correct transmit/receive orientation. Verify link status and, if available, enable digital diagnostic monitoring (DDM/DOM) in the host device to read real‑time parameters such as optical power and temperature. Configure the network interfaces on both ends for the appropriate Ethernet protocol (1000BASE‑ZX or compatible) and perform link tests to confirm error‑free operation.

Recommendations

Use high‑quality single‑mode LC patch cords and, when possible, route fibers through patch panels to minimize connector wear. Confirm that the target hardware explicitly permits third‑party SFP modules or supports MSA‑compliant optics to ensure proper operation. If your environment requires remote monitoring, enable DDM/DOM in the host to monitor optical power and module temperature. Observe ESD precautions while handling the module and keep dust caps on unused ports to protect optical interfaces.
