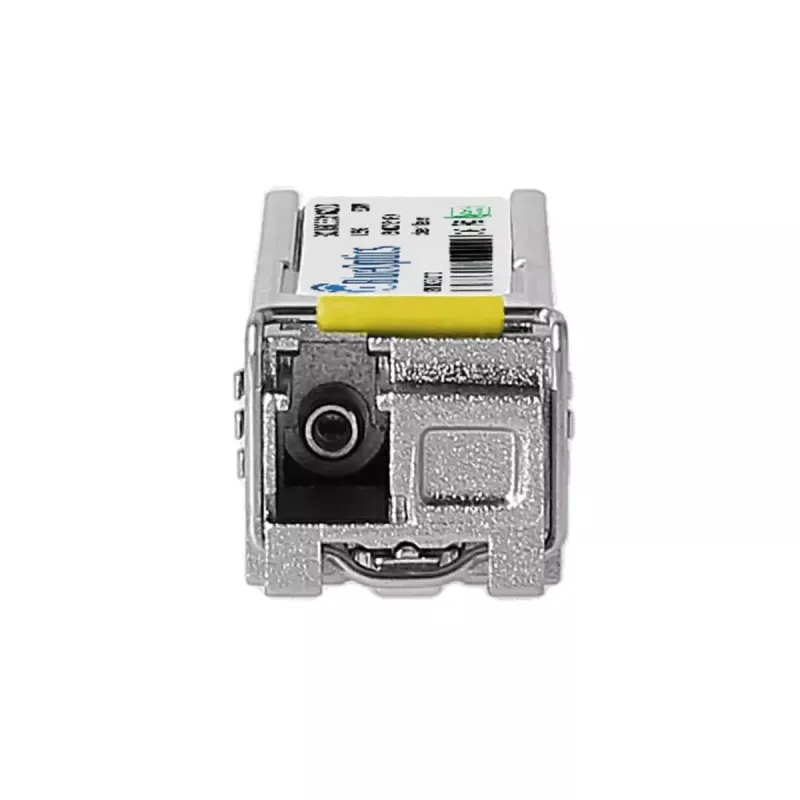

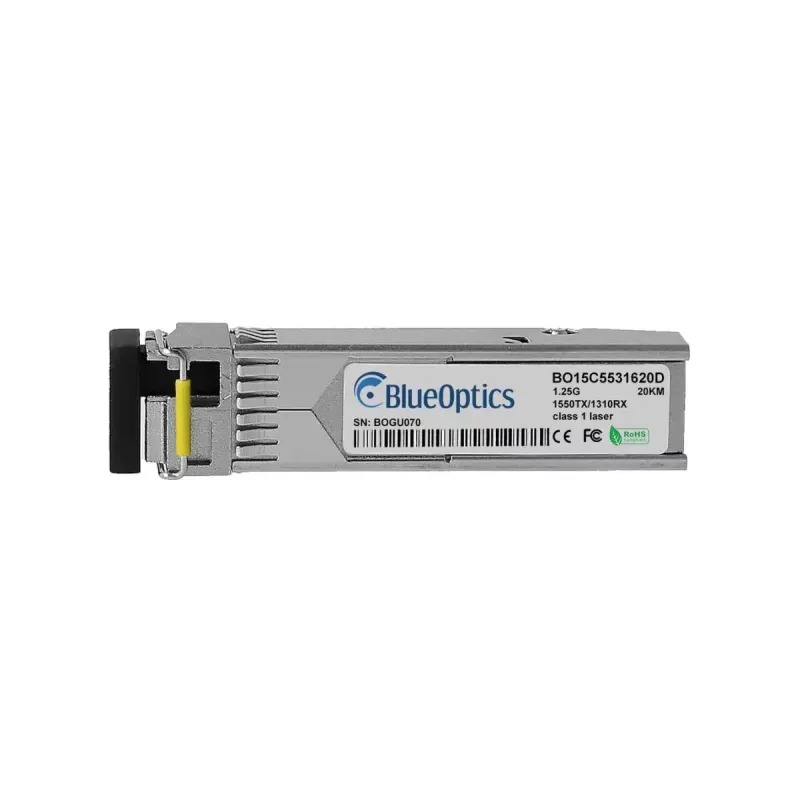

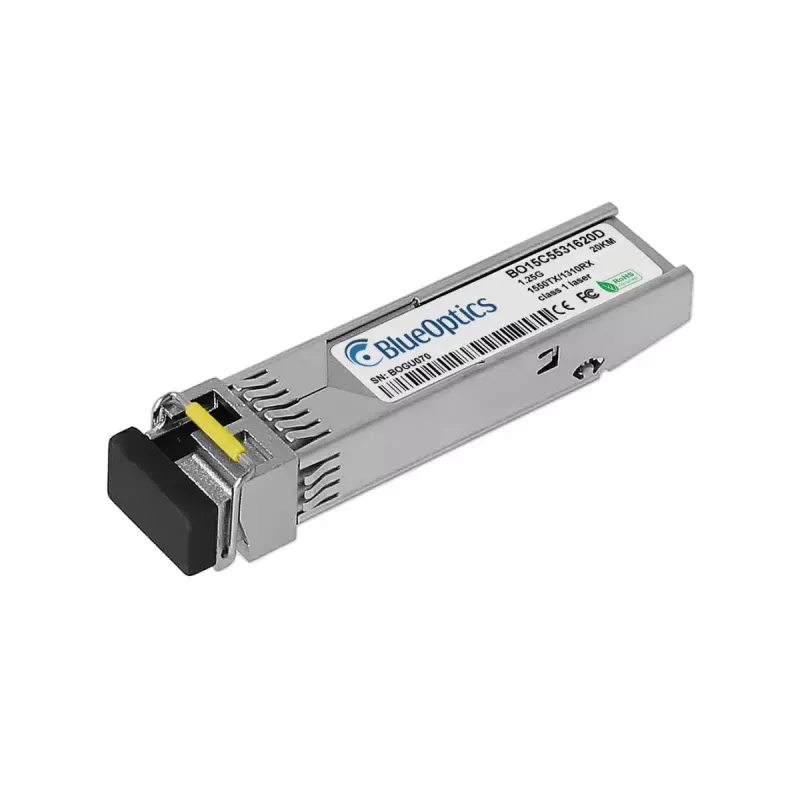

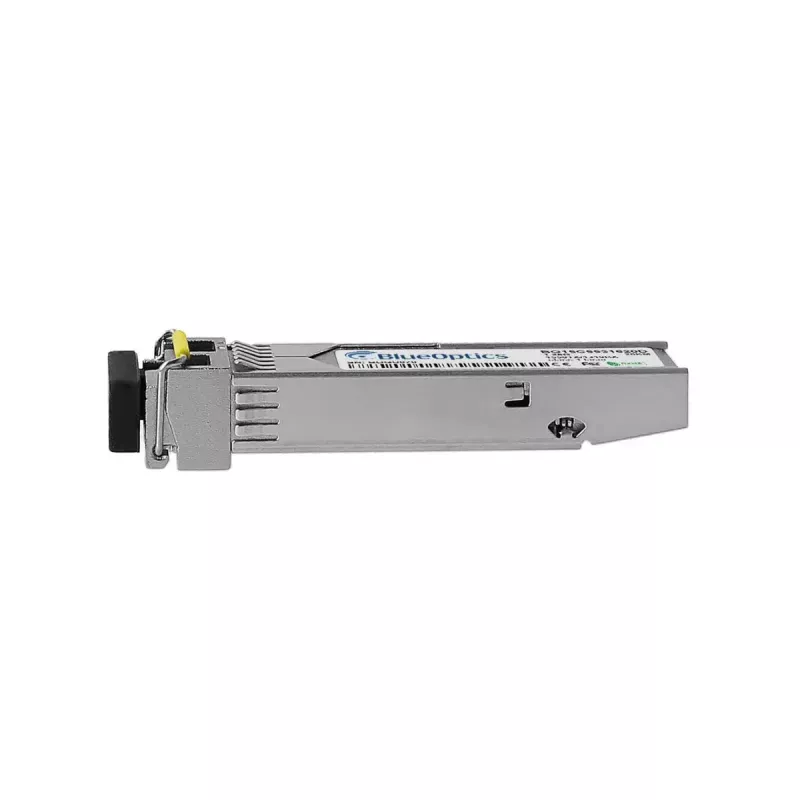

SFP transceiver modul BlueOptics SFPGLX10B15-BO 1250 Mbit/s strieborný

The BlueOptics SFPGLX10B15-BO is an SFP fiber optic transceiver module designed for single-mode links with a maximum data transfer rate of 1250 Mbit/s. Housed in a silver metal casing and weighing approximately 20 g, this compact SFP module follows MSA-compatible mechanical and electrical dimensions for straightforward insertion into SFP ports. It supports bidirectional optical transmission using separate transmit and receive wavelengths and is intended for integration into networking equipment that accepts standard SFP modules.

Advantages

The module offers a compact, hot-pluggable SFP form factor that simplifies installation and replacement in compatible switches, routers and other network devices. Its single-mode fiber design enables long-reach optical links and immunity to electromagnetic interference. The lightweight metal housing and standardized interface ensure mechanical compatibility and stable optical connections when used with appropriate LC simplex patch cords and SFP-compliant hardware.

Suitable for

• Upgrading or extending single-mode fiber links in enterprise networks
• Connecting switches, routers or storage systems with SFP ports
• Applications requiring up to 1250 Mbit/s serial optical links
• Environments where EMI immunity and long-distance optical transmission are needed

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Optical fiber type: single-mode (LC simplex connector recommended)
• Typical reach for single-mode links: suitable for long-distance optical connections when used with appropriate fiber and link budget (verify with system requirements)
• Operating form factor: hot-pluggable SFP module in metal housing
• Product colour: Silver
• Weight: 0.02 kg

How to use

Insert the BlueOptics SFPGLX10B15-BO into a compatible SFP port on your switch, router or other networking equipment while the host device is powered on or off according to the device manual. Connect an LC simplex single-mode patch cord to the module's optical port and to the remote transceiver or patch panel. Confirm that the host device supports the module and the required transmission protocol and wavelengths. Monitor link status indicators on the host device to verify successful link establishment.

Recommendations

Use high-quality single-mode LC patch cords and ensure connector cleanliness to maintain optimal optical performance. Verify host hardware compatibility and, if available, enable digital diagnostic monitoring (DDM/DOM) in the host to monitor parameters such as optical power and temperature. Follow manufacturer guidelines for handling and ESD protection during installation and removal.
