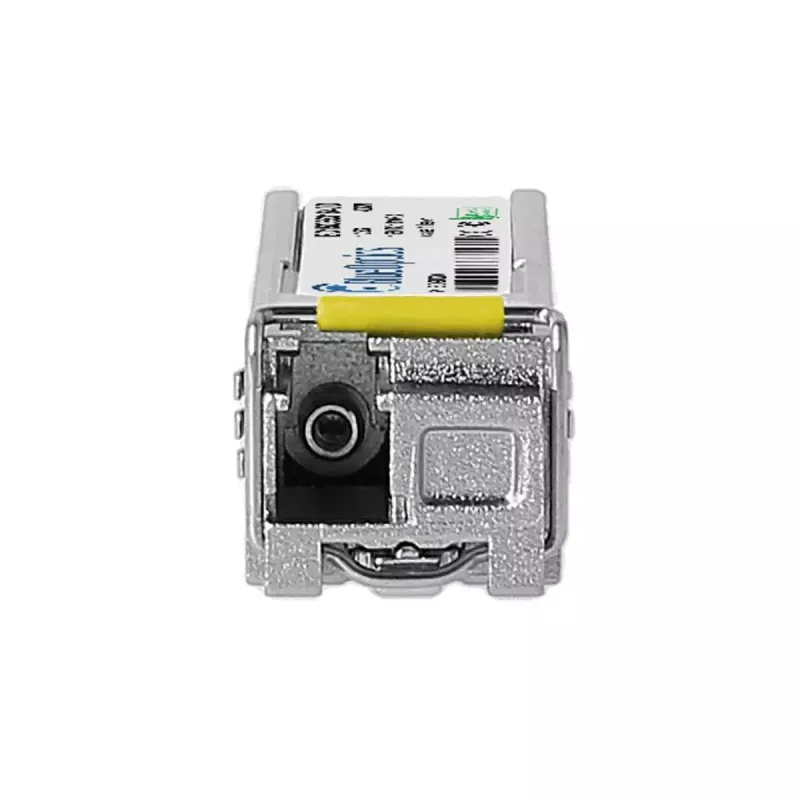

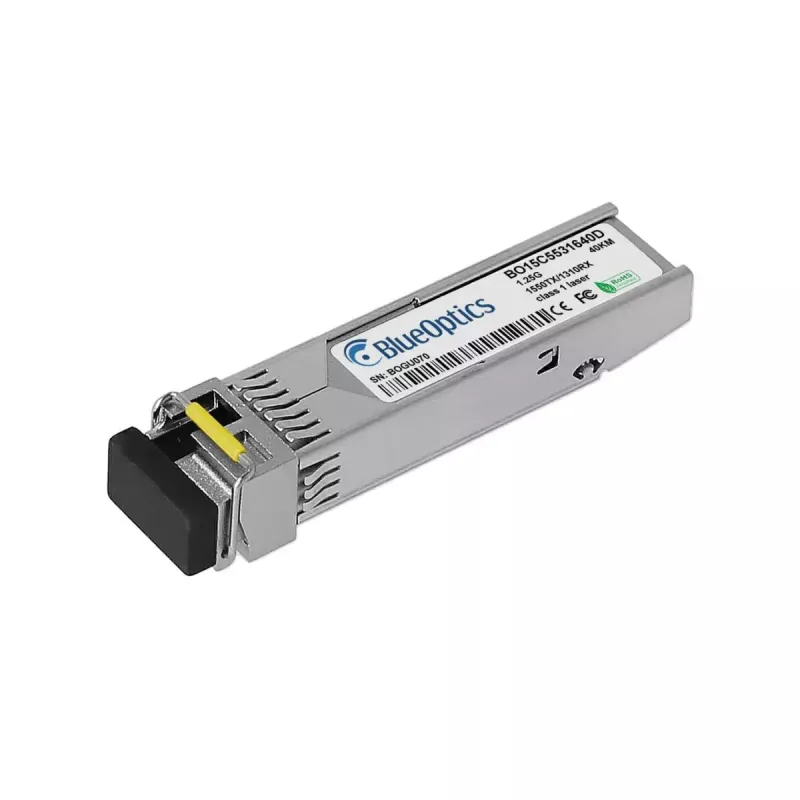

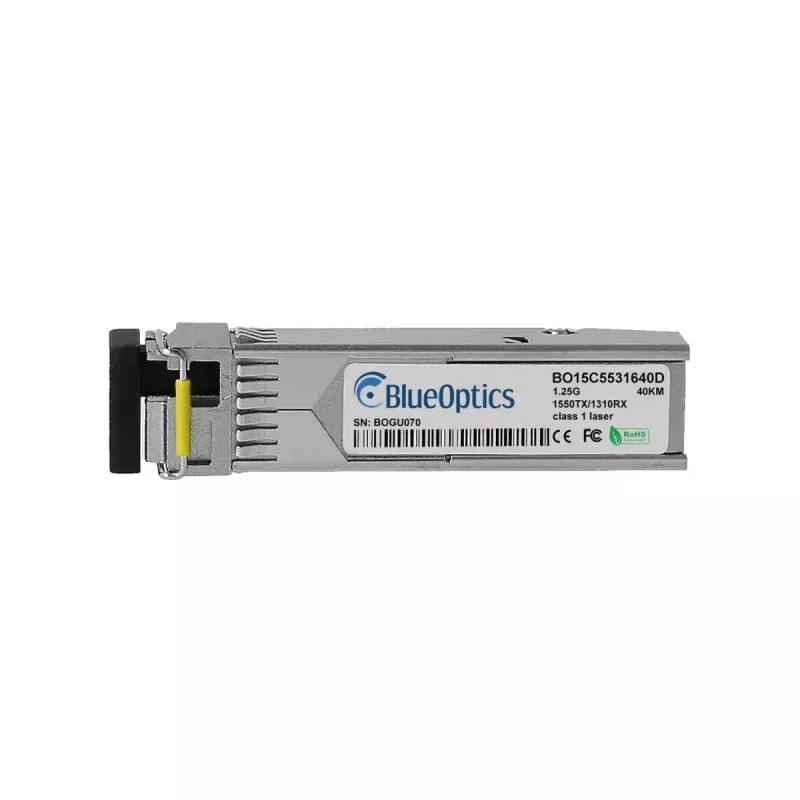

SFP transceiver modul BlueOptics SFPGLX40B15D-BO 1250 Mbit/s

The BlueOptics SFPGLX40B15D-BO SFP transceiver module is a single‑fiber optical module designed for data transmission at up to 1250 Mbit/s. The compact SFP form factor provides an industry‑standard interface for integration into switches, routers and other network equipment that accept SFP transceivers. The module is silver in colour, weighs approximately 20 g and is suited for single‑mode fiber links using LC simplex connections.

Advantages

This BlueOptics SFP transceiver follows MSA mechanical and electrical conventions for SFP modules, offering interoperability with compliant network hardware. It supports reliable optical transmission over single‑mode fiber and is built to a compact, lightweight design that simplifies installation and replacement in rack or chassis systems. The module is suitable for common high‑speed Ethernet and similar telecom applications requiring a 1.25 Gbit/s class optical link.

Suitable for

• Single‑mode fiber uplinks between switches and routers
• Server and storage connectivity in data centers
• Point‑to‑point fiber links and campus backbone segments
• Replacement or spare SFP modules for compatible network hardware

Key specifications

• Interface type: SFP (Small Form‑factor Pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Optical fibre: single‑mode (LC simplex connector typical)
• Typical use distance: suitable for long‑reach single‑mode links (manufacturer data for exact range depends on fibre and link budget)
• Weight: approx. 0.02 kg
• Colour: silver

How to use

Power down or follow your equipment vendor's hot‑swap guidance before installing or removing the SFP transceiver. Insert the module into a compatible SFP slot until it latches, then connect an LC simplex single‑mode patch cord to the module's optical port. Configure the host device according to its interface settings and verify link status via the device management interface. When removing the module, use the ejector or release mechanism provided by the host port and protect the optical interfaces with dust caps when not in use.

Recommendations

Confirm compatibility with your network hardware and firmware before deployment. Use matched single‑mode patch cords and adhere to proper fiber handling practices to avoid contamination or damage. If digital diagnostic monitoring is required, ensure the host device supports DDM/DOM functions to access real‑time module parameters.
