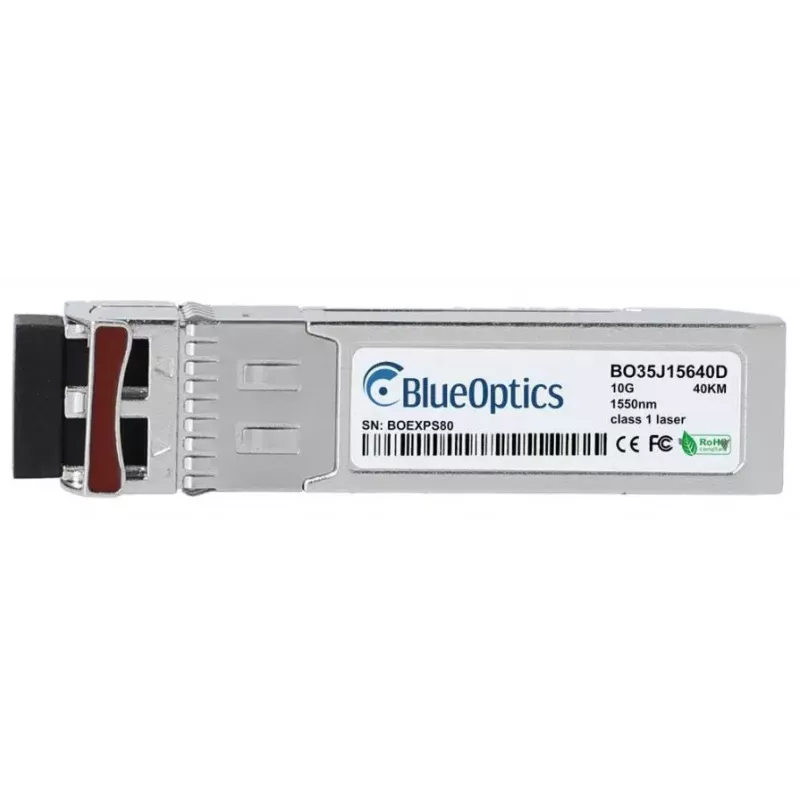

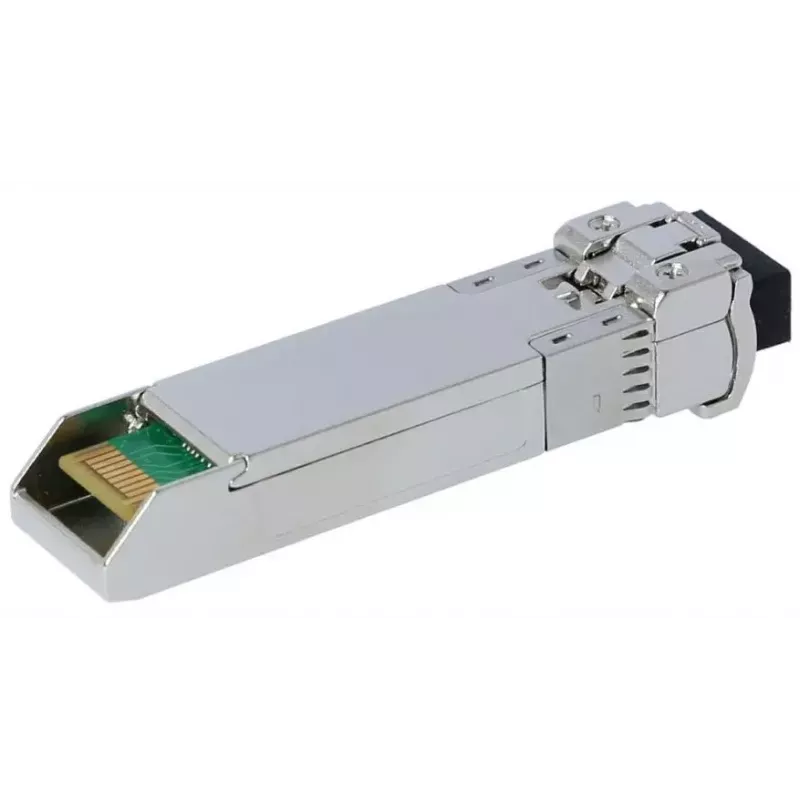

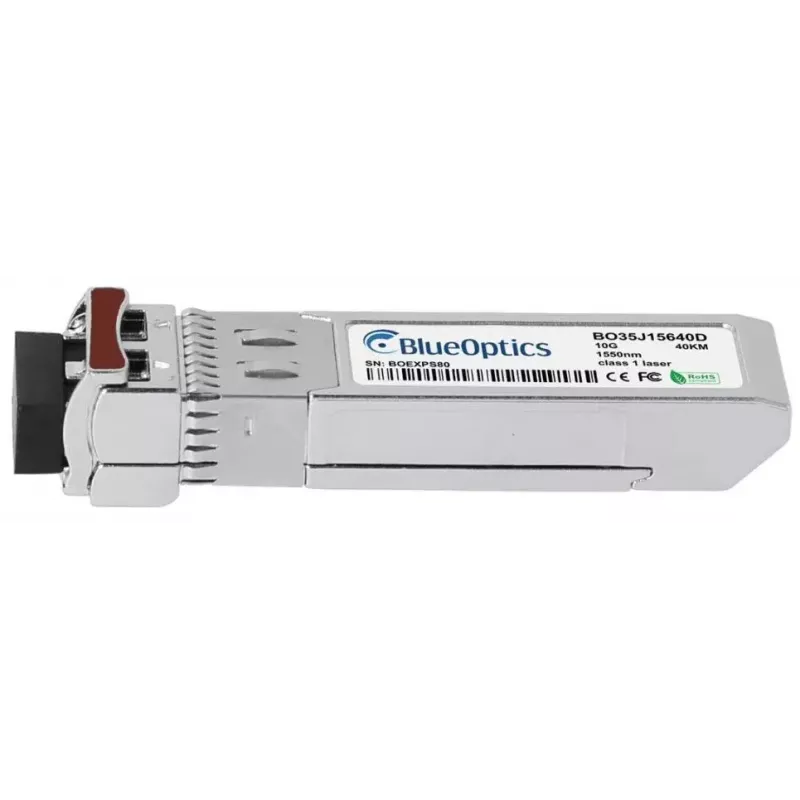

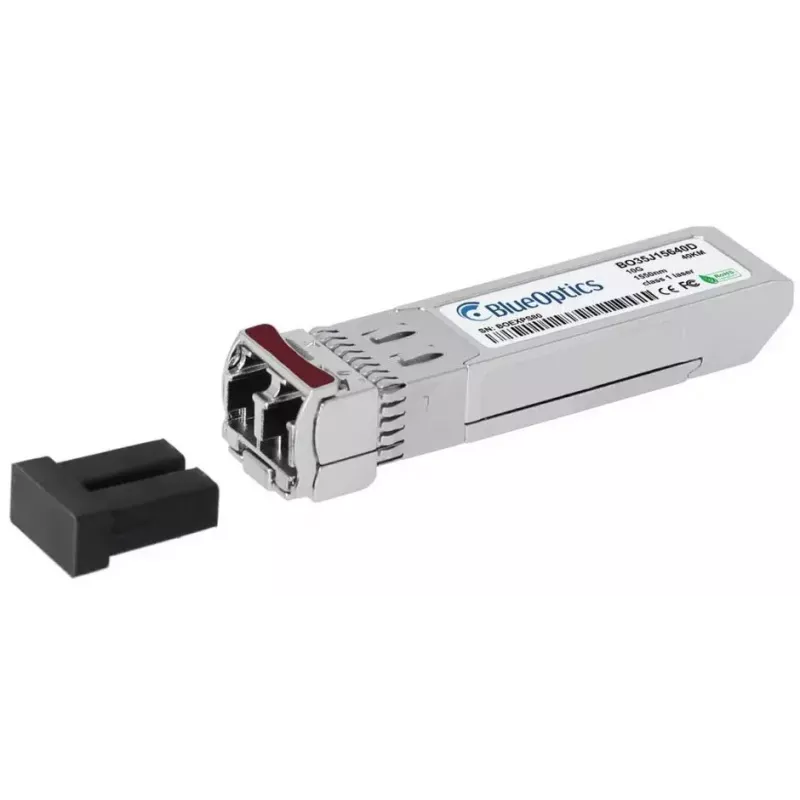

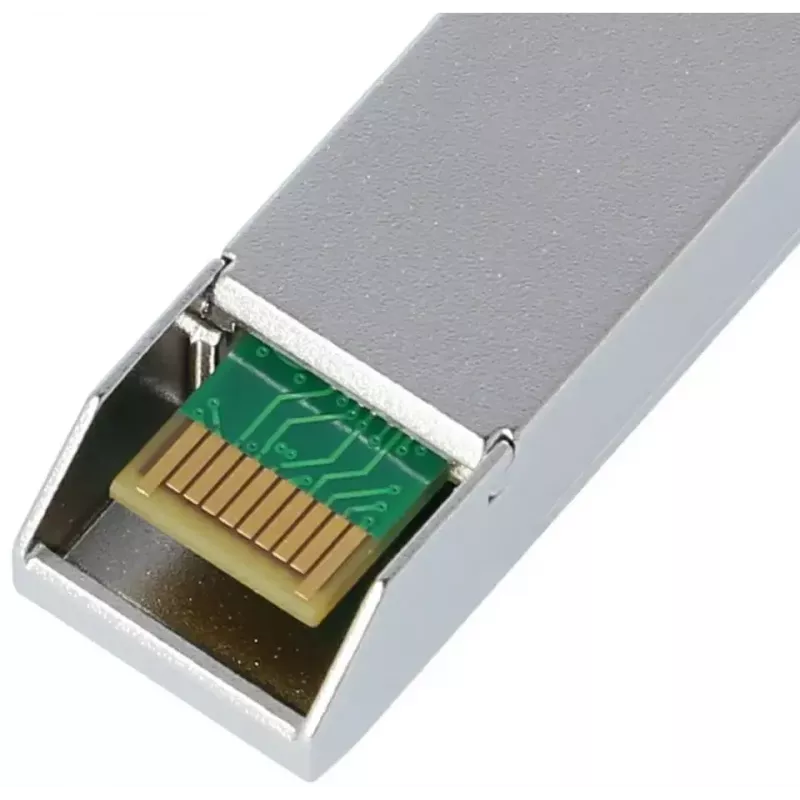

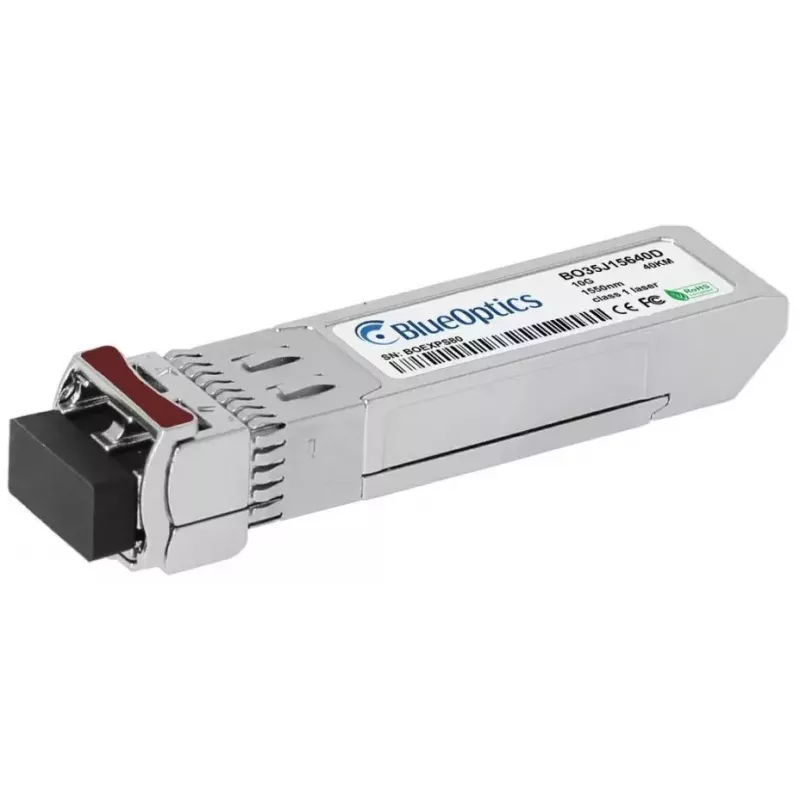

SFP+ transceiver modul BlueOptics SFPP-10GE-ER-IT-BO 10000 Mbit/s 1550 nm

The BlueOptics SFPP-10GE-ER-IT-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s data links over single-mode fiber. It operates at a nominal wavelength of 1550 nm, uses an LC duplex connector and is supplied with 3.3 V. Encased in a metal housing and weighing approximately 2 g, the module conforms to MSA SFP+ mechanical and electrical standards and is intended for long-reach optical connections up to multi-kilometre distances in compatible network equipment.

Advantages

This SFP+ module provides a standard 10GBASE-ER optical interface with a 1550 nm transmitter and receiver, enabling high-speed, low-latency links that are immune to electromagnetic interference. The compact metal housing and SFP+ form factor allow easy hot-plug installation in switches, routers and storage systems that accept SFP+ transceivers. Built to meet MSA specifications, the module is compatible with devices that support equivalent 10GBASE-ER SFP+ transceivers and includes support for digital diagnostics when the host platform provides the required interface.

Suitable for

Key specifications

How to use

Install the BlueOptics SFPP-10GE-ER-IT-BO by inserting the SFP+ module into a compatible SFP+ port on network equipment while the host is powered on or off, following the equipment manufacturer’s hot-plug guidance. Connect single-mode LC duplex patch cords to the module for transmit and receive paths, observing correct polarity. Ensure the host device supports 10GBASE-ER optics and, if required, enable or verify digital diagnostics (DDM/DOM) support in the system to monitor supply voltage, temperature, laser bias current and optical power levels.

Recommendations

For optimum performance, use single-mode fiber and quality LC duplex patch cords, verify compatibility with your network hardware and firmware, and confirm that the host platform supports the digital diagnostics features if monitoring is needed. Follow standard ESD precautions during handling and maintain clean connector endfaces to prevent signal loss.
