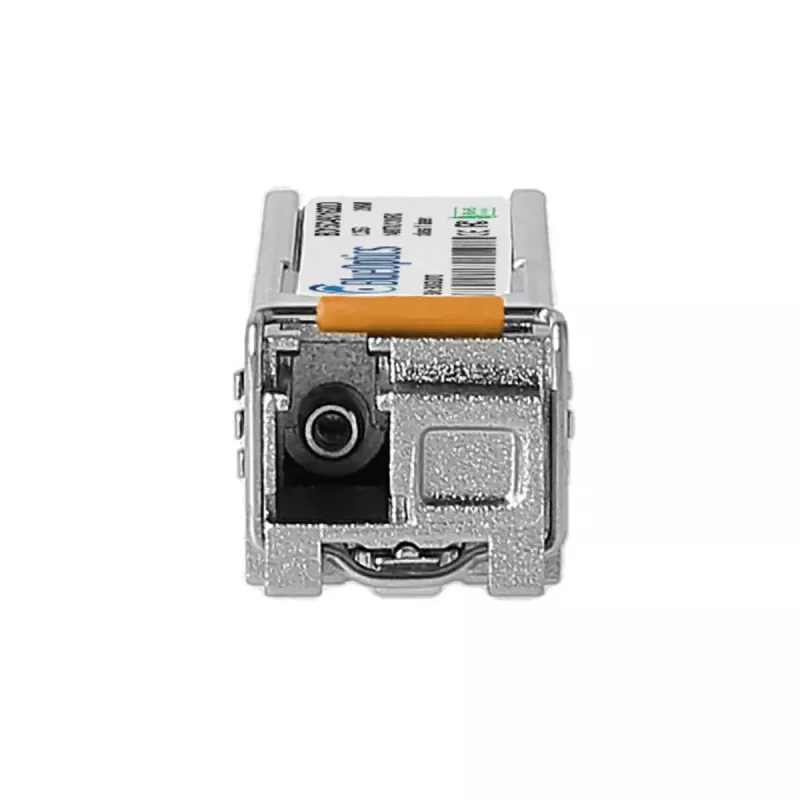

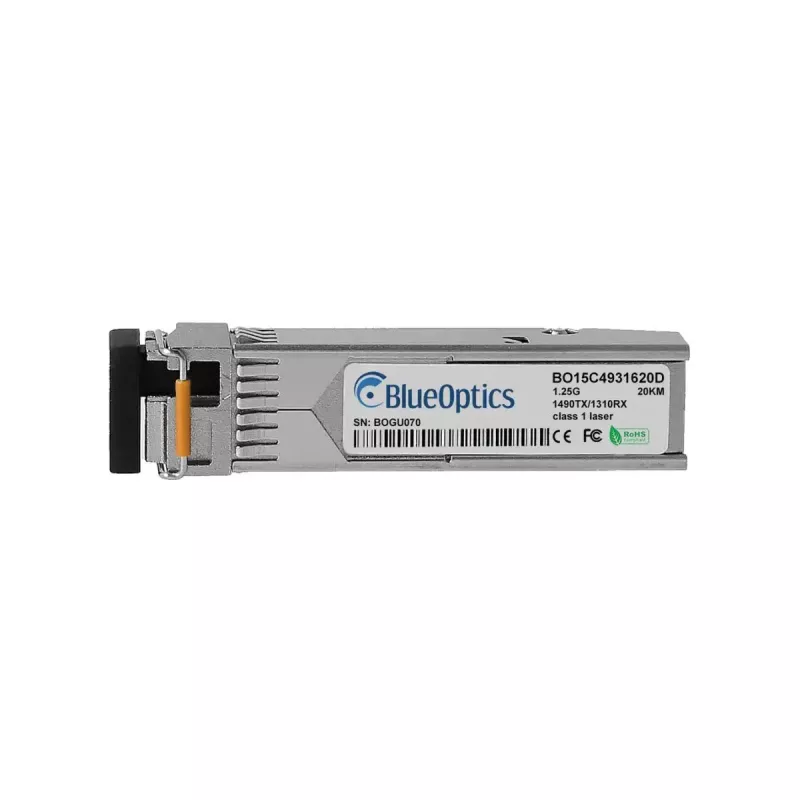

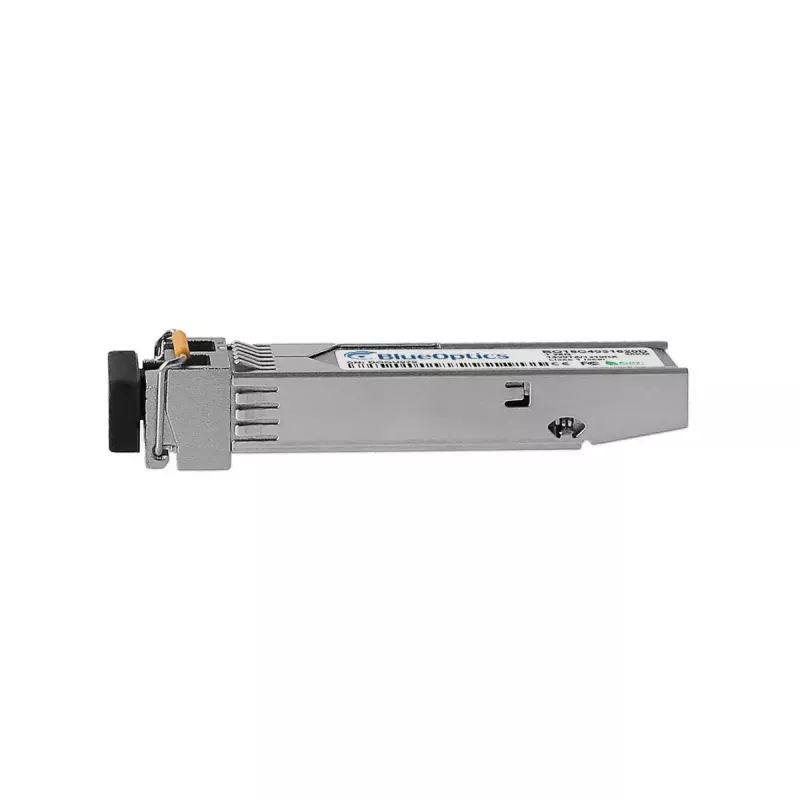

SFP transceiver modul BlueOptics TN-SFP-EBXD-BO 1250 Mbit/s

The BlueOptics TN-SFP-EBXD-BO is a single-port SFP transceiver module designed for single-mode fiber applications with a maximum data transfer rate of 1250 Mbit/s. The module has a metal housing, a silver finish and a lightweight design (approx. 20 g). It is compliant with SFP MSA form factor standards and provides long-term reliability with an MTBF of 1,000,000 hours, making it suitable for use in switches, routers and other network hardware that accept MSA-compliant SFP modules.

Advantages

This SFP transceiver delivers full-duplex optical transmission using separate transmit and receive wavelengths for up to 1.25 Gbit/s over single-mode fiber and uses an LC simplex connector for fibre coupling. The metal housing supports mechanical robustness and thermal dissipation, and the compact SFP form factor allows hot-plug installation in standard SFP ports. The long MTBF and industrial manufacturing standards provide predictable availability for network links.

Suitable for

• Gigabit Ethernet and related 1.25 Gbit/s optical uplinks
• Interconnects between switches, routers and access equipment over single-mode fiber
• Long-distance point-to-point links where single-mode LC simplex connections are required
• Environments requiring MSA-compliant, hot-pluggable SFP transceivers

Key specifications

• Interface type: SFP (MSA-compliant)
• Maximum data transfer rate: 1250 Mbit/s (1.25 Gbit/s)
• Fiber type: single-mode fiber (LC simplex connector)
• Transmit/receive wavelengths: separate TX and RX wavelengths for bidirectional operation
• Housing: metal, silver colour
• Weight: approximately 0.02 kg
• MTBF: 1,000,000 hours

How to use

Insert the BlueOptics TN-SFP-EBXD-BO into a compatible SFP port on your network device while the device is powered on or off according to the host equipment guidelines for hot-plugging. Connect a single-mode LC simplex patch cable between this transceiver and the remote transceiver or patch panel, observing correct TX↔RX polarity. Verify link status on the host device and configure network settings as required for the 1.25 Gbit/s interface. If the host supports digital diagnostics (DDM/DOM), enable or monitor diagnostic data through the management interface to observe parameters such as optical power and temperature.

Recommendations

Use certified single-mode LC simplex patch cords and ensure the host device supports the required SFP wavelengths and DDM/DOM functions if diagnostic monitoring is required. Keep connector endfaces clean and avoid bending the fiber beyond the recommended radius to maintain link quality and range.
