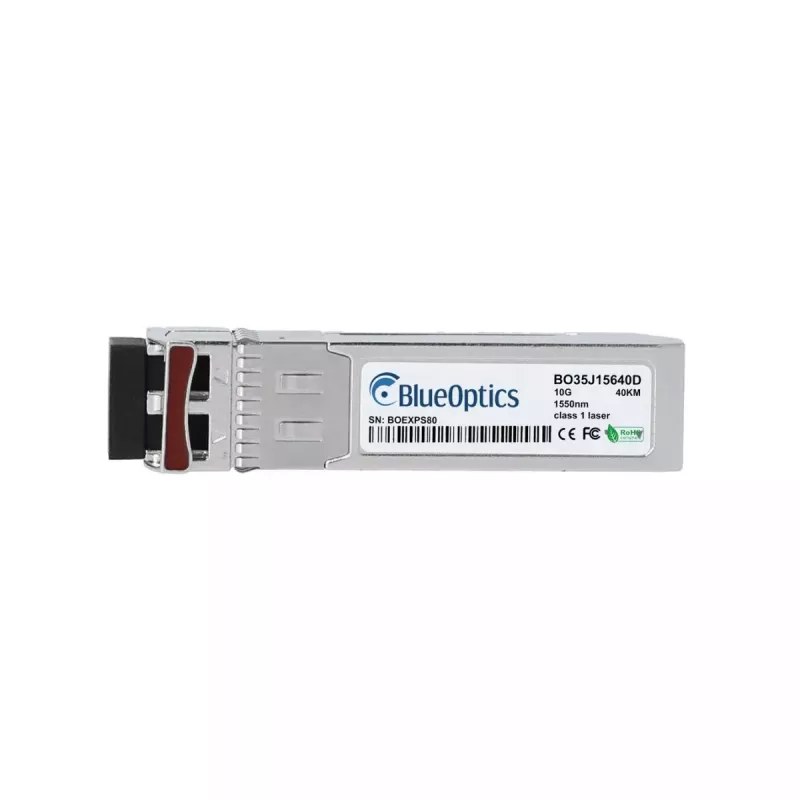

SFP+ transceiver modul BlueOptics TRX100114 10000 Mbit/s 1550 nm

The BlueOptics TRX100114 is an SFP+ fiber optic transceiver module engineered for 10 Gbit/s network links. Operating at a wavelength of 1550 nm, this compact module supports high-speed data transmission over single-mode fiber and is intended for use in networking equipment that accepts SFP+ form-factor optics. The module’s silver housing and 20 g weight make it easy to handle and install in servers, switches or optical line equipment where a 10 Gbit/s uplink or aggregation port is required.

Advantages

The transceiver provides a standardized SFP+ interface for straightforward hot-pluggable installation and compatibility with a wide range of SFP+ ports. With support for a 10000 Mbit/s transfer rate and operation at 1550 nm wavelength, it is suitable for long-reach single-mode fiber links. Its compact, lightweight metal housing ensures mechanical stability and thermal dissipation during continuous operation.

Suitable for

Key specifications

How to use

Ensure the host device supports SFP+ optics and that the port is compatible with 10 Gbit/s modules. Handle the module by its housing, avoiding contact with the optical connector ferrule. Insert the transceiver into the SFP+ slot until it latches, then connect the appropriate single-mode fiber cable with compatible LC connectors. Verify link status and configure the host interface as required by the networking equipment.

Recommendations

Use clean, certified single-mode fiber and inspect connectors before mating. Operate the module within the host equipment’s specified temperature range and avoid mechanical stress on fiber cables to maintain signal quality and prolong service life.
