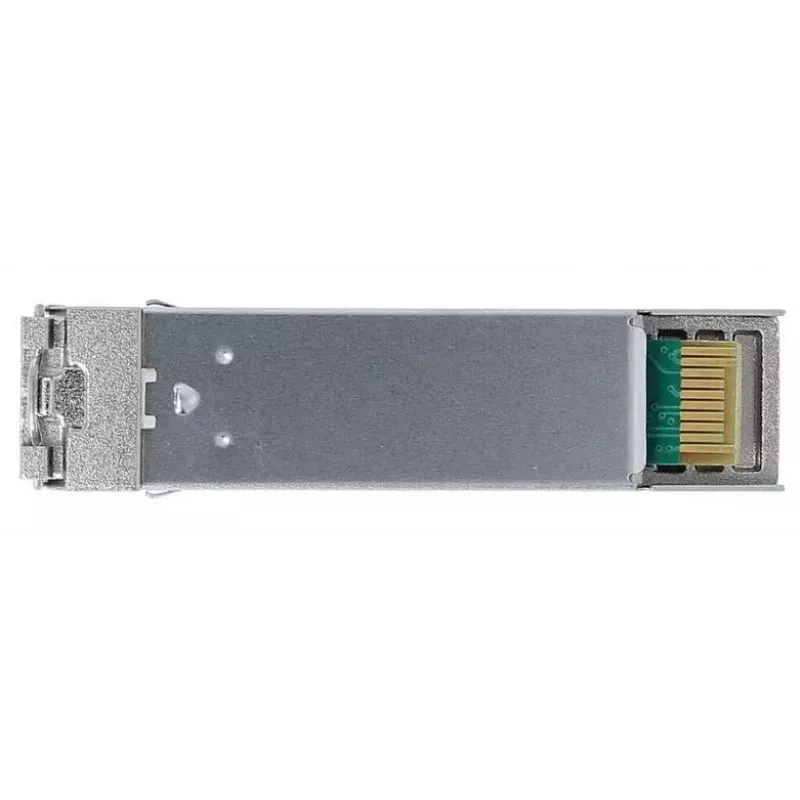

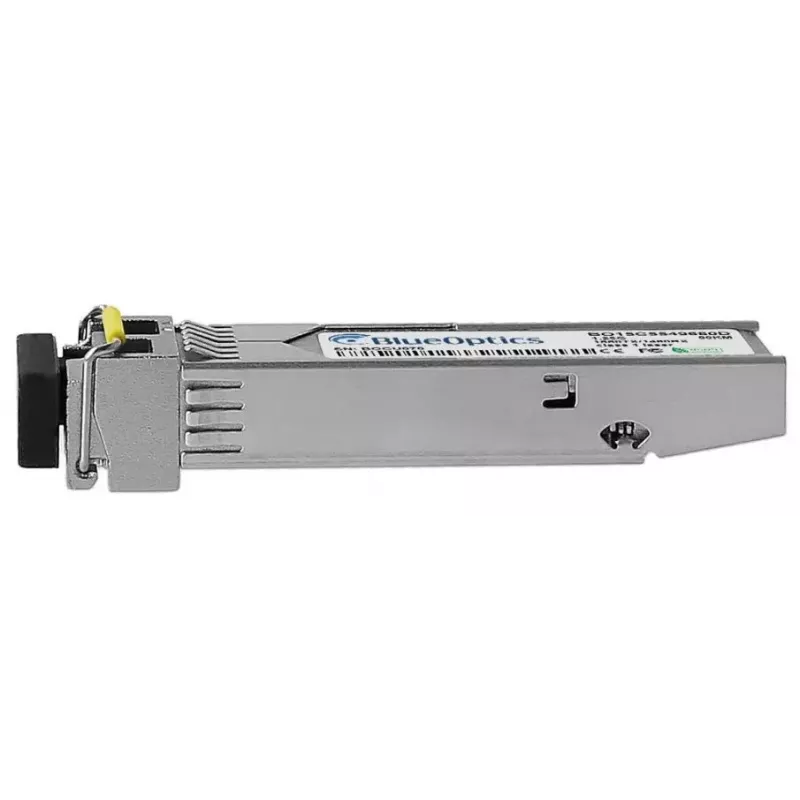

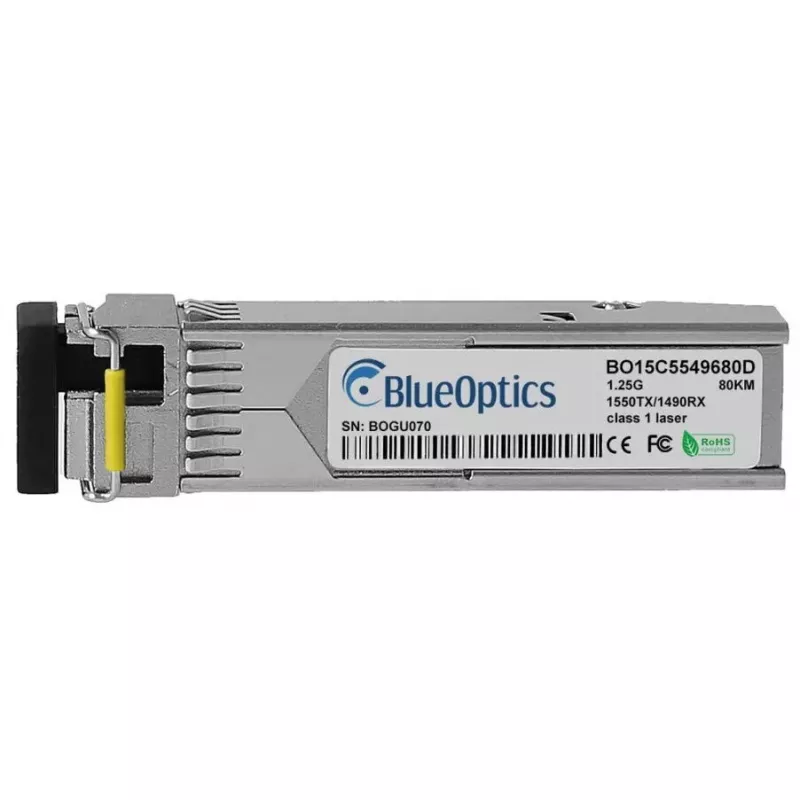

SFP transceiver modul BlueOptics V50017-U468.K500-BO 1250 Mbit/s 1550 nm

The BlueOptics V50017-U468.K500-BO SFP transceiver module is a single-mode fiber optic module designed for up to 1250 Mbit/s data transmission at a wavelength of 1550 nm. It uses the SFP form factor with an LC duplex optical connector and a silver housing. The module is CE, FCC and RoHS compliant and specifies a high MTBF for reliable long-term operation. It supports common high-speed protocols and is intended for use in network hardware that accepts MSA-compliant SFP transceivers.

Advantages

This SFP transceiver offers compatibility with equipment that supports MSA-standard 1000BASE-ZX modules, enabling long-reach single-mode links. With a rated data rate of 1250 Mbit/s and 1550 nm transmit/receive wavelength, the module is suitable for long-distance optical links with LC duplex connectors. The compact SFP form factor allows flexible hot-pluggable installation in switches, routers and storage systems. High MTBF and compliance with CE, FCC and RoHS standards indicate stable operation and adherence to regulatory requirements.

Suitable for

Key specifications

How to use

Install the module into an SFP-compliant slot on a switch, router or other network device while the device is powered on or according to the device vendor's hot-swap instructions. Connect LC duplex single-mode fiber patch cords to the transceiver's LC connector, ensuring correct transmit/receive orientation. Configure the network device to enable the corresponding interface and verify link status. If the host device supports digital diagnostics (DDM/DOM), use the management interface to monitor real-time parameters such as optical power and temperature.

Recommendations

To ensure reliable operation, use single-mode fiber and LC duplex patch cords specified for 1550 nm transmission, maintain clean connector endfaces, and verify that the host device supports MSA SFP modules and any required DDM/DOM functions. Observe manufacturer guidelines for insertion/removal and static-safe handling.
