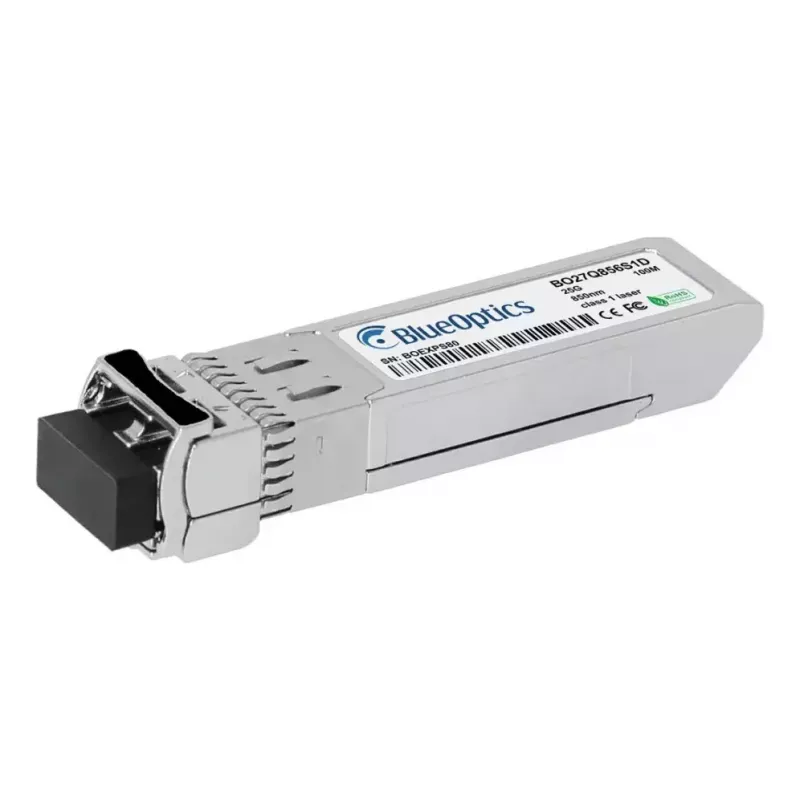

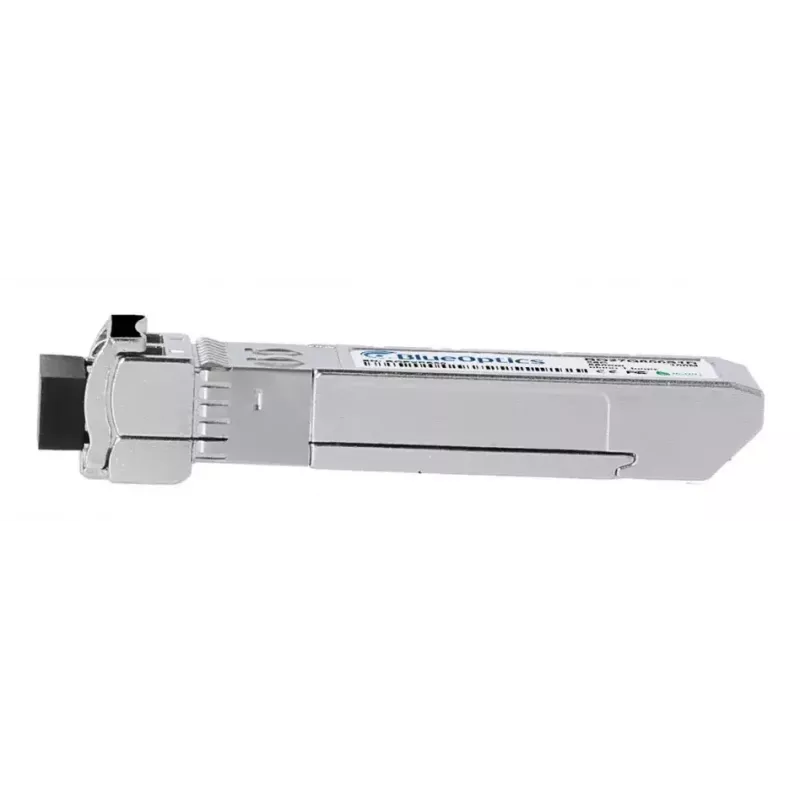

SFP28 transceiver modul BlueOptics 3HE12113AA-BO 25000 Mbit/s

The BlueOptics 3HE12113AA-BO is an SFP28 transceiver module designed for 25 Gbps fiber-optic links. This silver-form-factor module supports a maximum data transfer rate of 25000 Mbit/s and is intended for use in high-speed network equipment where compact pluggable optics are required. It meets CE, FCC and RoHS compliance requirements and is specified with a mean time between failures (MTBF) of 1,000,000 hours, indicating suitability for continuous operation in data center and enterprise environments.

Advantages

The SFP28 form factor provides a compact, hot-pluggable optical interface compatible with modern 25 G Ethernet ports. With a rated maximum throughput of 25000 Mbit/s and a high MTBF value, the module is suitable for bandwidth-demanding links while maintaining long-term operational reliability. The silver housing aids thermal dissipation and identifies the module visually for installation and inventory purposes. Compliance with CE, FCC and RoHS ensures adherence to common regulatory and environmental standards.

Suitable for

• 25 Gigabit Ethernet uplinks between switches and servers
• High-speed connections in data centers and server rooms
• Carrier access links and aggregation ports requiring SFP28 optics
• Replacement or expansion of existing SFP28-capable network equipment

Key specifications

• Interface type: SFP28
• Maximum data transfer rate: 25000 Mbit/s
• Form factor: SFP28, hot-pluggable
• Typical weight: 0.02 kg
• Product colour: Silver
• Operational reliability indicator: MTBF approximately 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Install the SFP28 transceiver into a compatible SFP28 slot on a switch, router or host adapter while the device is powered according to the equipment manufacturer's instructions. Once seated, connect the appropriate single-mode or multimode fiber patch cable and verify link status through the host device's management interface. Follow the network equipment vendor guidelines for enabling 25 Gbps interfaces and configuring link settings such as speed, duplex and any required port profiles.

Recommendations

For reliable operation, pair the transceiver with fiber cables and patch panels rated for 25 G links, ensure proper transceiver-fiber type matching (single-mode or multimode as required by the specific variant), and maintain adequate airflow around the module to prevent overheating. Observe ESD precautions during handling and confirm compatibility with the target device's supported optics list if the device enforces vendor checks.
