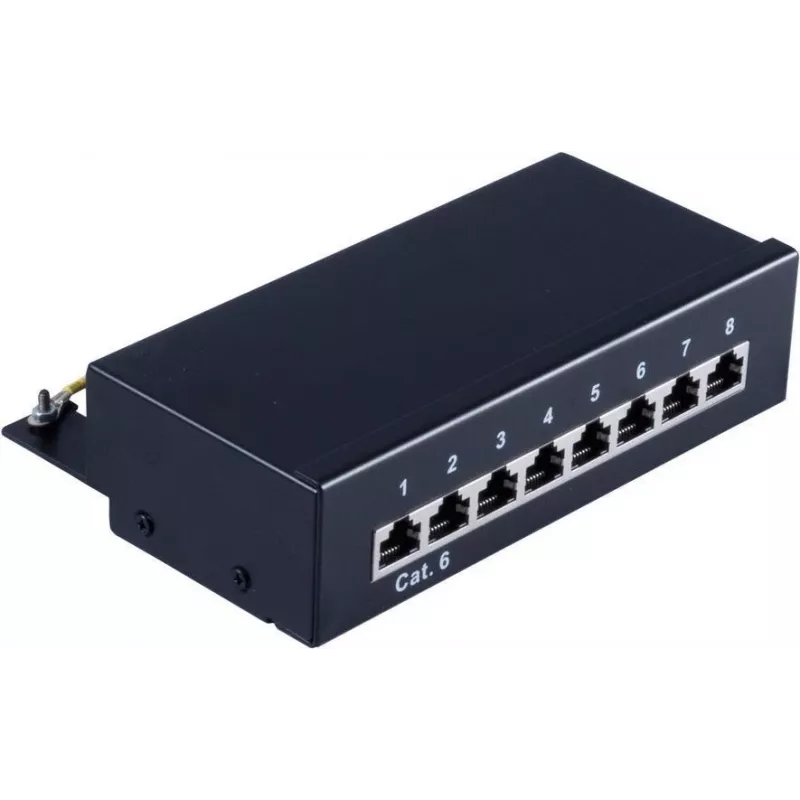

Patch panel S/CONN 75059

The ShiverPeaks Patch Panel S/CONN 75059 is a 19"-style networking panel designed to organize and centralize Ethernet terminations. Fitted with RJ45 ports and rated for Cat6 cabling, the unit provides structured connectivity for patching, testing and cable management in data closets, server racks and telecommunications cabinets. Its black finish supports a professional appearance while helping conceal dust and wear in operational environments.

Advantages

This patch panel offers consistent RJ45 terminations compatible with Cat6 cabling, enabling Gigabit Ethernet performance where cabling and network equipment meet the same specification. The compact, rack-compatible form factor reduces cable clutter and simplifies moves, adds and changes. Durable construction and a neutral black color deliver a long service life and seamless integration with standard rack equipment.

Suitable for

• Network rack and cabinet installations in offices and server rooms
• Structured cabling projects using Cat6 twisted-pair cable
• Patch and cross-connect panels for small to medium enterprise networks
• Telecommunication rooms, classroom networks and lab setups

Key specifications

• Connector type: RJ45
• Cable category support: Cat6
• Form factor: 19" rack-mount compatible panel
• Color: black
• Purpose: patching and cable termination for Ethernet networks

How to use

Mount the patch panel in a standard 19" rack or cabinet at a convenient height for cable routing. Terminate each incoming Cat6 cable onto the corresponding RJ45 jack following T568A or T568B wiring standards, ensuring proper pair alignment and solid terminations. Use suitable patch cords to connect equipment to the panel ports, and label ports as needed to keep the network organized. Perform continuity and performance testing after installation to verify correct terminations and expected data rates.

Recommendations

For optimal performance, pair the patch panel with Cat6-compliant cables and maintain proper cable bend radius and separation from electrical interference. Use consistent wiring standards across the installation and periodically inspect terminations for wear or damage to maintain reliable Ethernet connectivity.
