Patch panel S/CONN 75061 1U

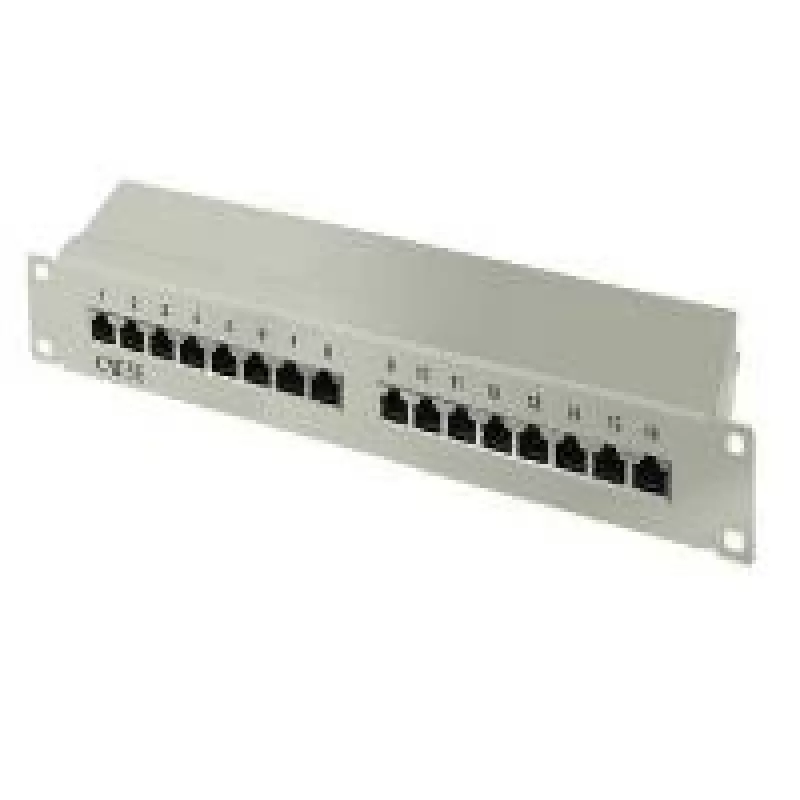

The ShiverPeaks Patch Panel S/CONN 75061 1U is a rack-mounted solution for organizing CAT5e network cabling in server rooms, wiring closets and small data centres. Designed to occupy a single rack unit, it provides multiple RJ-45 ports arranged for straightforward cable termination and patching. The panel’s grey finish and compact 1U form factor allow it to blend into structured cabling installations while keeping cable runs accessible and easy to manage.

Advantages

This 1U patch panel supports CAT5e performance and uses standard RJ-45 connectors for compatibility with common network patch cords and outlets. Its rack-mounted design simplifies cable routing and reduces clutter in the rack, improving accessibility for moves, adds and changes. The neutral grey housing offers a professional appearance and helps maintain a consistent look across installation environments.

Suitable for

• Small to medium office network racks
• Server rooms and telecommunication closets
• Patch and cross-connect panels for CAT5e structured cabling
• Environments requiring compact 1U cabling management

Key specifications

• Rack height: 1U
• Cable category: CAT5e
• Connector type: RJ-45 ports
• Mounting: Rack-mounted panel designed for standard 19-inch racks
• Finish: Grey

How to use

Install the patch panel in a standard 19-inch rack using the mounting holes provided, aligning it within a single rack unit space. Terminate each CAT5e cable onto the corresponding RJ-45 connector following T568A or T568B wiring standards as required by your network. Use labelled patch cords to connect the panel’s RJ-45 ports to switches, routers or other active equipment, and maintain clear labelling for each port to simplify troubleshooting and changes.

Recommendations

For reliable performance, use quality CAT5e cables and maintain proper bend radius at terminations. Keep patch cords and cable bundles organised with cable management accessories to reduce mechanical stress on connectors and preserve signal integrity.
