Patch Panel S/CONN 75078 19U

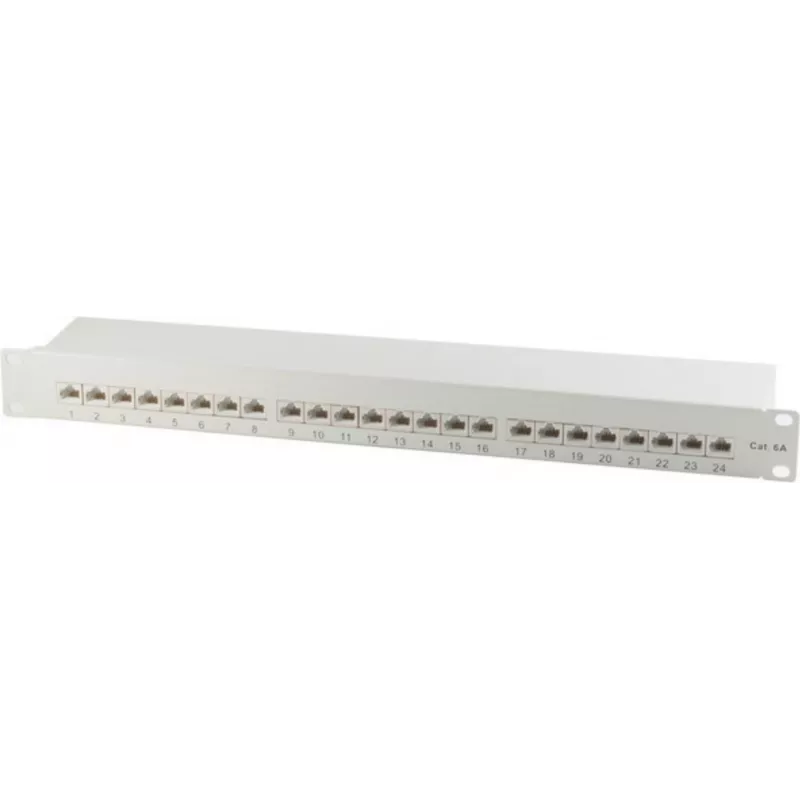

The ShiverPeaks Patch Panel S/CONN 75078 19U is a rack-mountable network panel designed to organize and centralize copper Ethernet terminations in a 19U server or telecommunications cabinet. It provides a compact way to terminate multiple RJ-45 connections and to route Cat6a cabling within equipment racks. The panel's grey metal housing and standard 482 mm rack width fit conventional 19-inch mounting rails while maintaining a shallow depth to reduce space usage behind mounted equipment.

Advantages

The patch panel supports Cat6a cabling and RJ-45 terminations, enabling high-speed Ethernet links and improved signal integrity for 10 Gigabit Ethernet applications where appropriate cabling and hardware are used. Its 19U rack compatibility and standardized 482 mm width simplify installation into typical server racks and cabinets. The compact depth and robust metal construction provide a stable mounting point, allow neat cable routing, and help protect terminations from accidental stress or damage.

Suitable for

• Network racks and server cabinets requiring structured copper patching
• Office LANs and data closets consolidating Cat6a connections
• Telecommunications rooms where space-efficient, rack-mounted terminations are needed
• Environments needing organized RJ-45 patching for switches and routers

Key specifications

• Form factor: 19-inch rack-mountable panel
• Rack unit height: 19U
• Connector type: RJ-45
• Cable category support: Cat6a
• Dimensions (W×H×D): 482 mm × 45 mm × 130 mm
• Color: grey
• Material: metal housing

How to use

Install the patch panel into the 19-inch rack using appropriate mounting screws and ensure it occupies the intended 19U vertical space. Terminate Cat6a cables to the RJ-45 keystone or punch-down points according to the T568A or T568B wiring standard chosen for your network. Label each port clearly to match corresponding switch, router, or outlet connections. Route and secure cables using horizontal and vertical management to reduce stress on terminated connectors and to maintain signal performance.

Recommendations

When deploying the patch panel, use certified Cat6a cabling and maintain recommended bend radii to preserve performance for high-speed Ethernet. Verify wiring continuity and pair integrity with a cable tester after termination. Reserve sufficient rack space for cable management and future expansion to avoid congestion behind the panel.
