Shuttle adaptérová doska pre WLAN kartu pre Edge-PC EN01J3/EN01J4 rozhrania/karty adaptéry interné M.2

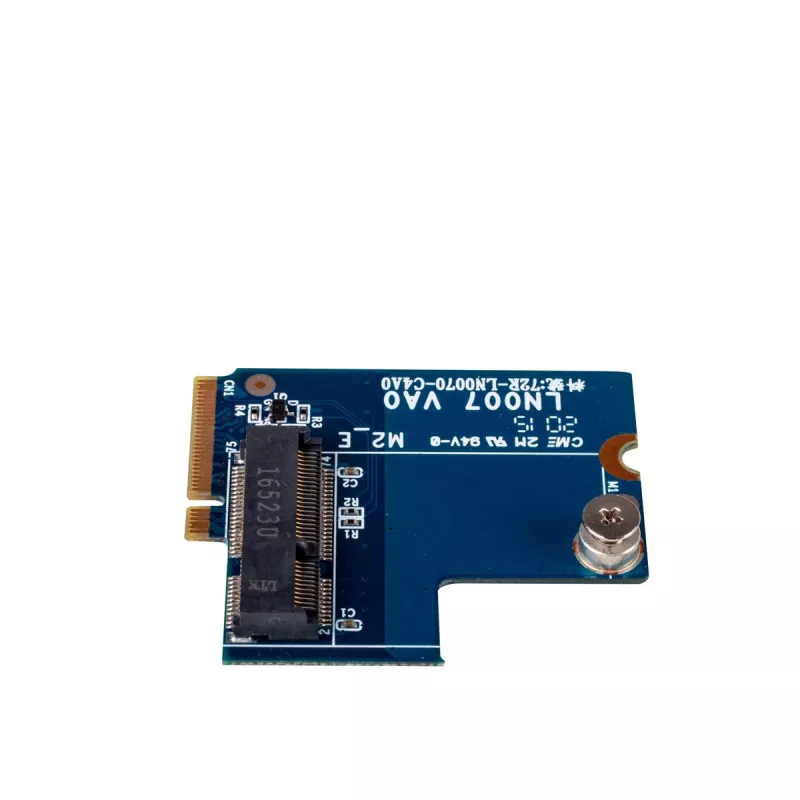

The Shuttle Adapter board for WLAN card (PUN-LN007) enables WLAN functionality in Shuttle Edge PCs of the EN01 series by converting the system's M.2 slot to the required WLAN card format. It is a passive-cooled adapter intended for use with Shuttle WLAN kits such as WLN-M and is compatible with Shuttle Edge models EN01J3, EN01J4, EN01E and EN01B.

Advantages

The adapter provides a simple, board-level conversion from an M.2 host interface to a WLAN card connector, allowing integration of PCIe/USB-based wireless modules without requiring changes to the mainboard. Its passive cooling design requires no additional fans, and the single-unit form factor simplifies installation in compact Shuttle Edge systems.

Suitable for

Key specifications

How to use

Install the adapter into the EN01 series M.2 slot following Shuttle's hardware instructions, then mount the compatible WLAN card onto the adapter and secure any antenna connections from the WLAN kit. Ensure the system is powered off and grounded before installation. After physical installation, power on the PC and install the required drivers for the WLAN module according to the module or Shuttle WLN-M kit documentation.

Recommendations

Use the Shuttle Adapter board together with the Shuttle WLN-M WLAN kit or with WLAN modules specified as compatible by Shuttle. Verify model compatibility with EN01J3/EN01J4/EN01E/EN01B before purchase and follow Shuttle’s installation guidance to maintain system reliability.
