Shuttle DIR 01 montážna sada na DIN lištu pre XPC slim sériu

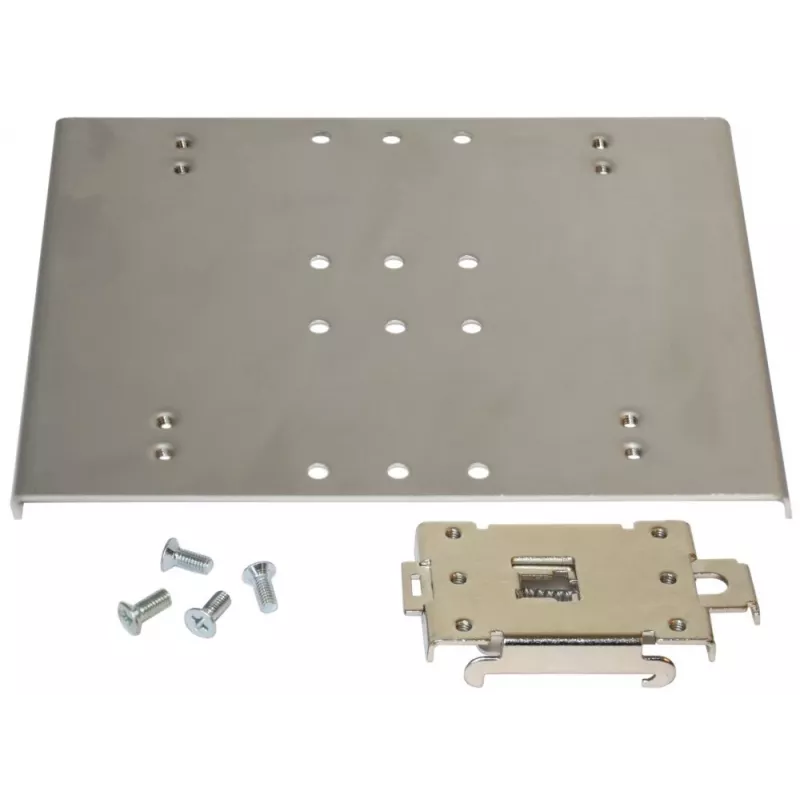

A DIN-Rail is a metal rail widely used for mounting electronic control equipment inside equipment racks. The Shuttle DIR 01 DIN-Rail Mounting Kit adapts 1-litre XPC slim barebones to a standard 35 mm DIN-Rail, providing a compact solution for industrial and commercial installations. The kit is grey, manufactured for compatibility with Shuttle XPC slim models and is intended to secure the barebone chassis to rail systems while keeping access to ports and connectors.

Advantages

The Shuttle DIR 01 offers a slim profile (164 mm width, 134 mm depth, 7 mm height) that minimises space usage on DIN-Rail installations. It is compatible with a range of Shuttle XPC slim models, ensuring straightforward integration without modifying the chassis. Constructed for reliable mounting on a 35 mm rail, the kit provides stable retention and easy installation and removal when service access is needed.

Suitable for

• Mounting Shuttle XPC slim barebones on standard 35 mm DIN-Rails
• Industrial control cabinets and automation racks
• Edge computing and compact server installations
• Environments where space-efficient, secure mounting is required

Key specifications

• Model: DIR01
• Compatibility: Shuttle XPC slim series (e.g., DX30(V2), DL10J, DL20N(6) and similar models)
• DIN-Rail type: 35 mm standard
• Dimensions: 164 mm (W) x 134 mm (D) x 7 mm (H)
• Colour: Grey
• Brand: SHUTTLE
• MPN: DIR01
• EAN: 4046047103447
• Country of origin: China

How to use

Attach the Shuttle DIR 01 mounting kit to the rear of the XPC slim barebone according to the included alignment points, then clip the assembly onto a standard 35 mm DIN-Rail. Ensure the barebone is oriented so that ventilation and I/O access remain unobstructed. For removal, unclip the unit from the rail and detach the kit from the chassis following the reverse steps.

Recommendations

Verify compatibility with your specific Shuttle XPC slim model before installation. If a 100 x 100 mm VESA mount is required, acquire it separately as it may not be included with the kit. Follow local safety and grounding practices when installing devices inside electrical cabinets.
