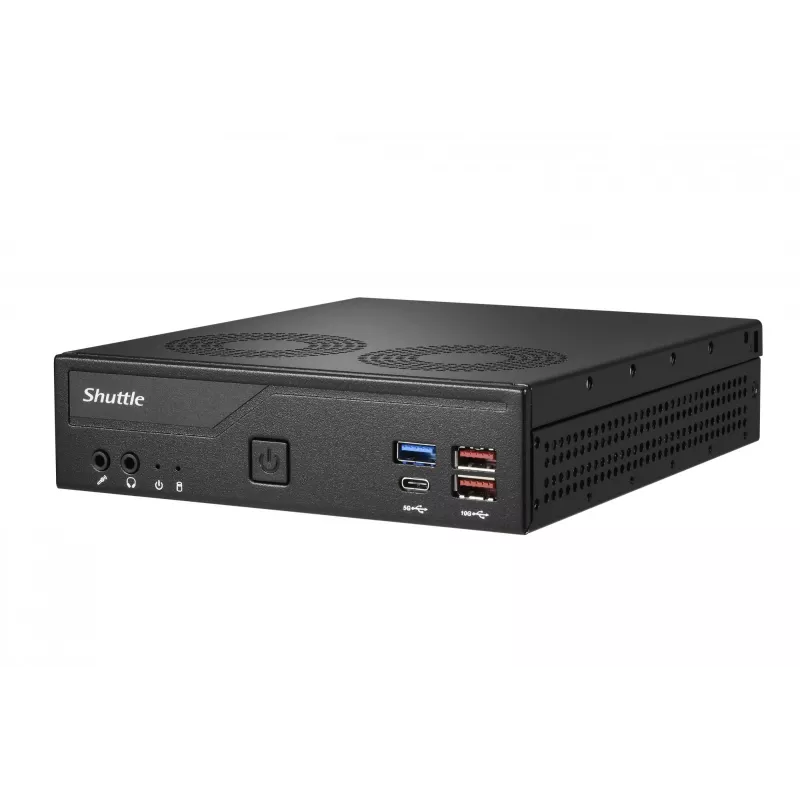

Shuttle Slim PC DH770, S1700, 2x HDMI, 2x DP, 2x 2.5G LAN, 2x COM, 8x USB, 1x 2,5", 2x M.2, 24/7 nepretržitá prevádzka, vrát. VESA

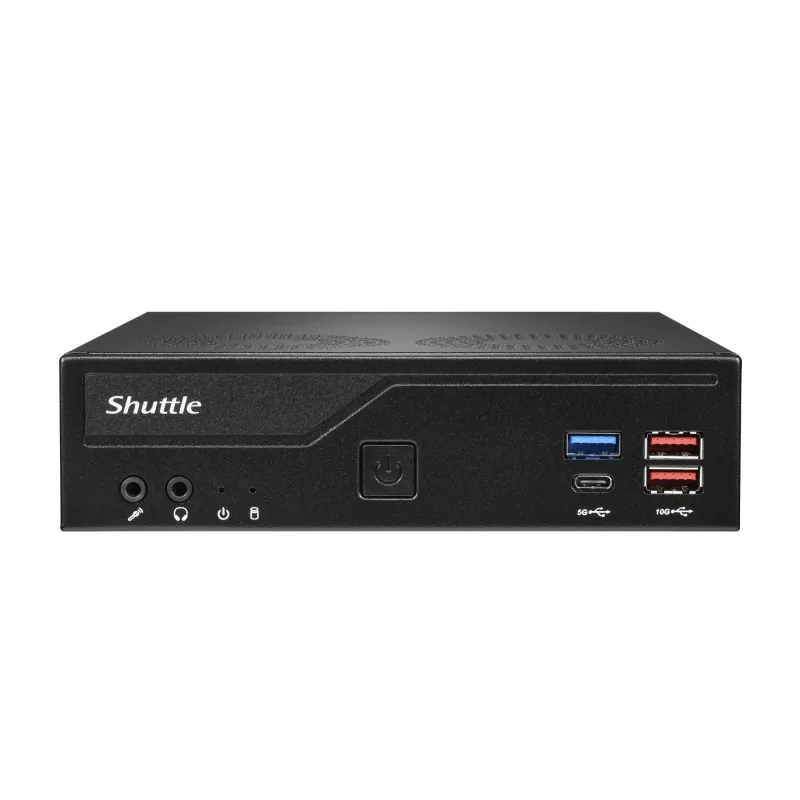

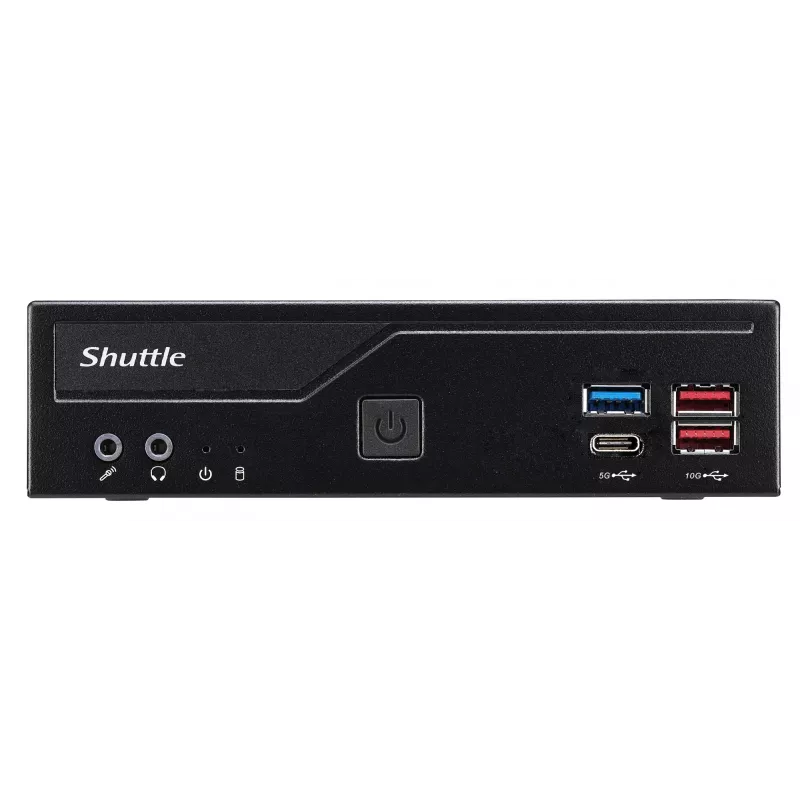

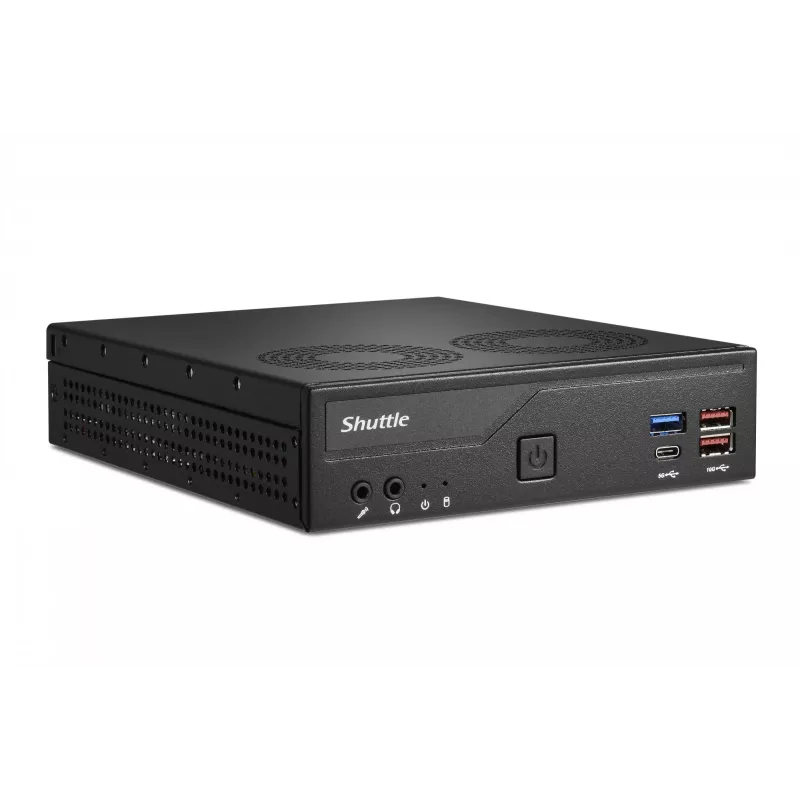

The Shuttle Slim DH770 is a 1.3-litre mini PC barebone powered by the Intel H770 chipset and an LGA1700 socket. It supports Intel 12th, 13th and 14th generation Core desktop processors and up to 64 GB DDR5 memory across two SO-DIMM slots. The compact metal chassis includes active cooling, a VESA mount and is rated for reliable operation in ambient temperatures up to 50 °C. The system provides multiple display outputs and a wide range of ports for professional and continuous-use environments.

Advantages

The DH770 supports four simultaneous Ultra HD displays via 2x HDMI and 2x DisplayPort, and offers dual Intel 2.5G LAN for high-throughput network connectivity. It includes multiple high-speed USB ports (including USB 3.2 Gen 2), COM ports and flexible storage options with two M.2 slots and one 2.5" drive bay. The slim metal design with VESA mounting and active cooling enables reliable 24/7 operation in compact installations.

Suitable for

• Digital signage and information displays
• Point of sale (POS) and point of information (POI) systems
• Office workstations and thin-client deployments
• Healthcare terminals and industrial control
• Gambling and kiosk machines

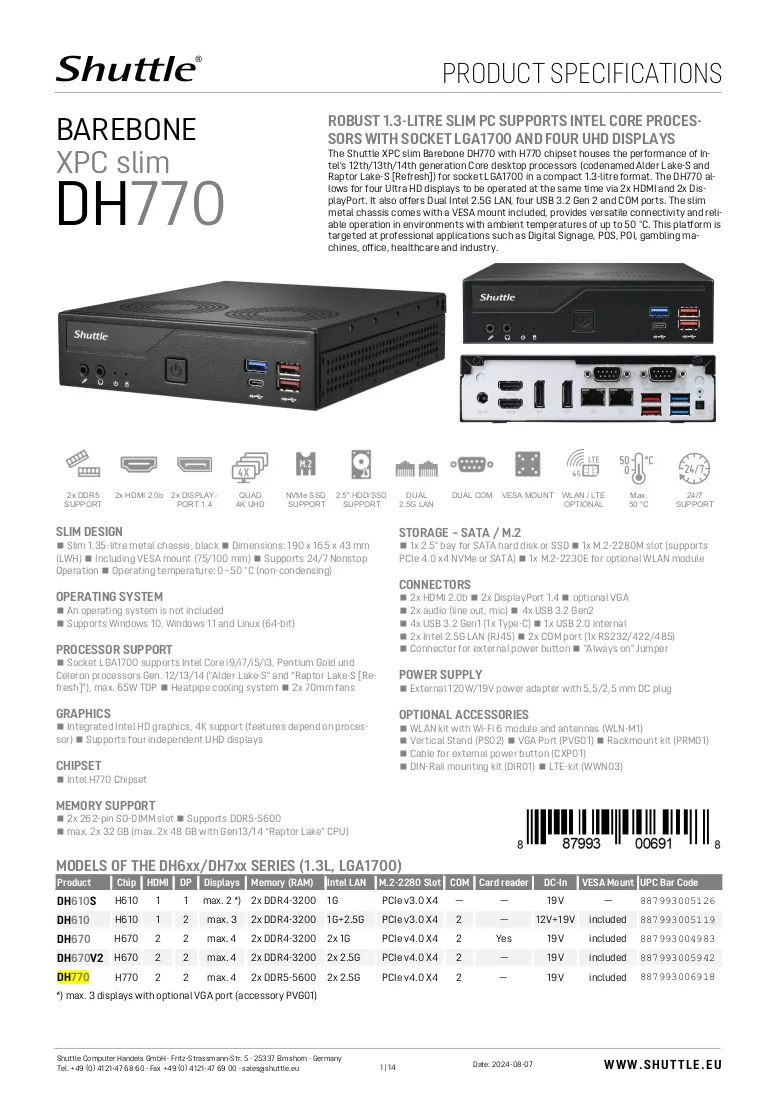

Key specifications

• Form factor: 1.3-litre slim barebone
• Chipset / Socket: Intel H770 / LGA1700
• Processor support: Intel 12th, 13th, 14th Gen Core (LGA1700)
• Memory: up to 64 GB DDR5 (2 slots)

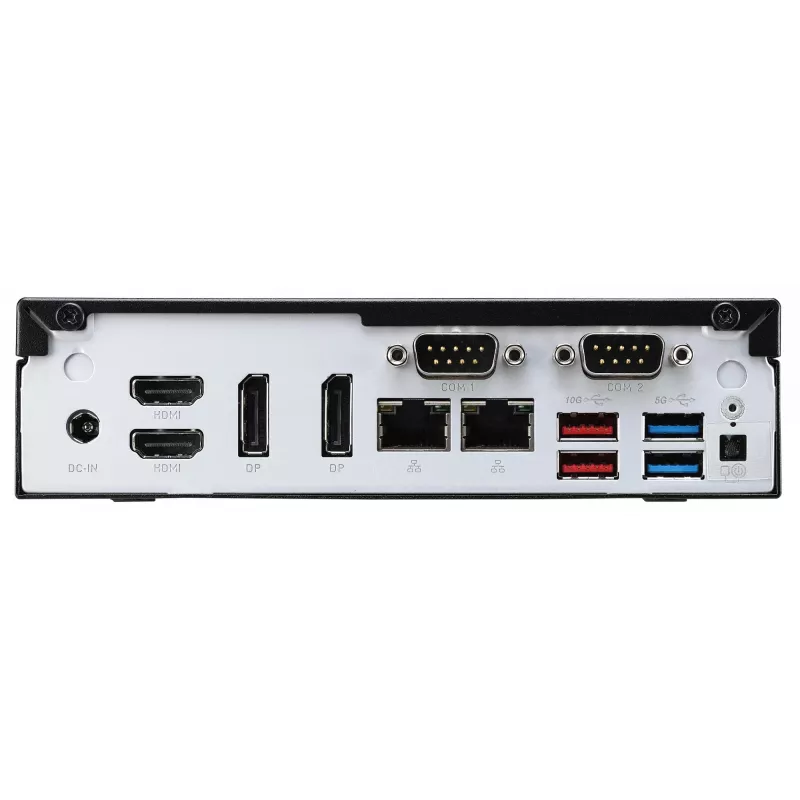

• Graphics outputs: 2x HDMI, 2x DisplayPort (supports four UHD displays)
• Network: Dual Intel 2.5G LAN
• Storage: 2x M.2 slots + 1x 2.5" drive bay
• USB: up to 8 ports including USB 3.2 Gen 2
• Other: COM ports, VESA mount included
• Operating ambient temperature: up to 50 °C
• Weight and colour: 1.3 kg, black

How to use

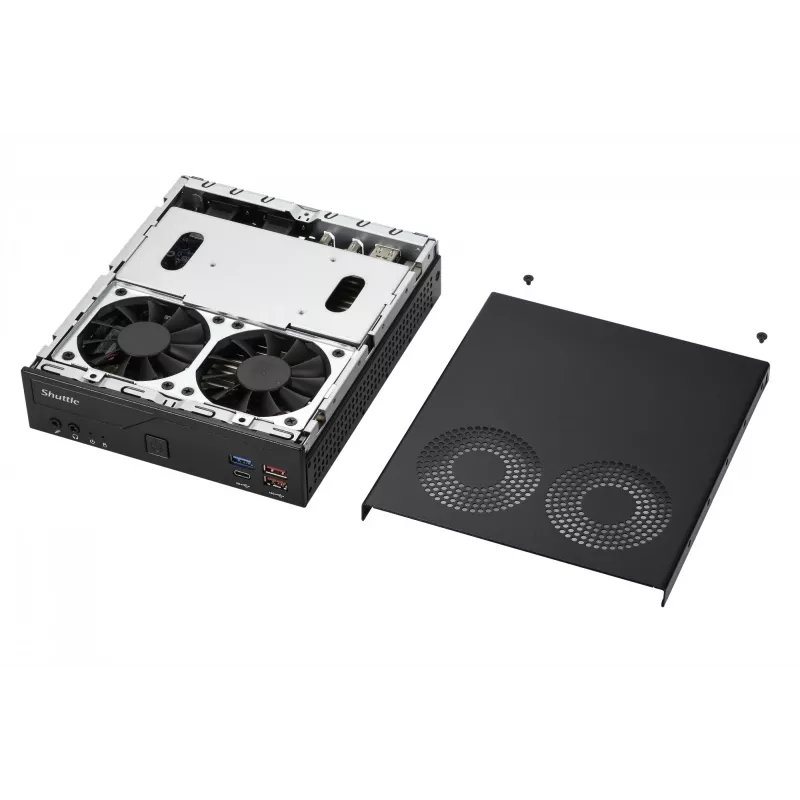

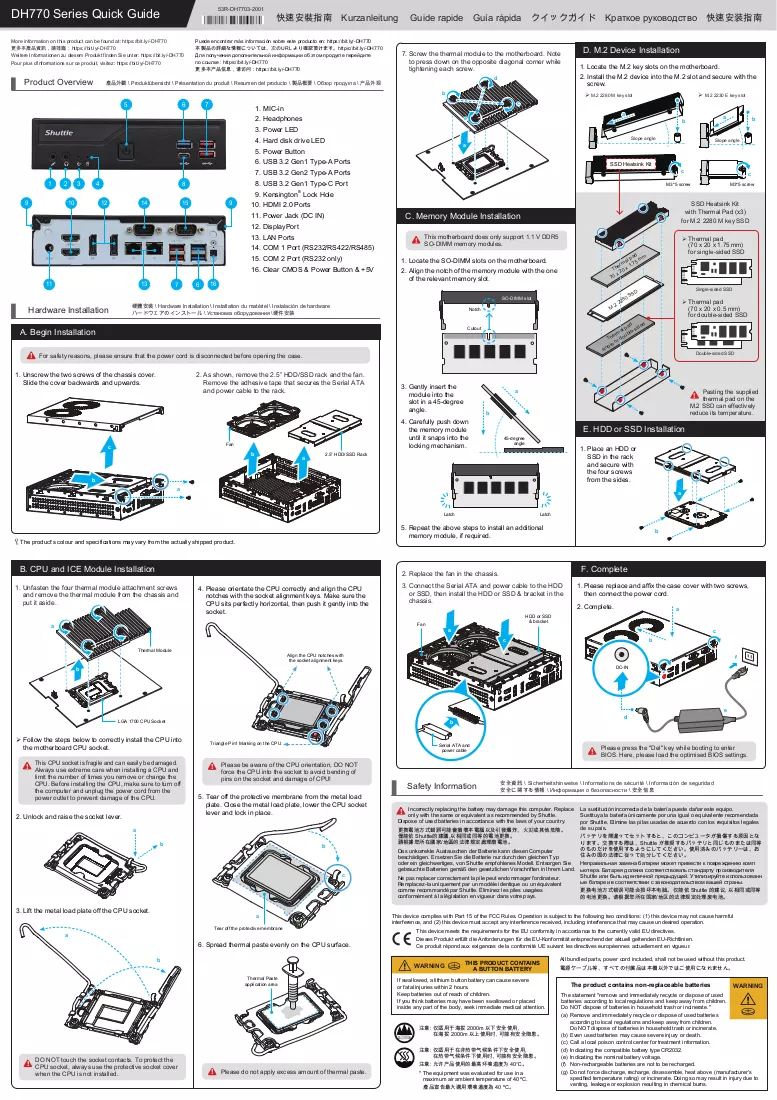

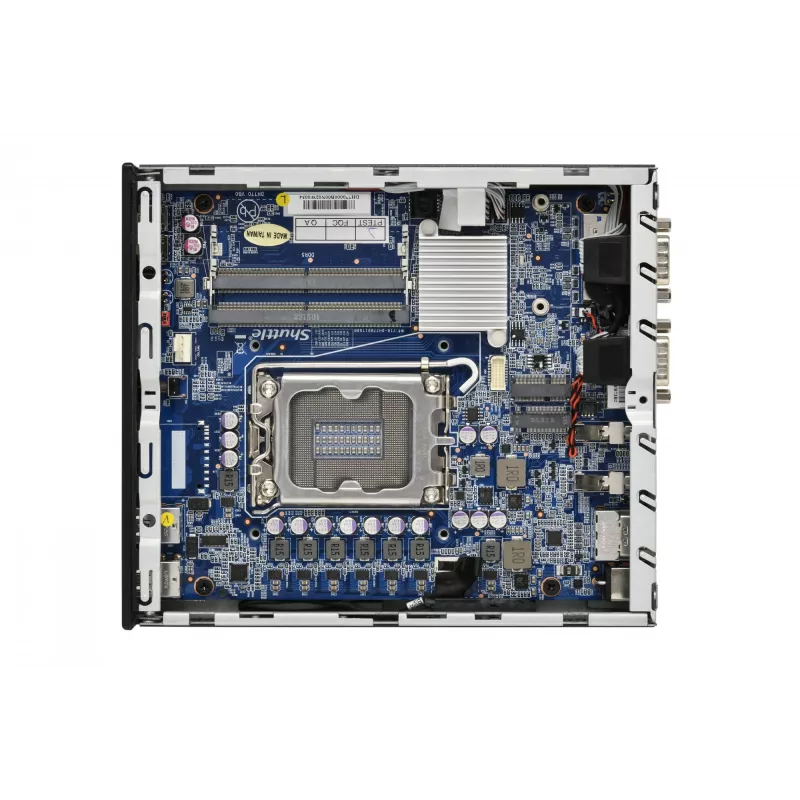

Install a compatible LGA1700 Intel Core processor, insert up to two DDR5 SO-DIMM modules and populate storage with M.2 drives and/or a 2.5" SSD/HDD. Connect displays to the HDMI and DisplayPort outputs and configure multi-monitor settings in the operating system. Attach the included VESA mount to install the unit behind a display or on a wall. Ensure the unit has adequate airflow and use the provided active cooling for continuous operation.

Recommendations

For stable long-term operation, use quality DDR5 memory and enterprise-grade SSDs, keep firmware and drivers up to date, and maintain ambient temperatures below 50 °C. When deploying multiple displays or running network-intensive applications, verify cable and network infrastructure to utilise the dual 2.5G LAN capability.
