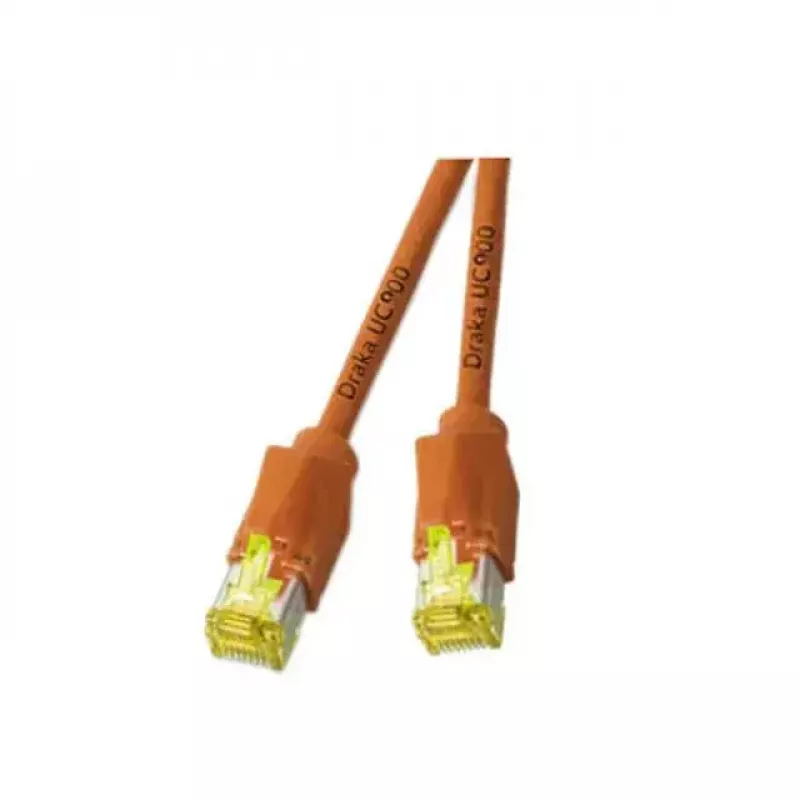

Sieťový kábel EFB Elektronik K8560OR.1,5 RJ-45 Cat6a 1,5 m oranžový

The EFB Elektronik K8560OR.1,5 is a 1.5 m orange Cat6a networking cable with RJ‑45 connectors, designed for 10GBase‑T networks. It uses S/FTP construction with pairwise foil and overall braid shielding and meets Cat6a performance up to 500 MHz for reliable high‑speed data transmission. The connectors are shielded Hirose TM31 RJ45 plugs with TIA/EIA 568B wiring and a mounted strain relief boot with latch protection.

Advantages

The S/FTP 4x2 AWG27/7 PiMF LSZH cable offers strong protection against electromagnetic interference and crosstalk, supporting Gigabit and 10 Gigabit Ethernet applications. The halogen‑free, low‑smoke, flame‑retardant construction (IEC 60332‑1, IEC 60754‑2, IEC 61034) improves safety in confined spaces. Shielded, IEC 60603‑7‑51 compliant Hirose TM31 RJ45 plugs and 568B coding ensure standardized termination and reliable connections.

Suitable for

• 10GBase‑T network links in data centers and server rooms
• High‑speed connections between switches, routers and networked devices
• Environments requiring low smoke and halogen‑free cabling

Key specifications

• Cable length: 1.5 m
• Standard: Cat6a, up to 500 MHz
• Data rate: up to 10 000 Mbit/s (10GBase‑T)
• Construction: S/FTP 4 x 2 x AWG27/7 PiMF, Ø = 5.9 mm
• Connectors: 2 x Hirose TM31 RJ45 plug, shielded, IEC 60603‑7‑51
• Wiring: TIA/EIA 568B
• Fire and emissions: IEC 60332‑1 (flame retardant), IEC 60754‑2 (halogen‑free), IEC 61034 (low smoke)
• Colour: Orange

How to use

Connect each RJ‑45 plug to the corresponding network ports on devices or patch panels following TIA/EIA 568B wiring. Ensure the cable is routed without sharp bends and avoid kinking; the mounted strain relief boot with latch protection helps secure the plug in the jack. Use the cable for standard patching between switches, routers, servers and wall outlets in network racks or workstations.

Recommendations

For optimal performance, maintain proper bend radius (avoid bends tighter than the cable diameter), minimize exposure to strong EMI sources where possible, and install in accordance with building and safety codes for LSZH cabling.
