Sieťový patch kábel Lanview LVN122433 – Cat6, netienený, dĺžka neuvedená

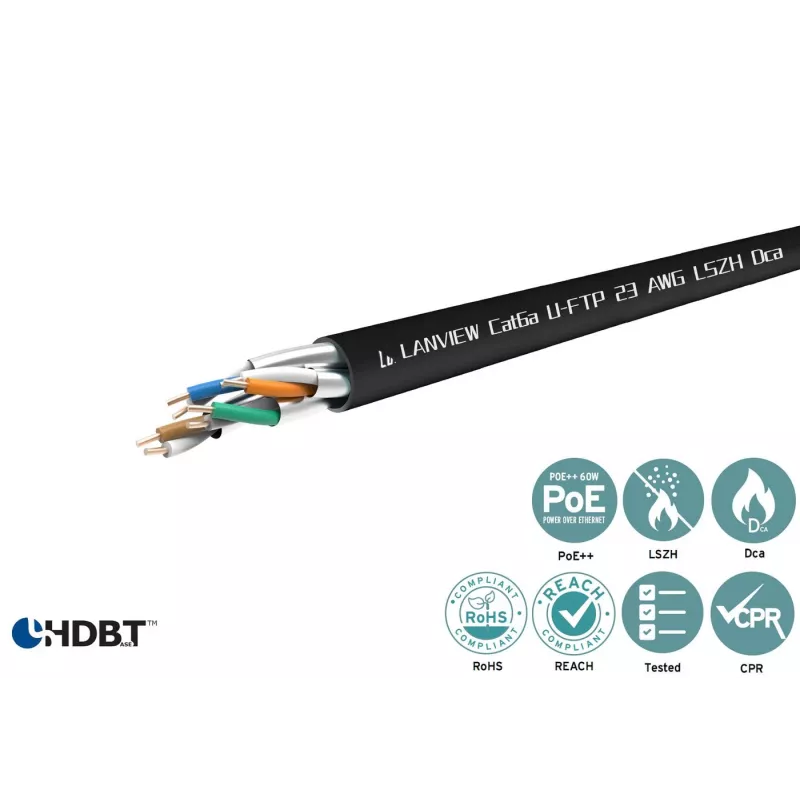

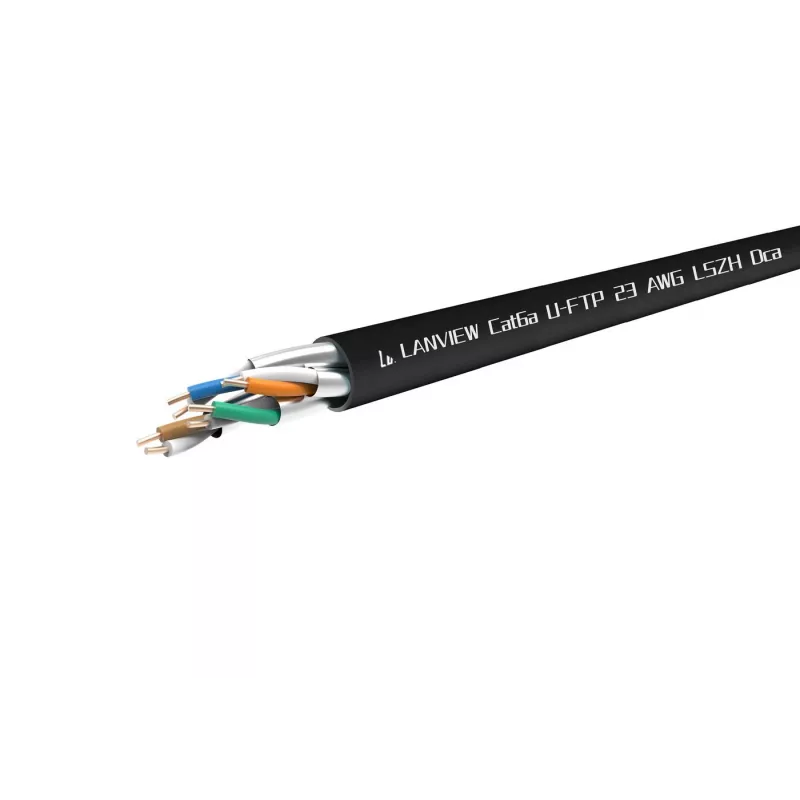

Lanview Cat6a U-FTP LSZH cable is designed for high-speed structured cabling and complies with ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable contains four pairs of PE-insulated, color-coded conductors and is suitable for installations that require high data throughput. The cable is HDBaseT-approved, enabling the transmission of full HD, 2K and 4K uncompressed video, audio, 100BaseT Ethernet, power and control signals over a single Cat6A run.

Advantages

The cable construction with U-FTP shielding and PE-insulated conductors provides improved resistance to external interference, making it appropriate for electrically noisy environments and confined cable routes. LSZH outer sheath reduces harmful smoke and corrosive gas emissions in case of fire. Meter markings on the sheath facilitate installation and measurement, while solid 23 AWG copper conductors and a 74% NVP ensure consistent signal performance for demanding network and AV applications.

Suitable for

• High-speed Ethernet and gigabit network backbones
• HDBaseT AV distribution including full HD, 2K and 4K video
• Environments with significant electromagnetic interference
• Tight cable ducts and confined routing spaces

Key specifications

• Cable category: Cat6A
• Conductor type: 23 AWG solid copper
• Pair insulation: PE (color-coded pairs)
• Shielding: U-FTP (overall unshielded with individually foiled pairs)
• Outer sheath: LSZH (low smoke zero halogen), color: black
• Nominal velocity of propagation (NVP): 74%
• Meter marking on sheath for installation
• Fire performance class: Dca-s1, d2, a1
• Approved for HDBaseT transmission

How to use

Strip the outer sheath and prepare pairs according to the connector or keystone jack manufacturer’s wiring diagram, following the required T568A or T568B termination standard. Ensure correct pair twist preservation and maintain recommended bend radius during installation. Use compatible RJ45 connectors or patch panels rated for Cat6A to terminate the cable and test each link with a qualified cable tester to verify performance before commissioning.

Recommendations

Install in accordance with local building and fire codes; avoid running close and parallel to high-voltage power lines for extended distances to minimize potential interference. Use appropriate cable management and strain relief and verify HDBaseT device compatibility for full AV and power transmission over Cat6A.
