Sieťový transceiver modul BlueOptics S26361-F5294-L114-BO 40000 Mbit/s QSFP

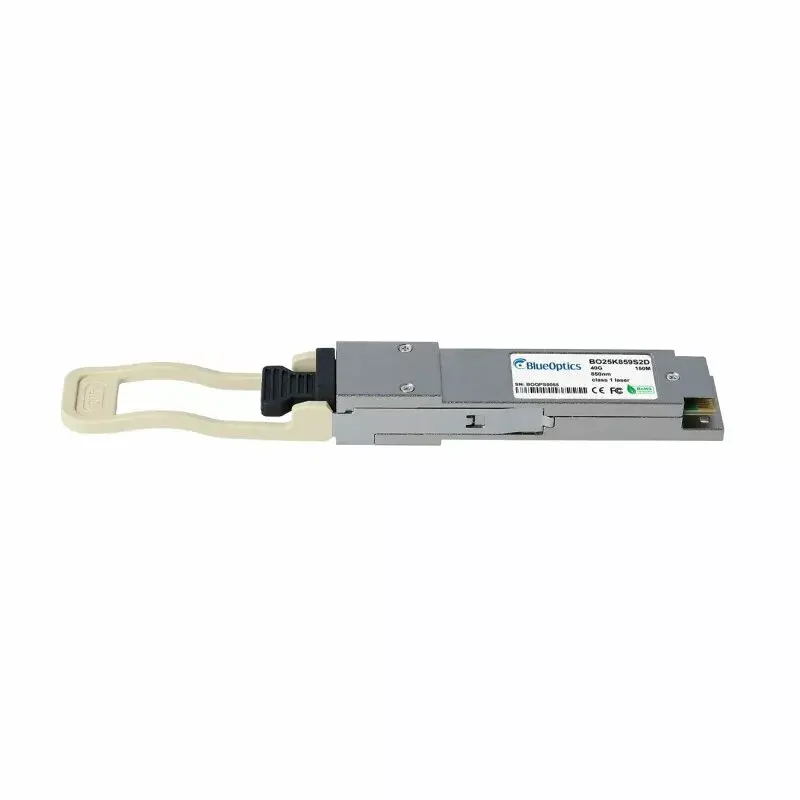

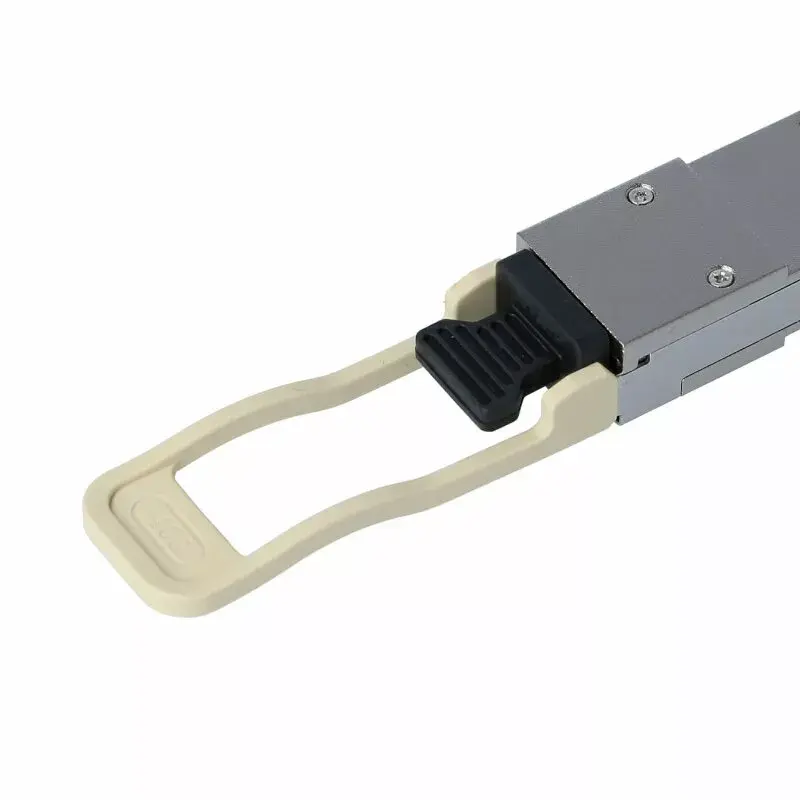

The BlueOptics S26361-F5294-L114-BO is a pluggable QSFP network transceiver designed for 40 Gbit/s multimode fiber networks. It operates at a wavelength of 850 nm, supports the IEEE 40GBASE-SR4 standard and is intended for use with MPO/MTP multimode fiber patch cables. The module is supplied in a silver housing, has a compact, hot-pluggable QSFP form factor and a reported mean time between failures (MTBF) of 3,000,000 hours, meeting common regulatory standards including CE, FCC and RoHS.

Advantages

The transceiver delivers a high data transfer rate of 40,000 Mbit/s in a compact QSFP package suitable for high-density installations. Operating at 850 nm and compliant with 40GBASE-SR4, it supports short-reach multimode links up to approximately 150 meters when used with appropriate MPO/MTP multimode cabling. The product’s long MTBF and regulatory compliances provide predictable operational reliability and safety in data center and enterprise deployments.

Suitable for

Key specifications

How to use

Install the QSFP transceiver into a compatible QSFP port on the network device while the device is powered according to the vendor’s hot-plug instructions. Connect an MPO/MTP multimode fiber patch cable between the module and the corresponding MPO/MTP breakout or trunk. Verify that the network device firmware supports the use of compatible BlueOptics QSFP modules in the specific Fujitsu Brocade hardware model by consulting the device datasheet or vendor compatibility list. After insertion and cable connection, check link status and diagnostics via the switch or host interface.

Recommendations

Use multimode OM3/OM4 fiber for optimal reach and performance with 40GBASE-SR4 links, follow the transceiver and switch vendor guidelines for ESD protection and hot-plugging procedures, and confirm compatibility with your Fujitsu Brocade device before deployment to avoid interoperability issues.
