Skalovací videokonvertor Schwaiger HDMRCA01 513

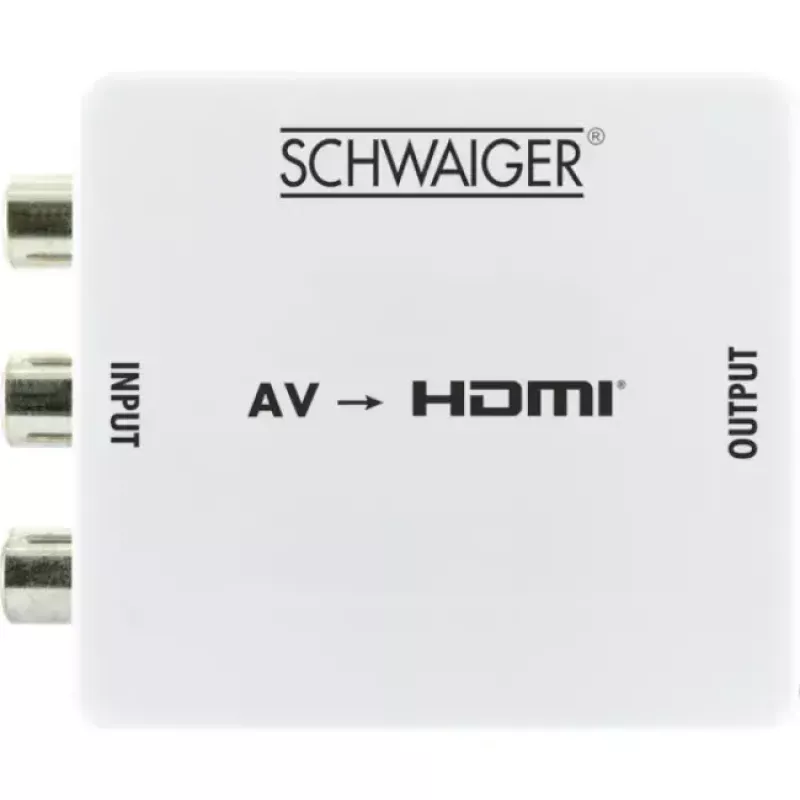

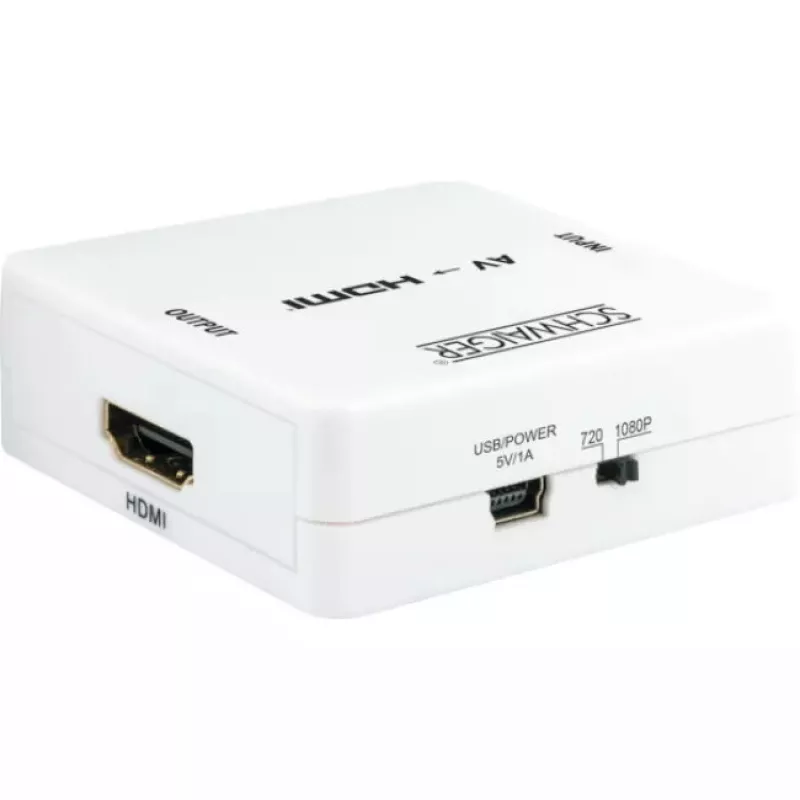

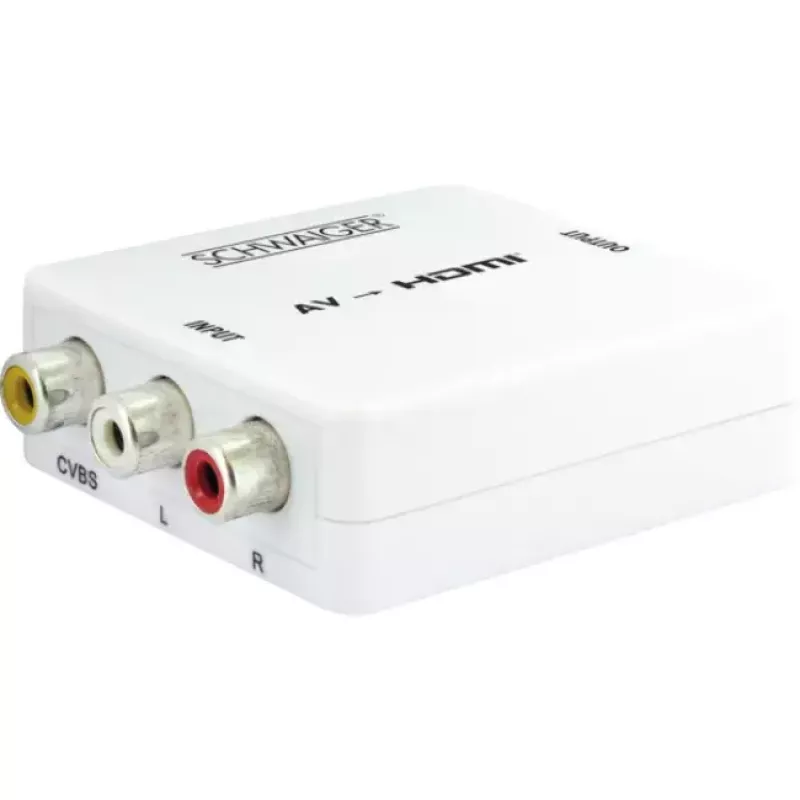

The Schwaiger HDMRCA01 513 scaler video converter converts analogue composite video and stereo audio signals to an HDMI digital output, allowing playback devices with 3 RCA (Cinch) connectors—such as older DVD players, game consoles or camcorders—to be connected to modern HDTVs and monitors. The compact adapter supports up to 1920 x 1080 resolution and accepts NTSC and PAL analogue formats, enabling continued use of legacy AV equipment with contemporary displays.

Advantages

The converter provides simple one-way conversion from AV composite (3 x RCA) to HDMI, supports common video modes including 720p and 1080p, and scales analogue input to a digital HDMI output. Its small white housing and low weight make it easy to place near existing equipment. It operates from a 5 V / 1 A supply and is compatible with typical display resolutions for reliable connection between analogue sources and HDMI displays.

Suitable for

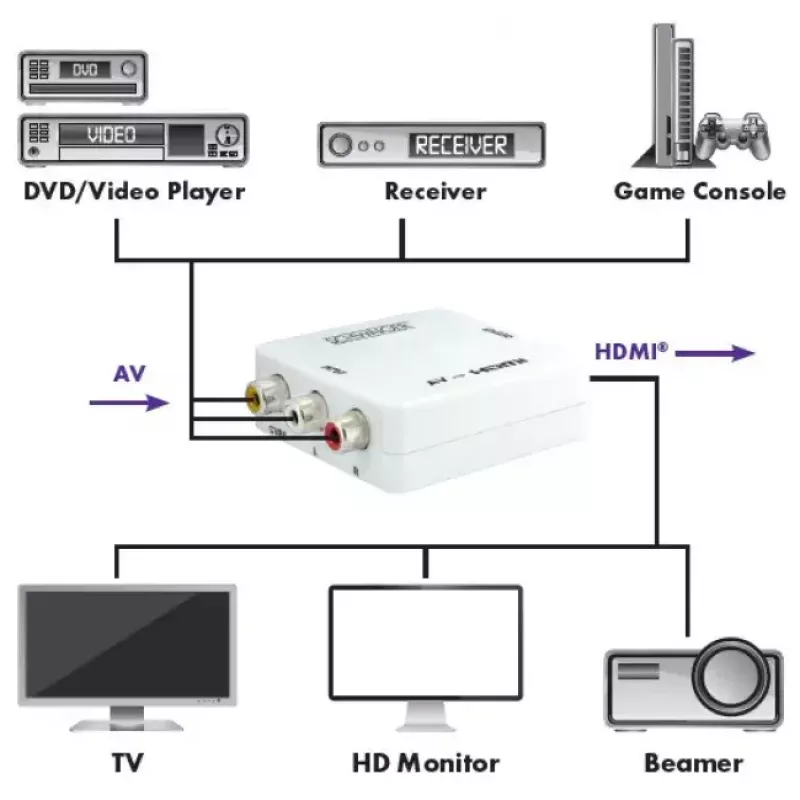

• Connecting DVD players with composite AV output to HDMI TVs or monitors
• Using older game consoles (composite output) with modern displays
• Playing back camcorder or VCR footage on HDMI-capable screens
• Small setups that require a compact analogue-to-HDMI converter

Key specifications

• Brand: SCHWAIGER

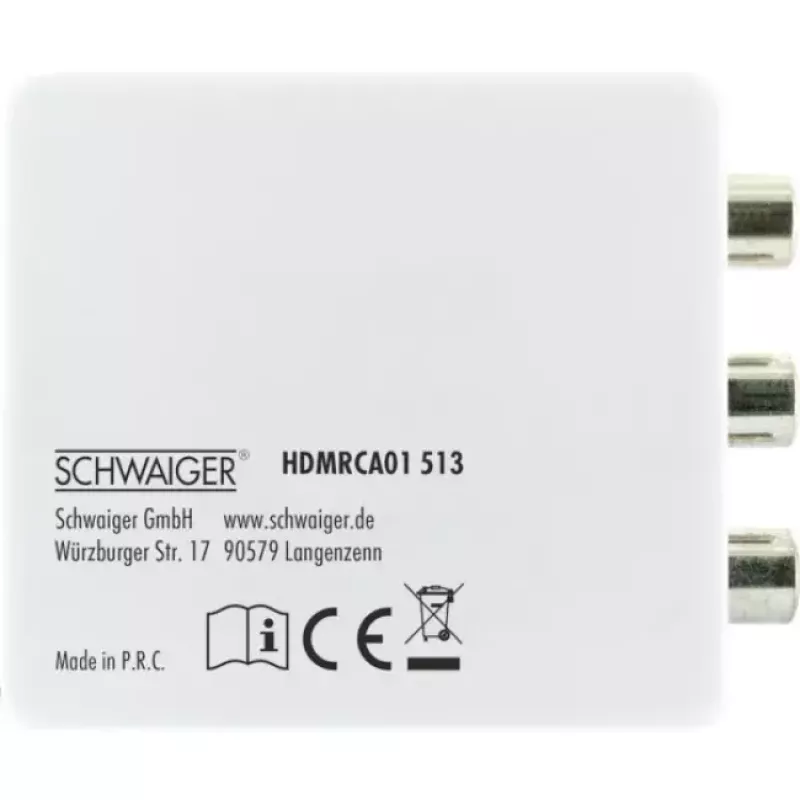

• Model: HDMRCA01 513 (MPN: HDMRCA01513)
• Input: 3 x RCA (composite video + stereo audio)

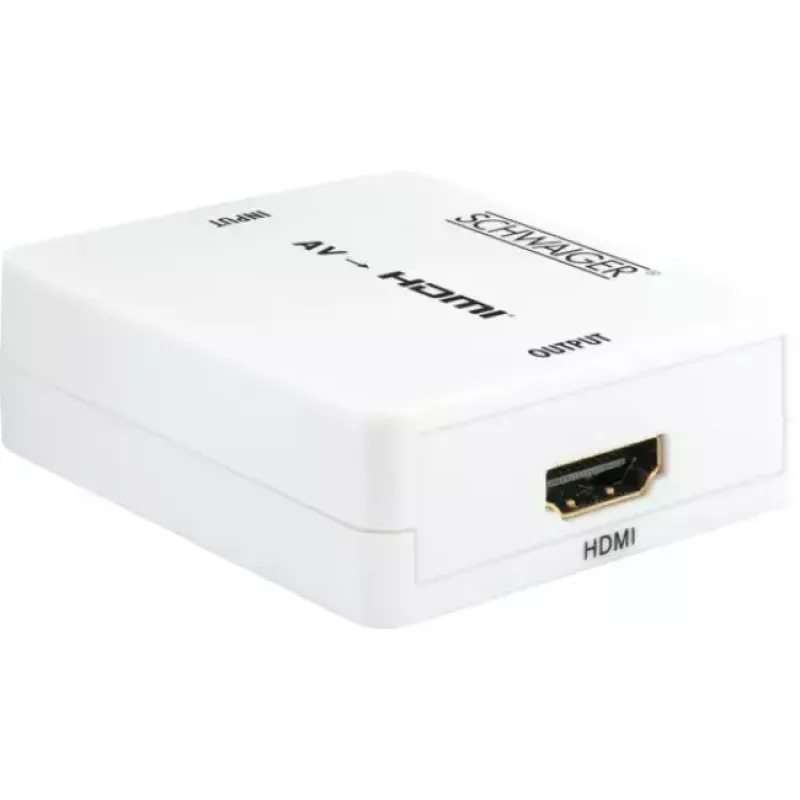

• Output: HDMI (supports up to 1920 x 1080 pixels)
• Supported formats: NTSC, PAL; video modes include 720p and 1080p

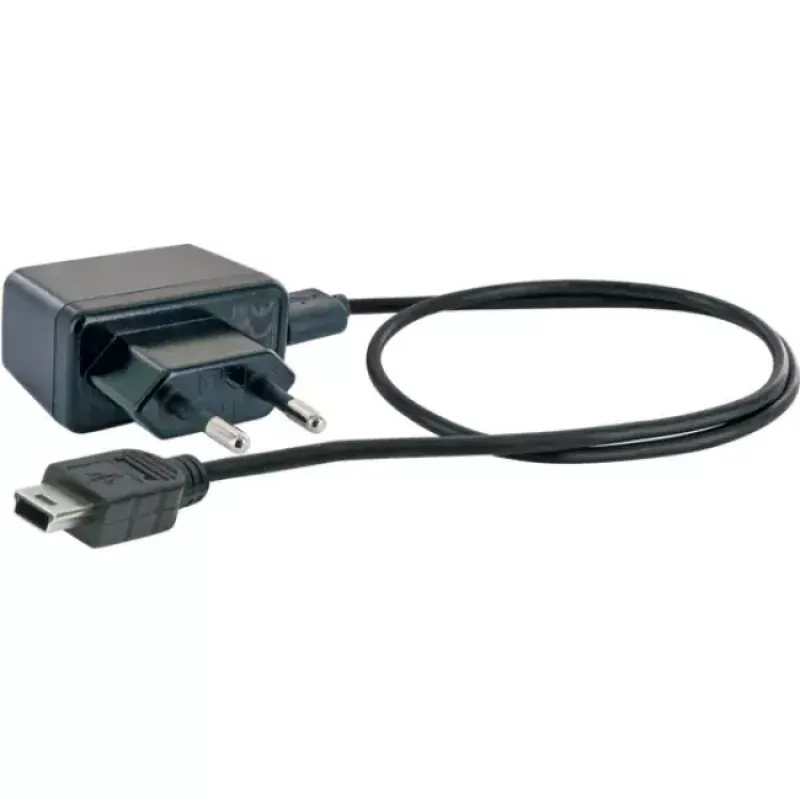

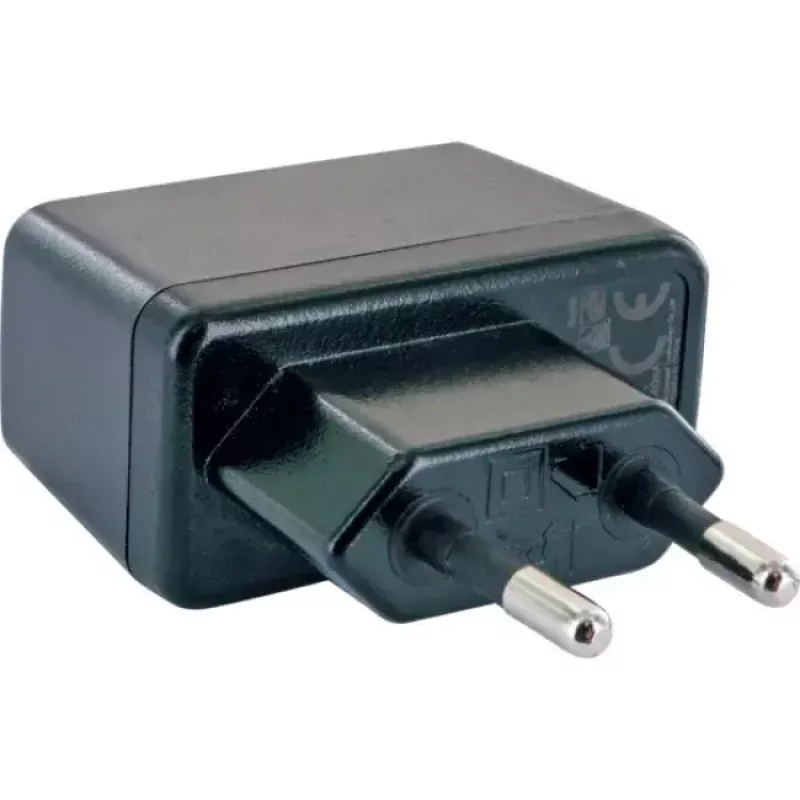

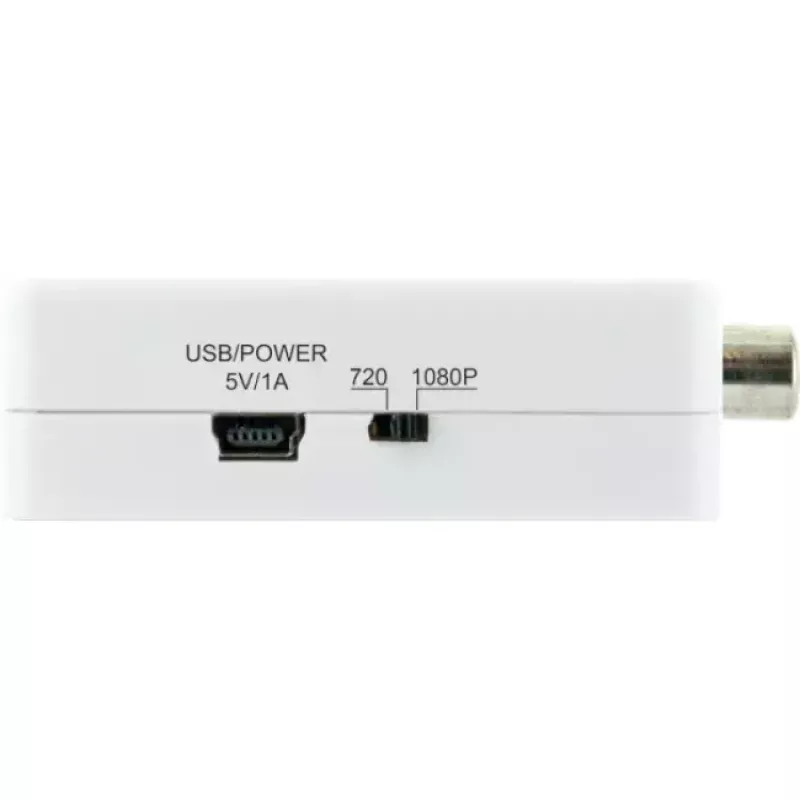

• Power: 5 V / 1 A
• Dimensions: 66 x 55 x 20 mm
• Weight: 0.04 kg
• Colour: White
• EAN: 4004005029253

How to use

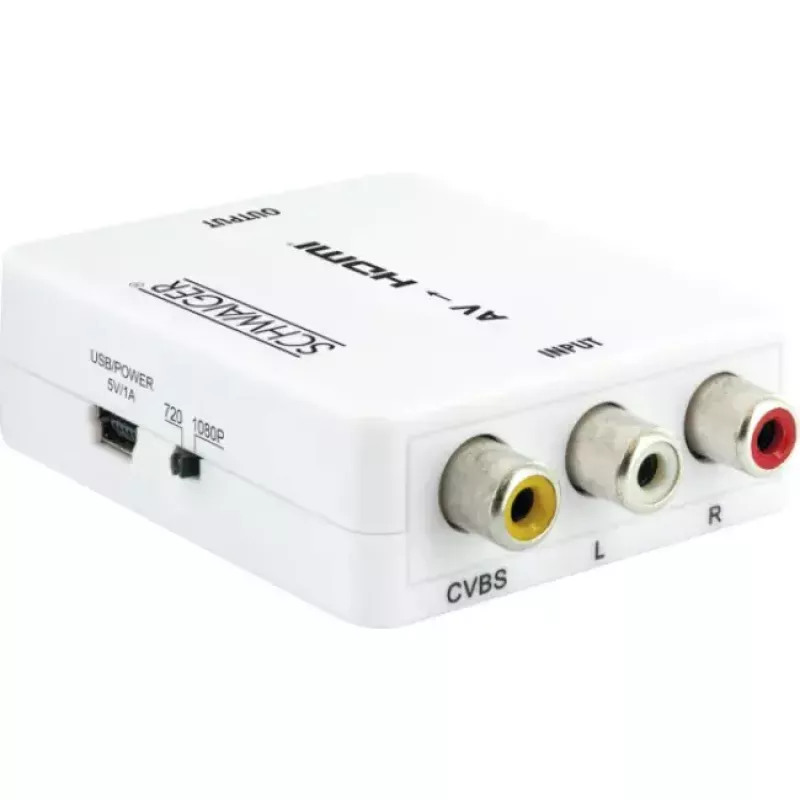

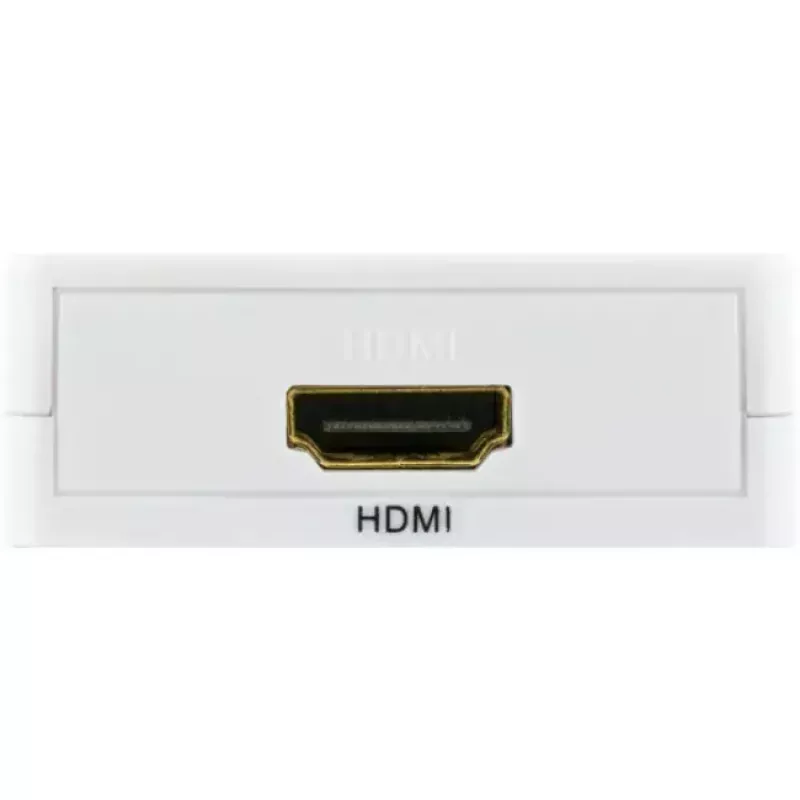

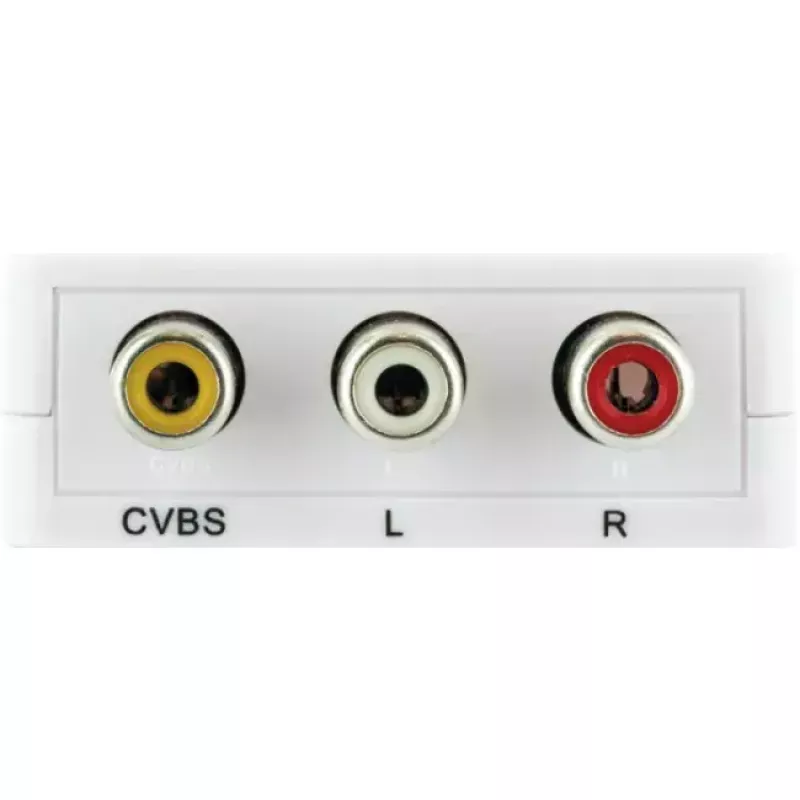

Connect the analogue source’s composite video and left/right audio cables to the corresponding yellow, white and red RCA inputs on the converter. Plug an HDMI cable from the converter’s HDMI output into the TV or monitor. Connect the power supply (5 V / 1 A) to the converter and switch on the display and source device. Select the HDMI input on the TV; the converter will scale the analogue signal to the configured HDMI resolution (e.g., 720p or 1080p).

Recommendations

For best results, use good-quality RCA cables and an HDMI cable rated for your display. If the image appears unstable, check that the source device is set to a compatible output standard (NTSC or PAL) and try selecting a different output resolution on the converter if available.
