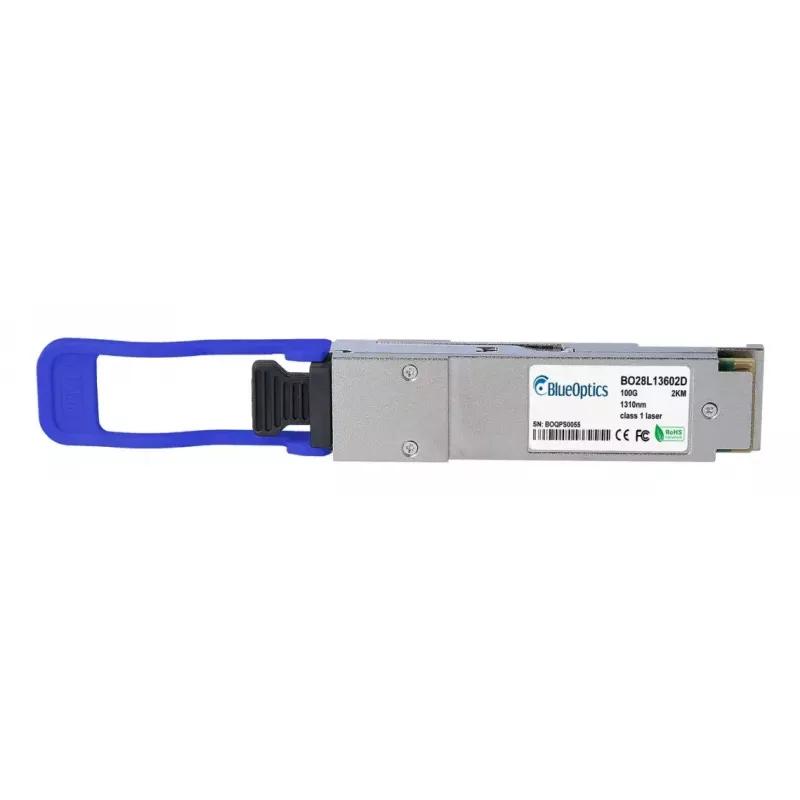

Sklenené vlákno transceiver modul BlueOptics 740-061408-BO 100000 Mbit/s LC

The BlueOptics 740-061408-BO is a QSFP28 fiber optic transceiver module designed for high-speed network applications. It supports a maximum data transfer rate of 100000 Mbit/s and uses an LC duplex interface for single‑mode fiber connections. Housed in a durable silver metal casing and weighing approximately 40 g, this module implements the 100GBASE-CWDM4 optical standard and is intended for integration into networking equipment that accepts QSFP28 form-factor transceivers.

Advantages

The transceiver offers a standardized LC interface and QSFP28 form factor for compatibility with a wide range of networking hardware. Built with a metal enclosure for mechanical robustness and thermal stability, it supports high data throughput up to 100000 Mbit/s suitable for core and aggregation links. The module follows industry MSA guidelines for QSFP28 and CWDM4 optics, enabling predictable optical performance and interoperability when used with compatible single‑mode fiber cabling.

Suitable for

• 100G Ethernet aggregation and backbone links
• Data center interconnects between switches and routers
• High‑performance storage area network (SAN) connections
• Longer reach single‑mode fiber connections within campus and metro networks (CWDM4)

Key specifications

• Form factor: QSFP28 optical transceiver
• Optical standard: 100GBASE‑CWDM4
• Maximum data transfer rate: 100000 Mbit/s
• Connector type: LC duplex
• Fiber type: single‑mode fiber
• Housing: metal, silver colour
• Weight: approx. 0.04 kg

How to use

Install the BlueOptics 740-061408-BO into a compatible QSFP28 slot on switches, routers or other networking devices following the device manufacturer’s insertion and handling guidelines. Connect LC duplex single‑mode fiber patch cords to the module’s LC interface, ensuring correct transmit/receive orientation. If supported by the host hardware, enable and monitor the module via the device management interface; use Digital Diagnostics Monitoring (DDM/DOM) features when available to check supply voltage, optical power and temperature during operation. Observe electrostatic discharge precautions and secure the module with the retaining mechanism provided by the host.

Recommendations

Use single‑mode LC duplex patch cords and, where applicable, CWDM‑compatible cabling to achieve the rated 100GBASE‑CWDM4 link performance. Verify host device compatibility with QSFP28 modules and enable DDM/DOM support in the host firmware to monitor optical parameters. Follow recommended cleaning procedures for LC connectors to maintain low insertion loss and reliable links.
