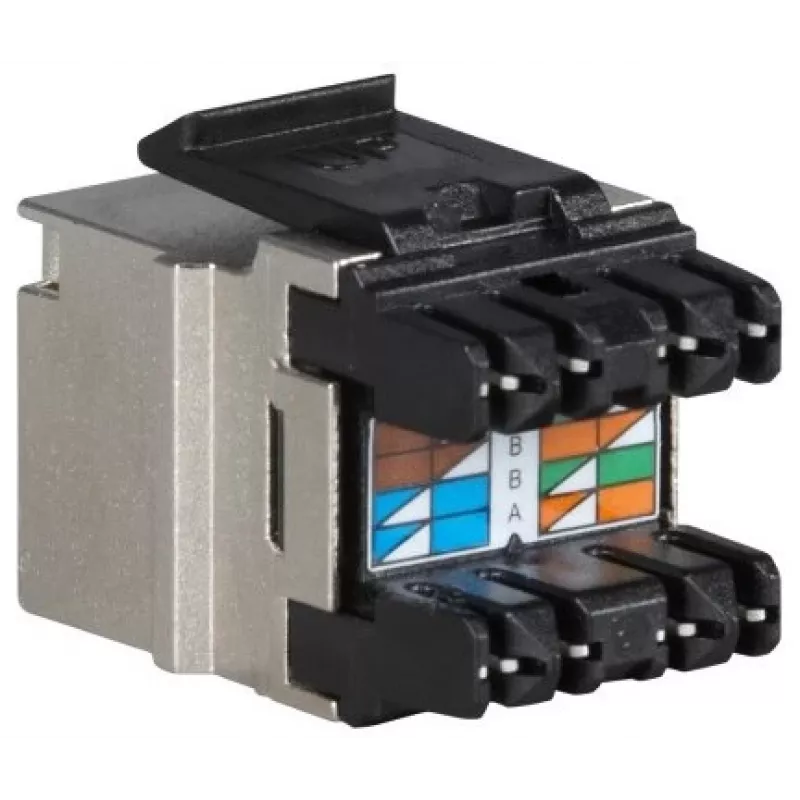

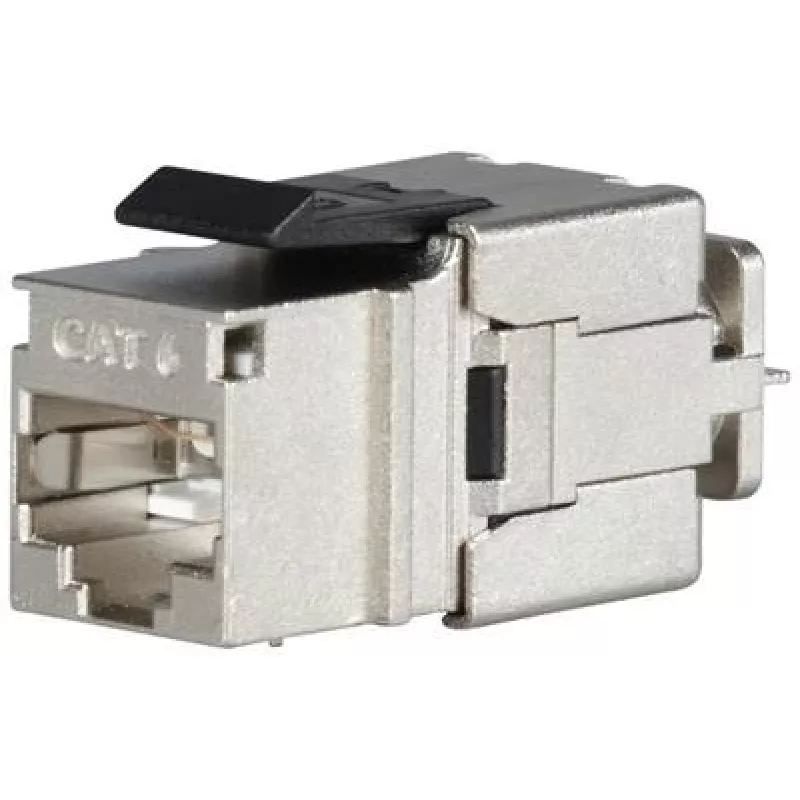

SOLARIX Cat.6 STP FTP RJ45 Keystone modul bez nástrojov strieborný

The SOLARIX SXKJ-6-STP-BK-NA is a high-performance Cat.6 STP Keystone Module designed for professional network installations. It features a toolless termination method for quick and easy installation, saving time and effort. The module is shielded (STP/FTP) to protect against electromagnetic interference, ensuring reliable data transmission up to 250 MHz. Its robust die-cast zinc alloy housing and gold-plated contacts guarantee long-term durability and optimal signal integrity.

Advantages

Toolless IDC termination eliminates the need for a punchdown tool, reducing installation time. The shielded design minimizes crosstalk and EMI, making it ideal for high-speed networks. Compatible with PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt), it supports power over Ethernet for devices like IP cameras and wireless access points. The module is color-coded for T568A and T568B wiring schemes, ensuring universal compatibility.

Suitable for

• Data centers and server rooms requiring high-density cabling
• Enterprise networks with high-speed data transfer needs
• Industrial environments where EMI protection is critical
• Structured cabling systems for new installations or upgrades

Key specifications

• Product Type: Keystone Module
• Network Category: Cat.6
• Shielding: STP (Shielded Twisted Pair)
• Connector Type: RJ45
• Termination Method: Toolless IDC
• Color: Silver
• Housing Material: Die-cast Zinc Alloy
• Contact Plating: Gold (50µm)
• Wire Gauge Support: 22-26 AWG (solid and stranded)
• Frequency Range: Up to 250 MHz
• Standard Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D
• PoE Compatibility: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Durability (Mating Cycles): 750
• Durability (Termination Cycles): 200
• Operating Temperature: -10°C to +60°C
• Mounting Standard: Keystone (22.5 x 17 mm)
• Wiring Scheme: T568A/B (color-coded)
• Certifications: RoHS, CE

Recommendations

For optimal performance, use with Cat.6 or higher cabling and ensure proper grounding of the shielded system. This module is ideal for high-speed networks requiring reliable, interference-free connections.
