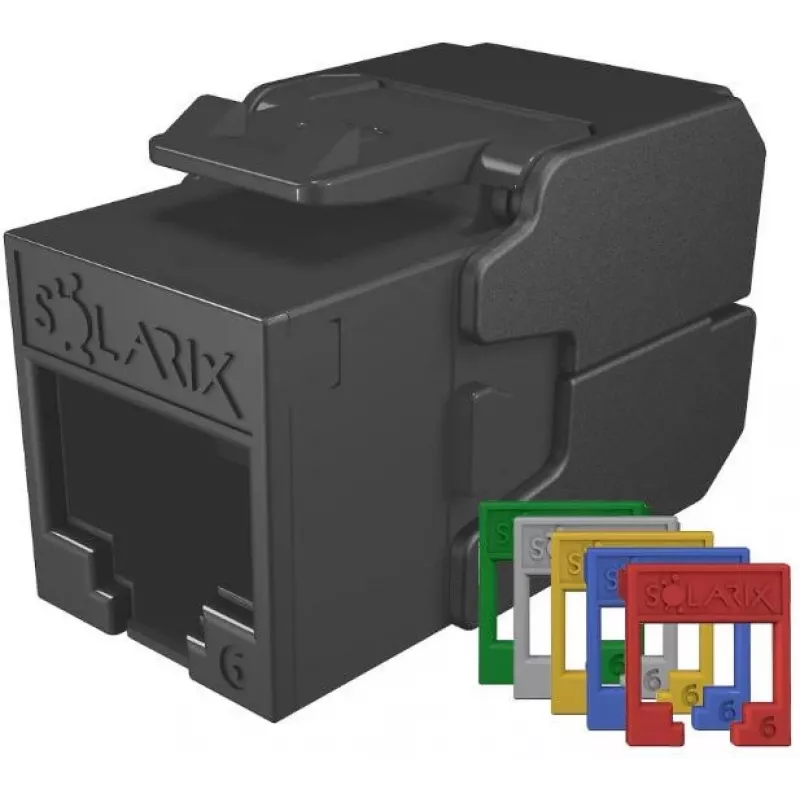

SOLARIX Cat.6 UTP RJ45 bez nástrojov keystone modul, čierny (RAL 9005)

With 50µ gold-plated phosphor bronze contacts, this SOLARIX Cat.6 UTP RJ45 keystone module ensures exceptional signal integrity and corrosion resistance for high-performance data networks. The tool-free IDC termination supports 22-26 AWG solid or stranded conductors, enabling fast, reliable installations without special tools. Housed in UL94V-0 polycarbonate, the module withstands over 750 insertion cycles, making it a durable choice for demanding structured cabling environments.

Overview

The SOLARIX Cat.6 UTP RJ45 keystone module is an unshielded, tool-free connector designed for Category 6 networks. It supports T568A/B wiring standards and meets TIA/EIA-568-B.2-1, ISO/IEC 11801, and EN 50173 requirements. The module snaps into standard keystone ports, ideal for patch panels, wall plates, and surface mount boxes. Its black RAL 9005 finish blends seamlessly into professional installations.

What stands out

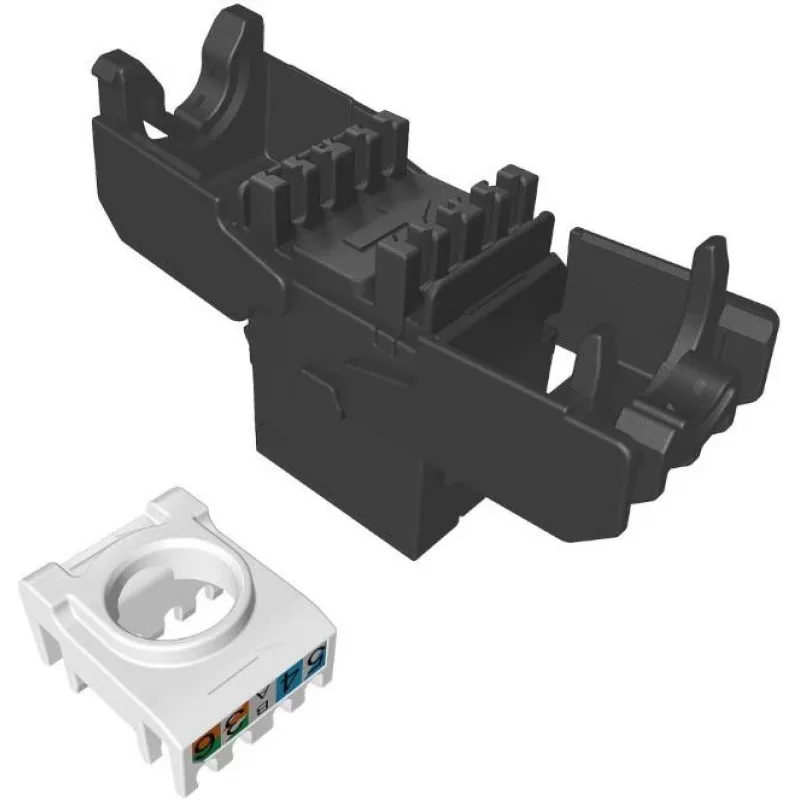

• Tool-free IDC termination: no punch-down tool required, reducing installation time and errors.
• 50µ gold-plated contacts: superior conductivity and long-term reliability.
• UL94V-0 flame-retardant housing: enhanced safety in commercial and residential settings.
• Supports 22-26 AWG solid/stranded conductors for flexible wiring options.
• High durability: >750 insertion cycles and >200 IDC termination cycles.
• Wide operating temperature range: -10°C to 60°C for various environments.

Technical details

• Product type: Keystone module
• Network category: Cat.6
• Shielding: UTP (unshielded)
• Connector type: RJ45
• Termination: Tool-free IDC
• Wiring standard: T568A/B
• Colour: Black (RAL 9005)
• Conductor gauge: 22-26 AWG solid/stranded
• Housing material: Polycarbonate, UL94V-0
• Contact material: Phosphor bronze with 50µ gold plating
• Insertion cycles: >750
• IDC termination cycles: >200
• Operating temperature: -10°C to 60°C
• Standards: TIA/EIA-568-B.2-1, ISO/IEC 11801, EN 50173

Our verdict

A robust, tool-free Cat.6 keystone module that combines premium materials with easy installation, making it a reliable choice for any structured cabling project.
