Stolová zásuvka Kindermann 7448000010 strieborná šírka 271 mm hĺbka 220 mm

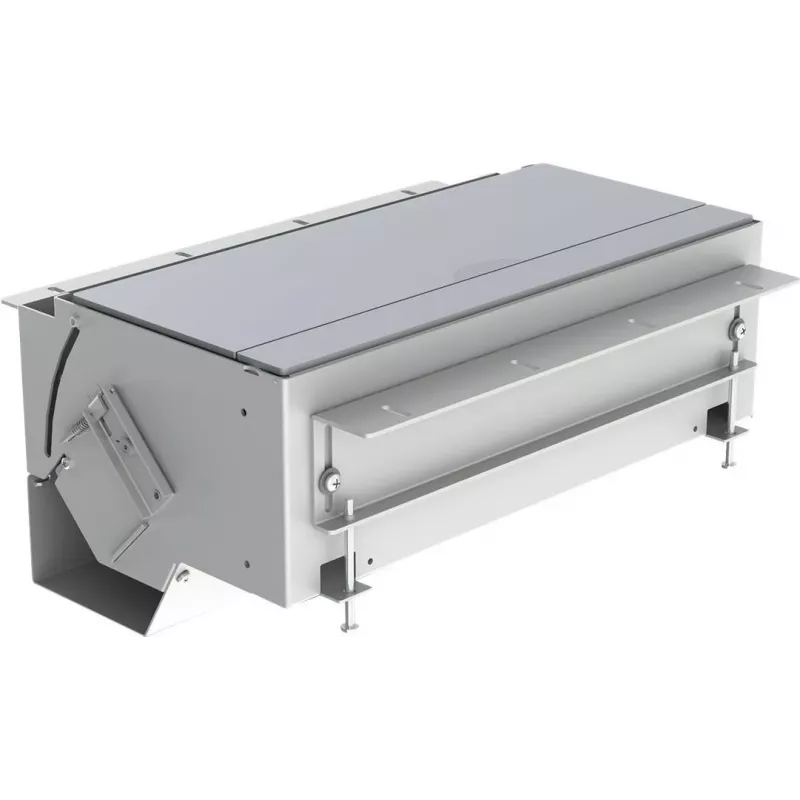

The Kindermann 7448000010 outlet box provides a high-quality desktop connection point for mains, communication and AV connections. The lid is made of anodized aluminium and the interior offers a large opening with ample storage space for cables and computer power supplies. The unit accommodates desktops 15–40 mm thick and has a cutout dimension of 244 x 193 mm; installation depth is approximately 160 mm. Inner parts are powder-coated in RAL 9006 silver. The product can be used without a mounting frame or combined with the aluminium frame 744800001x; select a suitable module holder 74480002xx when adding modules.

Advantages

Solid anodized aluminium lid and powder-coated inner parts ensure durability and a consistent silver appearance. The movable flap allows cable outlet while the lid is closed, and a dedicated field permits individual labelling. The internal volume is designed to store multiple cables and power supplies, simplifying desk cable management. Compatible with optional mounting frame 744800001x and module holders 74480002xx for flexible integration.

Suitable for

Key specifications

How to use

Prepare a cutout in the desktop measuring 244 × 193 mm and ensure a minimum installation depth of 160 mm. Place the outlet box into the opening and secure it according to the chosen installation method (without mounting frame or with aluminium frame 744800001x). Fit required modules into the appropriate module holder (74480002xx) and route mains, communication and AV cables through the movable flap for outlet while the lid is closed. Label the field on the unit as needed.

Recommendations

Check local electrical regulations and, if necessary, use a qualified electrician for mains connections. When installing modules, use compatible holders (74480002xx) and verify that power supplies fit within the internal depth to avoid obstructing the lid.
