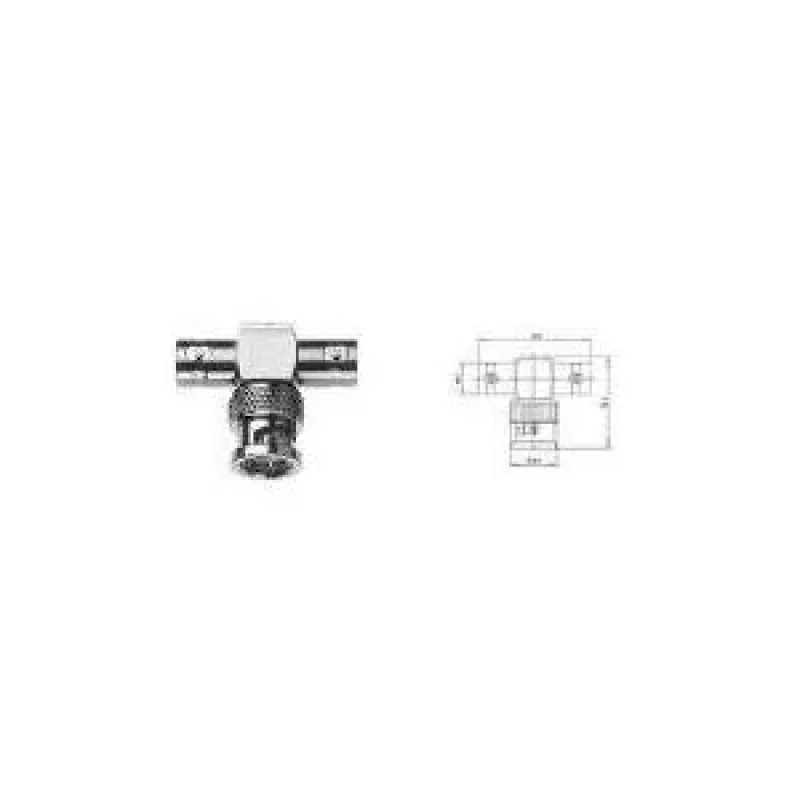

Telegärtner BNC T-adapter (F-M-F) 75 Ohm video rozbočovač

For video and RF signal distribution, the Telegärtner BNC T-Adapter (F-M-F) offers a reliable solution with a female-male-female configuration. Unlike simple couplers, this T-shaped adapter splits a single BNC signal into two paths while maintaining 75 Ohm impedance, making it ideal for video applications where signal integrity is critical.

Highlights

• BNC female to BNC male to BNC female T-adapter
• 75 Ohm impedance for video and RF applications
• Frequency range DC to 1 GHz
• Nickel-plated brass housing for durability
• Gold-plated beryllium copper center contacts for reliable signal transfer
• PTFE insulator for excellent dielectric properties
• Operating temperature range -40 °C to +85 °C

In daily use

This adapter is commonly used in video distribution setups, allowing a single BNC source to feed two displays or devices. The robust construction ensures stable connections in professional environments, while the 75 Ohm impedance matching prevents signal reflections and maintains video quality.

Full specifications

• Adapter Type: T-Adapter
• Connector 1: BNC Female
• Connector 2: BNC Male
• Connector 3: BNC Female
• Impedance: 75 Ohm
• Frequency Range: DC to 1 GHz
• Housing Material: Brass
• Housing Plating: Nickel
• Center Contact Material: Beryllium Copper (CuBe2)
• Center Contact Plating: Gold
• Outer Contact Material: Brass
• Outer Contact Plating: Nickel
• Insulator Material: PTFE
• Dielectric Withstanding Voltage: 1.5 kVeff
• Insulation Resistance: ≥ 5 GΩ
• Operating Temperature Range: -40 °C to +85 °C
• RoHS Compliance: Yes

Final note

Telegärtner's precision engineering ensures this BNC T-adapter delivers consistent performance in demanding video and RF applications.
