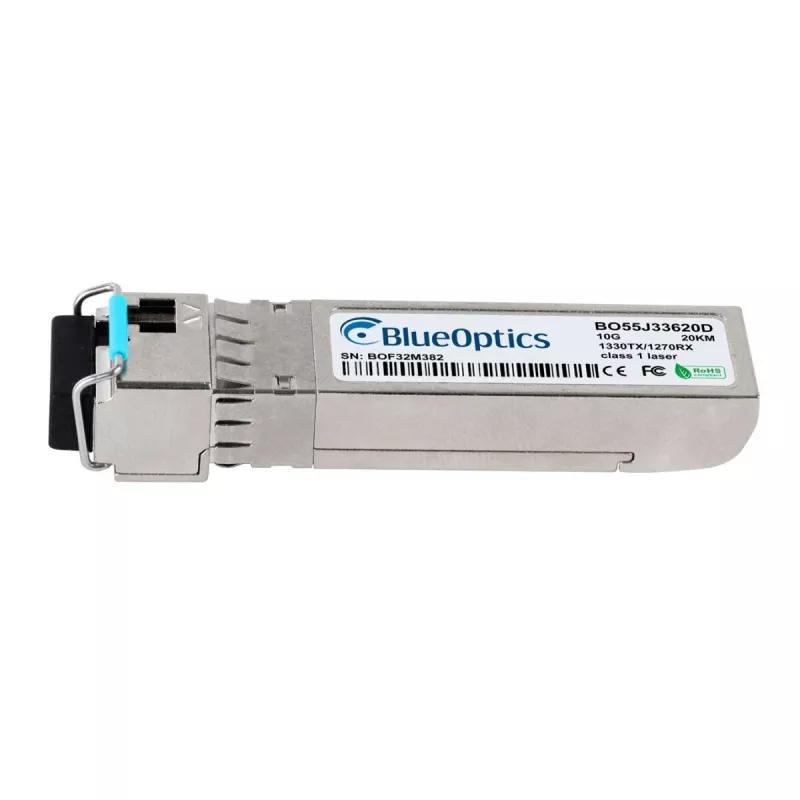

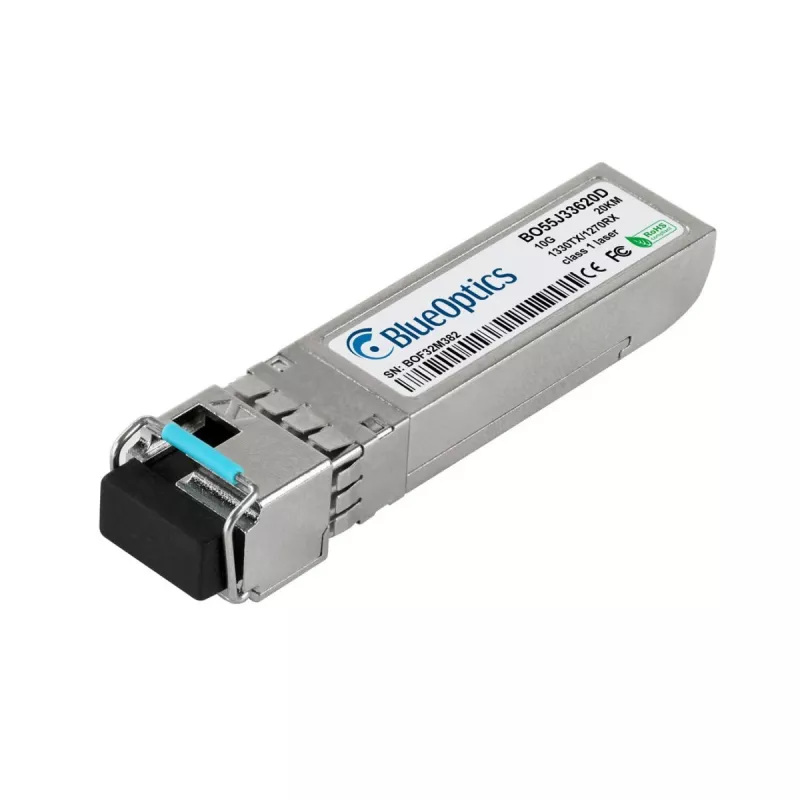

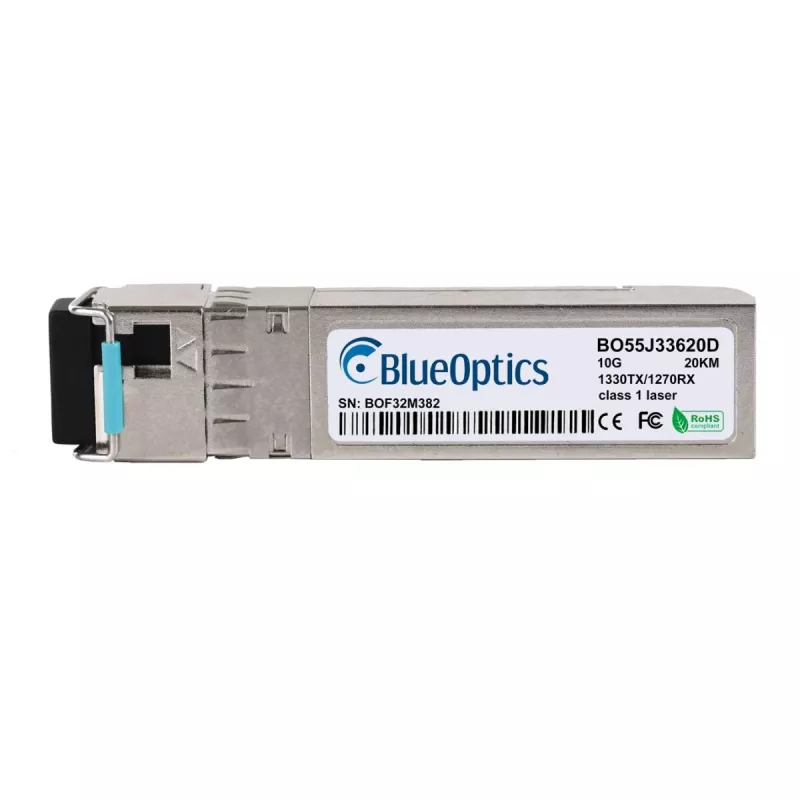

TP-Link SFP-10G-BX-D kompatibilný BlueOptics SFP+ BO55J33620D 10GBASE-BX-D 10km LC SMF transceiver

The BlueOptics BO55J33620D is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet networks. It is fully compatible with TP-Link SFP-10G-BX-D and other MSA-compliant devices, delivering reliable bi-directional data transmission over single-mode fiber at distances up to 10 km. This hot-pluggable module operates at a wavelength of 1330 nm for transmit and 1270 nm for receive, using a single LC simplex connector. With low power consumption (<1.0 W) and support for Digital Diagnostic Monitoring (DDM/DOM), it provides real-time performance monitoring for efficient network management.

Advantages

This transceiver offers cost-effective 10G connectivity for enterprise and data center networks. Its bi-directional design reduces fiber infrastructure costs by using a single fiber strand. The commercial temperature range (0°C to 70°C) ensures stable operation in standard environments. MSA compliance guarantees interoperability with a wide range of networking equipment.

Suitable for

• 10 Gigabit Ethernet uplinks in enterprise LANs
• Data center interconnects
• Service provider access networks
• Fiber-to-the-x (FTTx) deployments

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Transceiver Type: 10GBASE-BX-D (Bi-directional)
• Wavelength: TX 1330 nm / RX 1270 nm
• Max Distance: 10 km
• Fiber Type: Single-mode (OS2)
• Connector: LC Simplex
• DDM/DOM: Yes
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Compliance: SFP+ MSA, IEEE 802.3ae 10GBASE-BX10

Recommendations

For optimal performance, pair this transceiver with a compatible SFP+ port on your switch or router. Ensure the fiber patch cable is single-mode with LC connectors. Use the DDM feature to monitor optical parameters and maintain network health.
