TP-Link TXM431-LR kompatibilný BlueOptics SFP+ BO35J13610D

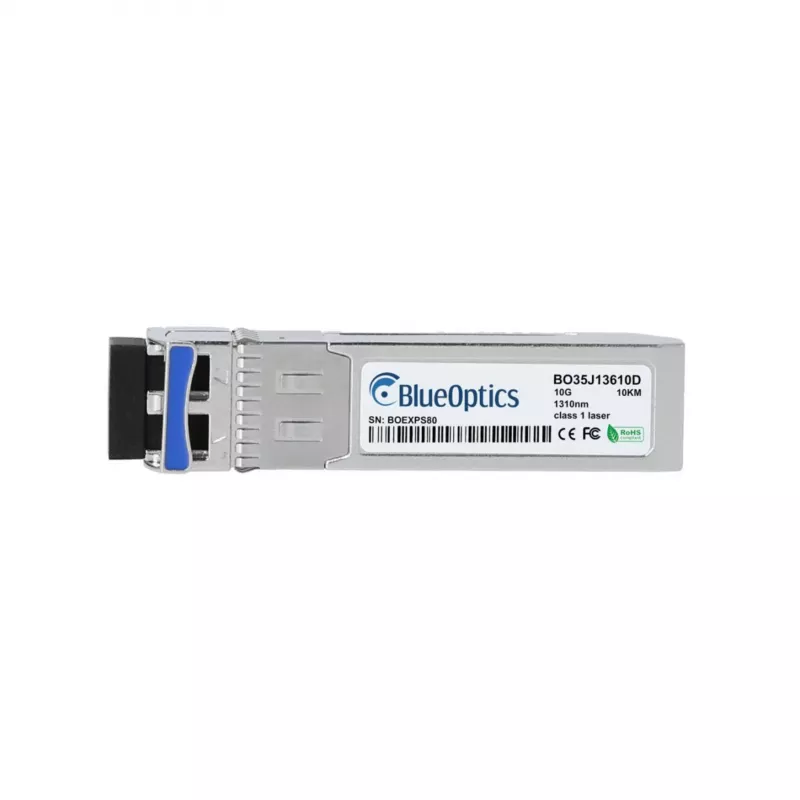

The BlueOptics BO35J13610D is a high-performance SFP+ transceiver module designed for compatibility with TP-Link TXM431-LR switches and routers. It delivers reliable 10 Gigabit Ethernet connectivity over single-mode fiber at a wavelength of 1310 nm, supporting distances up to 10 km. This hot-swappable module is MSA compliant and features Digital Diagnostic Monitoring (DDM) for real-time performance monitoring.

Advantages

Cost-effective alternative to OEM modules without compromising on quality or performance. Fully compatible with TP-Link TXM431-LR and other MSA compliant SFP+ ports. Low power consumption (<1.0 W) helps reduce energy costs. DDM support allows for proactive network management.

Suitable for

• 10 Gigabit Ethernet connections in data centers and enterprise networks
• Long-reach links up to 10 km over single-mode fiber
• Upgrading or expanding TP-Link TXM431-LR based networks

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Optical Component: DFB Laser
• Digital Diagnostic Monitoring (DDM): Supported
• Standard: 10GBASE-LR
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Hot-Swappable: Yes
• Compliance: RoHS, CE, FCC, MSA Compliant
• Transmitter Power: -8.2 to 0.5 dBm
• Receiver Sensitivity: < -14.4 dBm
• Overload Power: 0.5 dBm
• Voltage: 3.3V

Recommendations

For optimal performance, use with single-mode fiber patch cables (LC duplex) and ensure your network equipment supports SFP+ 10GBASE-LR modules. This module is ideal for enterprise and data center environments requiring reliable long-distance 10G connectivity.
