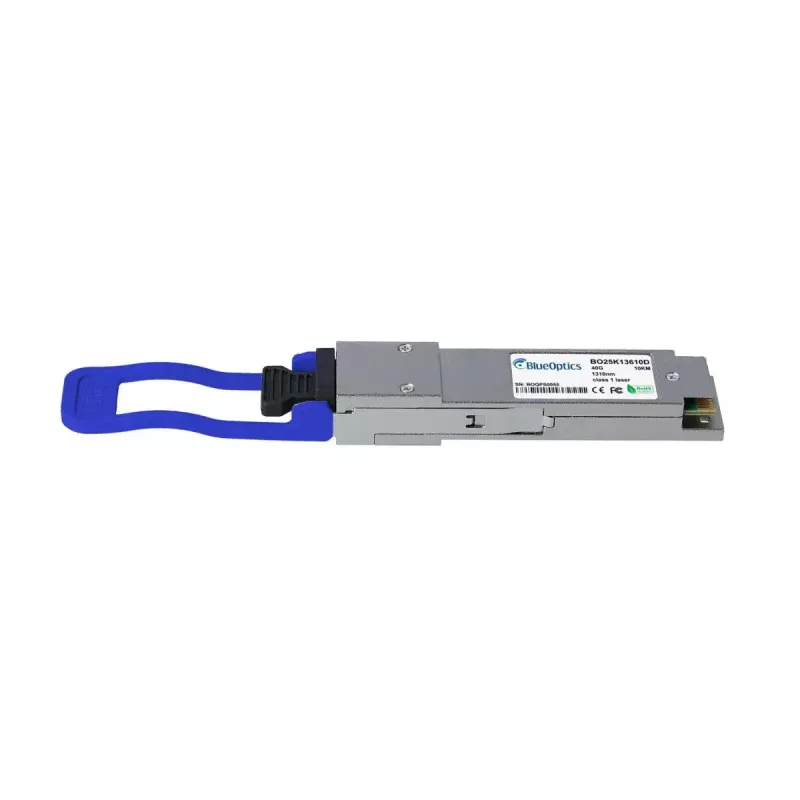

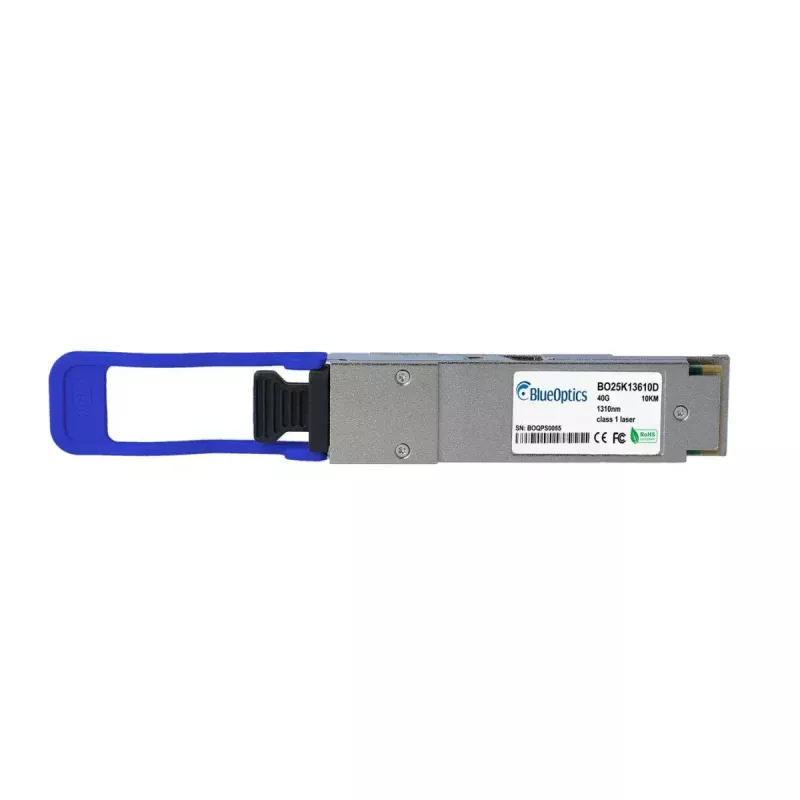

Transceiver modul pre optické vlákno BlueOptics 100-04651-BO 40000 Mbit/s QSFP

The BlueOptics 100-04651-BO is a QSFP fiber optic transceiver module designed for 40 Gbps high-speed data transmission in network environments. The compact silver module supports a maximum data transfer rate of 40000 Mbit/s and is suitable for short- and medium-range links where QSFP form factor and high throughput are required. With a lightweight construction of 20 g and an MTBF of 1,000,000 hours, this transceiver is intended for reliable operation in data center, enterprise and carrier network equipment. The module complies with CE, FCC and RoHS standards.

Advantages

The QSFP interface provides four-channel high-density connectivity in a single module, enabling efficient port consolidation and simplified cabling in high-bandwidth installations. The 40 Gbit/s transfer capability supports aggregation and uplink applications while the compact, low-weight design reduces space and power constraints. Compliance with CE, FCC and RoHS ensures adherence to common regulatory and environmental requirements.

Suitable for

• Data center aggregation links and top-of-rack switches
• Enterprise backbone and server uplinks
• High-throughput storage and virtualization networks
• Carrier and service provider optical connections supporting QSFP

Key specifications

• Interface type: QSFP (Quad Small Form-factor Pluggable)
• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Insert the BlueOptics QSFP transceiver into a compatible QSFP port on network switches, servers or optical equipment following the host device manufacturer's hot-plug procedures. Ensure the module is fully seated and that any retaining latch is engaged. Connect the appropriate fiber patch cable or breakout assembly compatible with QSFP interfaces and the required fiber type. Verify link status and data rate in the host device management interface and monitor optical parameters as supported by the system.

Recommendations

Handle the transceiver by the housing, avoid touching the optical interface, and keep protective dust caps on when not connected. Use compatible QSFP ports and suitable fiber cabling; verify supported distances and transceiver pairing per network equipment documentation to ensure reliable 40 Gbit/s links.
