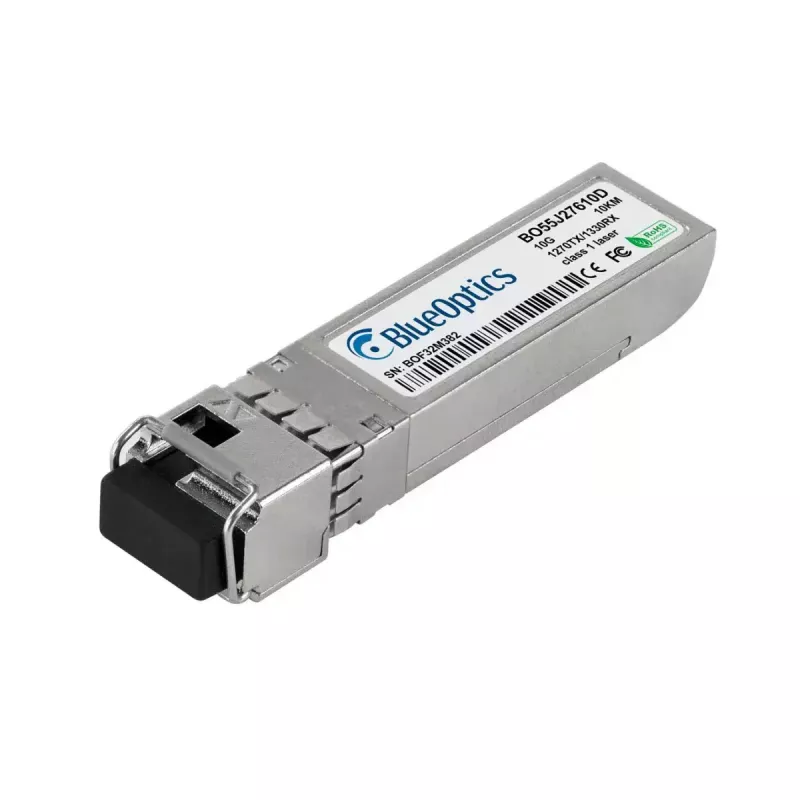

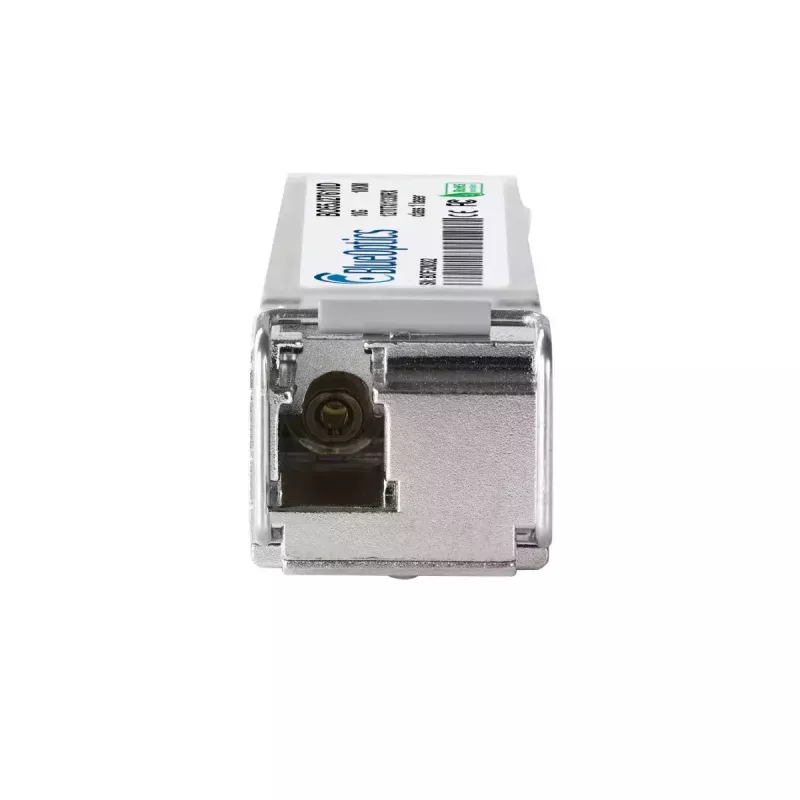

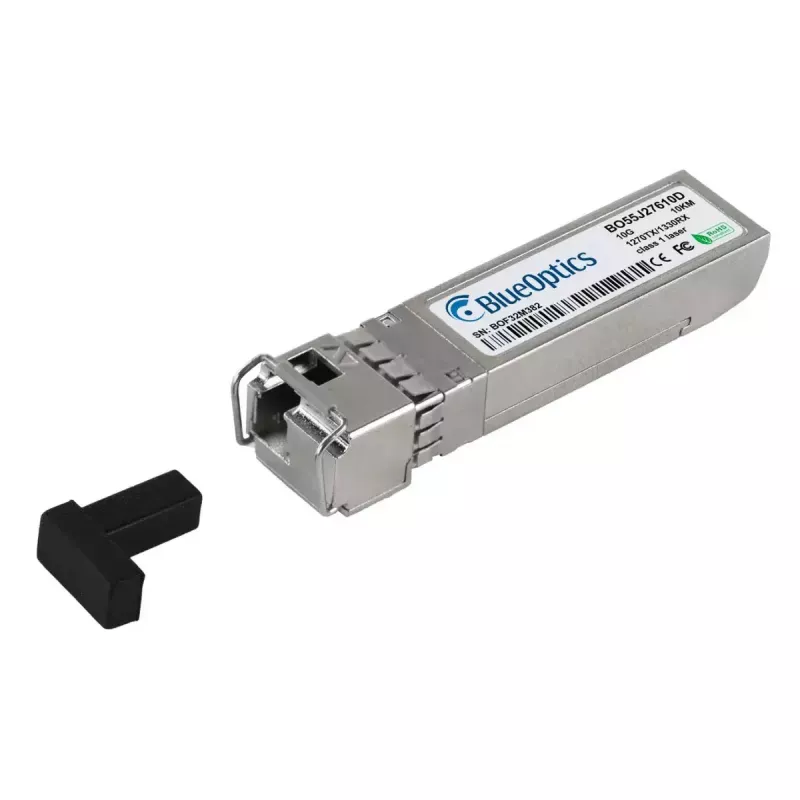

Transceiver modul s optickým vláknom BlueOptics 55113307-BO 10000 Mbit/s SFP+

The BlueOptics 55113307-BO 10000 Mbit/s SFP+ is a fiber optic transceiver module designed for high-speed 10 Gbps network links. The compact SFP+ form factor allows straightforward insertion into compatible switch, router or server ports. Finished in a silver housing and weighing approximately 20 g, this module delivers a balance of small size and durability appropriate for data center and enterprise networking environments. Compliance with CE, FCC and RoHS standards indicates adherence to common regulatory and material-safety requirements.

Advantages

The SFP+ transceiver supports a maximum data transfer rate of 10000 Mbit/s and is compatible with standard SFP+ interfaces, enabling straightforward integration into existing 10 Gbps networks. Its compact design and low weight facilitate dense port deployments and simplify handling during installation. High MTBF provides predictable operational lifespan for planning and maintenance in continuous-use environments. Regulatory compliance helps ensure electromagnetic compatibility and environmental safety.

Suitable for

• 10 Gbps uplinks between switches and routers
• Server-to-switch connections in data centers
• High-bandwidth links for virtualization and storage networks
• Long-term installations where compliance with CE/FCC/RoHS is required

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Product colour: Silver
• Weight: 0.02 kg
• MTBF: 1,000,000 hours
• Form factor: SFP+ transceiver module
• Standards compliance: CE, FCC, RoHS

How to use

Install the BlueOptics SFP+ module by inserting it into a compatible SFP+ port until the module latches. Connect the appropriate fiber optic cable with matching connectors to the transceiver. Verify link status via the host device's port indicators or management interface. For removal, disengage any retention mechanism and pull the module straight out. Follow the host equipment vendor's instructions for hot-plugging and any required configuration steps such as enabling the port or setting link speed and duplex if applicable.

Recommendations

Handle the transceiver by the housing and avoid touching the fiber interface; keep dust caps on until connection. Use matched fiber types and connector types to ensure proper signal performance. Confirm compatibility with the switch or server vendor if the environment enforces vendor-locked transceiver policies. Maintain proper ESD precautions when installing or removing the module.
