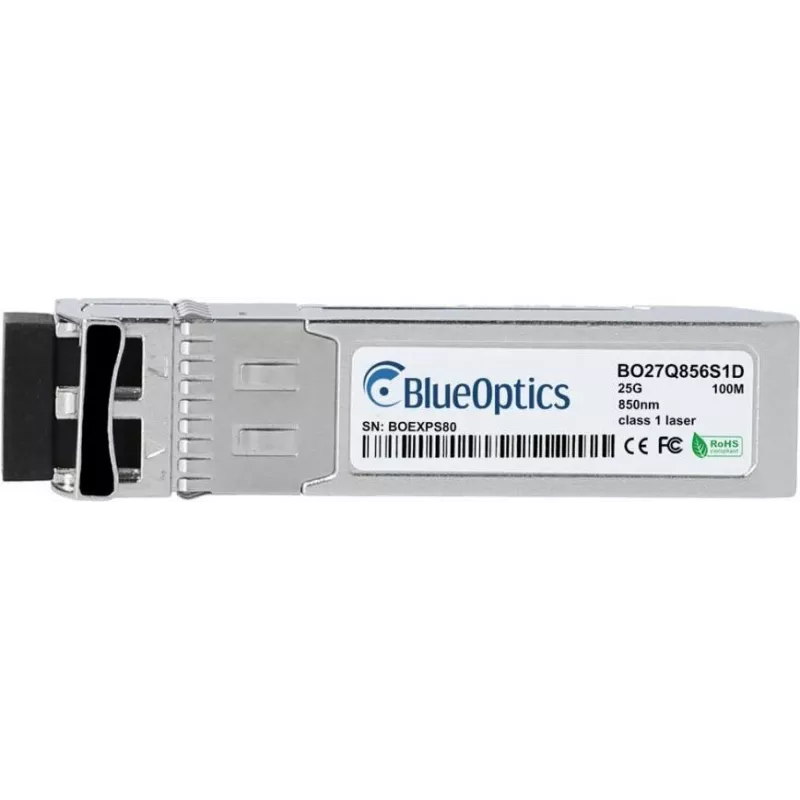

Transceiver modul SFP28 BlueOptics 0YR96-BO 25000 Mbit/s 850 nm

The BlueOptics 0YR96-BO is an SFP28 fiber optic transceiver module designed for 25G Ethernet links. It supports a maximum data transfer rate of 25000 Mbit/s over multimode fiber using an 850 nm wavelength and LC duplex connector. The module is compliant with CE, FCC and RoHS standards and offers a high MTBF of 3,000,000 hours for reliable operation in data center and enterprise environments.

Advantages

The SFP28 module delivers 25G performance in a compact, MSA-compliant form factor with LC duplex multimode connectivity. It supports simultaneous transmit and receive functions at 850 nm and includes digital diagnostics (DDM/DOM) for real-time monitoring of optical power, temperature and supply parameters when supported by the host device. Constructed from high-quality components and fully tested for compatibility, the module provides long service life and consistent optical performance for high-speed links.

Suitable for

• 25GBASE-SR links in data center top-of-rack and aggregation switches
• High-speed switch-to-switch and switch-to-server connections
• Short-reach multimode fiber links up to 100 m
• Storage systems and network appliances that accept SFP28 modules

Key specifications

• Maximum data transfer rate: 25000 Mbit/s
• Wavelength: 850 nm
• Maximum transfer distance over multimode fiber: 100 m
• Connector type: LC duplex
• Form factor: SFP28 (MSA-compliant)
• Mean time between failures (MTBF): 3,000,000 hours
• Product colour: Silver
• Weight: 0.02 kg

How to use

Install the SFP28 transceiver into an available SFP28 slot on a compatible switch, router or storage device until it clicks into place. Connect LC duplex multimode fiber patch cables between transceivers to establish the optical link, ensuring correct fiber type and polarity. If your host hardware supports digital diagnostics, enable or query the DDM/DOM interface to monitor optical power, supply voltage and temperature. Verify link status and speed in the host device management interface and confirm that the device firmware accepts third-party SFP28 modules where applicable.

Recommendations

Use multimode OM3/OM4 fiber to achieve the specified 100 m reach at 25G and maintain proper cable management to avoid microbends. Ensure host device compatibility with SFP28 modules and, when required, enable or update firmware to support third-party transceivers. For troubleshooting, check DDM readings for optical power and temperature and replace the transceiver if optical loss exceeds acceptable margins.
