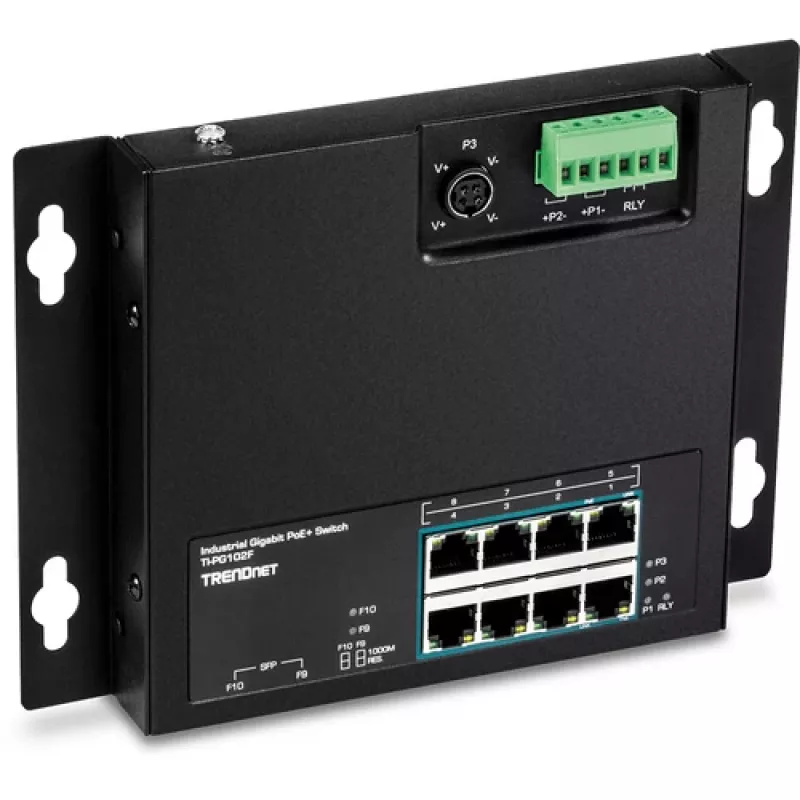

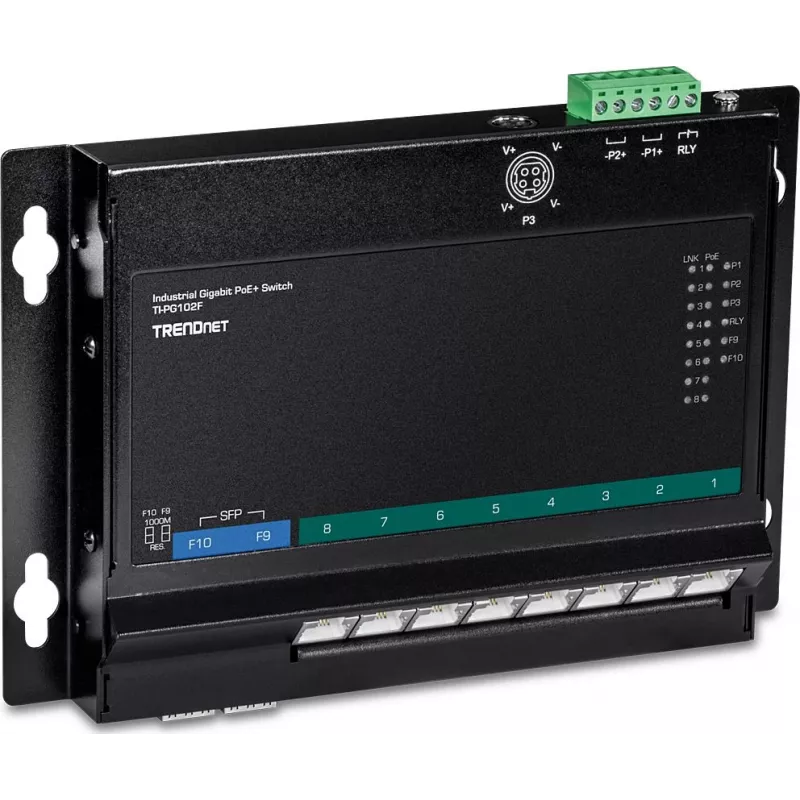

TRENDnet TI-PG102F priemyselný 8-portový Gigabit PoE+ switch (240W, DIN lišta, IP30, bez ventilátora)

Delivering a 240W PoE power budget across eight Gigabit ports plus two SFP uplinks, the TRENDnet TI-PG102F brings industrial-grade networking to demanding environments.

Overview

The TI-PG102F is an unmanaged industrial switch engineered for reliable performance in harsh settings. It powers IP cameras, wireless access points, and VoIP devices over standard Cat5e/6 cabling while offering rugged durability with an IP30-rated metal enclosure and fanless cooling.

What stands out

• 240W total PoE+ power budget for high-power devices
• 8x 10/100/1000Base-T PoE+ ports with auto-negotiation
• 2x 100/1000Base-X SFP slots for fiber connectivity
• Wide operating temperature range (-40 to 75°C)
• Dual redundant DC power inputs (48-56V) for reliability
• DIN-rail mountable and IP30 protected

Technical details

• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• Jumbo frame support up to 9KB
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
• ESD and surge protection: 6kV each
• LED indicators for power, PoE, and link/activity
• Fanless, silent operation

Our verdict

For integrators and network administrators, the TI-PG102F offers an excellent balance of PoE capacity, hardened design, and flexible uplink options, making it a dependable choice for industrial automation, security, and outdoor applications.
