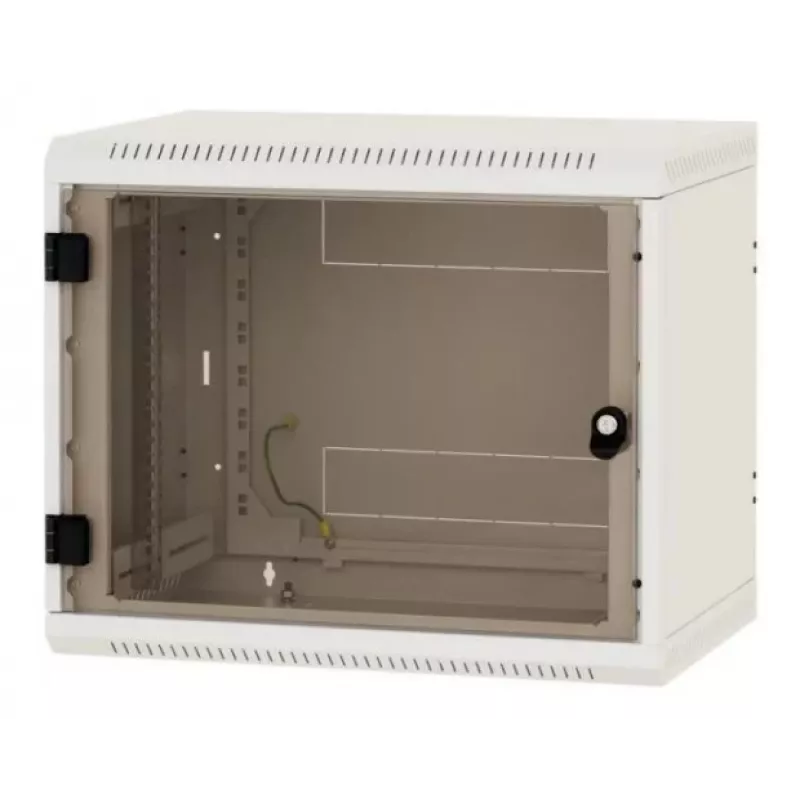

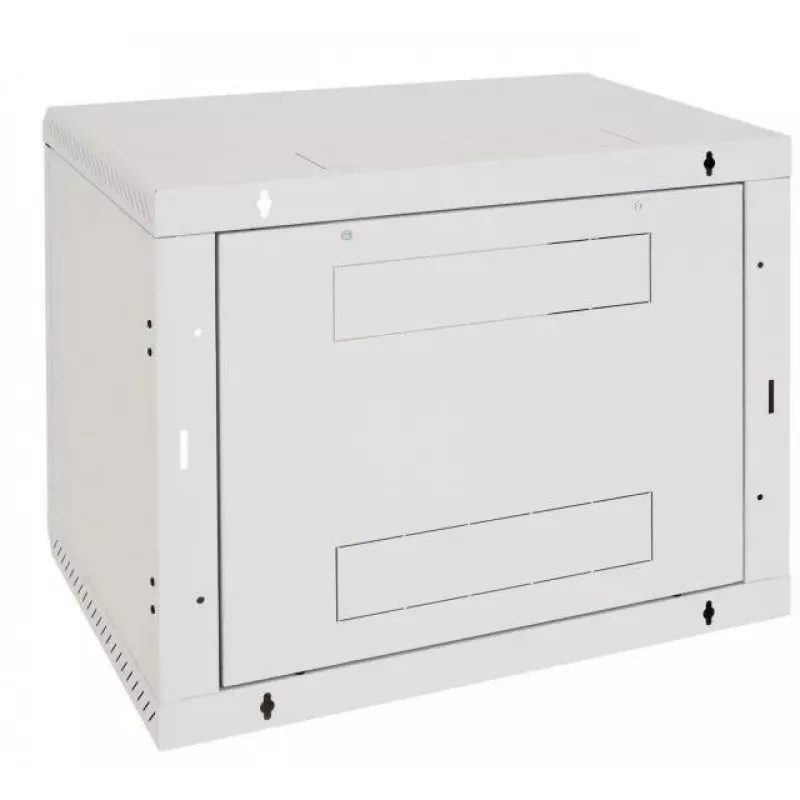

Triton RBA-09-AS4-CAX-A1 19 palcové nástenné puzdro 9U, 600x395mm, jednodielne, sivé

For network administrators and IT technicians setting up small to medium-sized network installations in offices, schools, or retail spaces, this 9U wall-mounted cabinet offers a secure and space-efficient housing for 19-inch equipment. The one-piece welded frame provides robust structural integrity, while the tempered glass front door with 180-degree opening allows easy access and visibility of installed devices.

Key specifications

• 9U rack capacity, compatible with standard 19-inch equipment
• External dimensions: 600 mm width, 395 mm depth, 460 mm height
• Durable steel sheet construction with powder-coated finish in grey (RAL 7035)
• Lockable tempered glass front door with 180-degree opening angle
• Fixed side panels for added security
• Passive ventilation with fan-ready cut-outs for up to 2 fans
• Cable entry from top and bottom with brush strips for dust protection
• Load capacity: 20 kg
• IP20 protection rating for indoor use
• Includes 2 keys and a set of M6 cage nuts

Why choose it

The one-piece welded design eliminates assembly complexity and ensures long-term stability, making it ideal for wall mounting in areas with limited floor space. The lockable glass door keeps equipment secure while allowing visual monitoring, and the included cable management features help maintain a tidy installation.

Ideal use cases

• Small office network closets
• Classroom or training room AV racks
• Retail point-of-sale equipment housing
• Security system enclosures

Good to know

This cabinet is designed for indoor use only (IP20). It comes with all necessary mounting hardware for wall installation, and the cage nuts allow flexible equipment mounting. The grey powder-coated finish is both durable and aesthetically neutral, blending with most environments.
