Ubiquiti UniFi - dverový otvárač - elektronický - bez

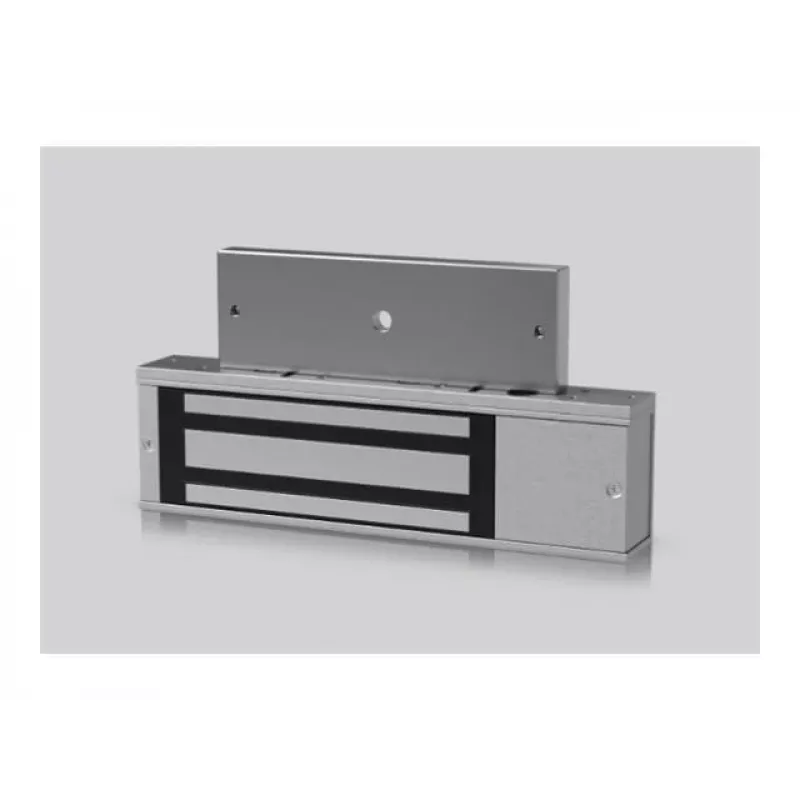

In a busy office building, the main entrance door needs to stay secure while allowing authorized personnel to enter with a badge or smartphone. The Ubiquiti UniFi Access Electric Strike Lock UACC-LOCK-MAGNETIC-540KG replaces the standard strike plate in a wooden or metal door frame, integrating seamlessly with the UniFi Access system. When a valid credential is presented, the strike releases the latch, permitting entry. It operates in fail-secure mode by default, meaning the door remains locked if power is lost, ensuring security. The strike is reversible, so it can be installed on left- or right-handed doors, and its adjustable keeper accommodates various latch types.

Key specifications

• Product type: Electric Strike
• Compatible with Ubiquiti UniFi Access system
• Operation mode: Fail-secure (power to unlock), configurable to fail-safe
• Input voltage: 12V DC
• Max current draw: 200 mA
• Durability: 500,000 cycles
• Faceplate material: Stainless steel
• Body material: Zinc alloy
• Mounting type: Mortise (recessed)
• Door compatibility: Wooden and metal doors
• Handing: Non-handed (reversible)
• Built-in surge protection: MOV
• Operating temperature: -10 to 50° C (14 to 122° F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

Why choose it

This electric strike is built to withstand heavy use, rated for 500,000 cycles, making it suitable for high-traffic entrances. Its stainless steel faceplate and zinc alloy body provide durability and resistance to tampering. The adjustable keeper and reversible design simplify installation on various door setups. Integration with UniFi Access allows for centralized management, real-time monitoring, and event logging, enhancing overall security. The fail-secure default ensures that the door locks during power outages, maintaining security. The built-in MOV protects against voltage spikes, extending the life of the strike.

Ideal use cases

• Office buildings and corporate campuses
• Retail stores and warehouses
• Educational institutions
• Healthcare facilities
• Multi-tenant residential buildings

Good to know

The strike requires a separate power supply (not included) capable of delivering 12V DC at 200 mA. It is designed for mortise installation, so the door frame must be prepared accordingly. The strike can be configured for fail-safe operation if required, but this may require additional wiring and configuration. Always consult local building codes and regulations before installation. The product is certified by CE, FCC, and IC, ensuring compliance with relevant standards.
