USB hub EXSYS EX-1177HMVS-WT

USB hub EXSYS EX-1177HMVS-WT
-11%
Black Week
USB hub EXSYS EX-1177HMVS-WT
214,33 €
240,67 €−11 %
PDF
PDF
Sklad 2 Kód 2524558 Model EX-1177HMVS-WT Záruka 2 roky

Doprava a vrátenie tovaru

Predpokladané doručenie utorok 15. decembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardApple PayGoogle PayBankový prevod

Položte otázku – AI asistent odpovie hneď.

Popis

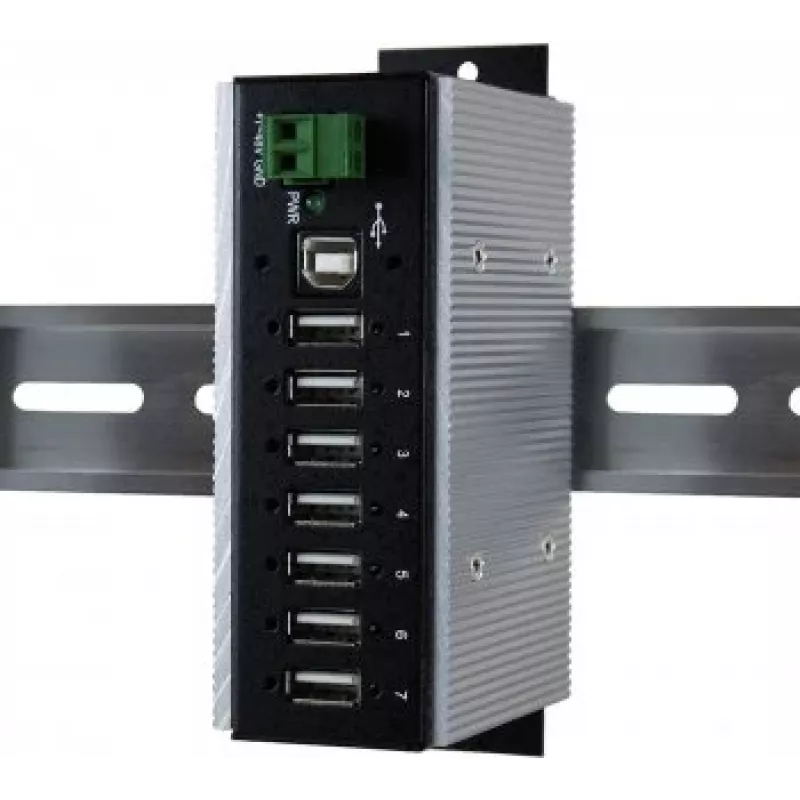

The EXSYS EX-1177HMVS-WT is a compact industrial USB 2.0 Type-B hub that expands one upstream port into seven screw-lock downstream ports. It supports data rates up to 480 Mbit/s, accepts an input voltage range of 7–48 V, and is built to operate in a wide temperature range from -40 °C to +85 °C. The hub has a black-and-white housing and a compact footprint, designed to provide reliable USB connectivity in automation, office, and other rugged environments.

Advantages

The unit provides seven USB 2.0 downstream ports with screw-lock connectors to secure cables mechanically and with 15 kV ESD protection per port to guard connected devices against electrostatic discharge and voltage fluctuations. Its compact, robust construction and broad operating temperature range make it suitable for industrial applications. The wide input voltage range allows flexible power arrangements in varied installations.

Suitable for

  • Connecting multiple USB peripherals (sensors, barcode scanners, printers) in industrial racks
  • Automation systems requiring secure, vibration-resistant cable connections
  • Office environments that need to expand a single USB Type-B upstream port to multiple devices

When it may not be suitable

This hub supports the USB 2.0 standard (up to 480 Mbit/s) and therefore does not provide USB 3.x transfer speeds or bandwidth required by high-throughput devices such as modern external SSDs or high-resolution video capture devices. It is designed for industrial and peripheral connectivity rather than high-performance data-transfer applications.

Key specifications

  • USB standard: USB 2.0, up to 480 Mbit/s
  • Host interface: USB 2.0 Type-B
  • Number of downstream ports: 7 screw-lock USB 2.0 ports
  • ESD protection: 15 kV per port
  • Input voltage range: 7–48 V DC
  • Operating temperature: -40 °C to +85 °C
  • Dimensions (W × D × H): 36.3 mm × 61.5 mm × 113 mm
  • Weight: 0.6 kg
  • Colour: Black, White

How to use

Connect the hub's USB Type-B host interface to the upstream USB port on the host system. Attach peripheral devices to the screw-lock downstream ports and secure each connector by tightening the screw-lock mechanism to prevent accidental disconnection. Provide appropriate DC power within the 7–48 V range according to your installation; ensure wiring and grounding follow site requirements. The hub operates transparently to the host and attached USB 2.0 devices and requires no special drivers for standard operating systems.

What to consider before purchase

  • Required data transfer speed — limited to USB 2.0 (480 Mbit/s)
  • Number of devices to connect — seven downstream ports available
  • Power supply compatibility with the 7–48 V input range
  • Environmental conditions — operating temperature from -40 °C to +85 °C
  • Need for screw-lock connectors for vibration-prone or industrial settings

Recommendations

For stable operation in industrial or mobile installations, use properly shielded USB cables, secure the hub within a 19-inch rack if required, and follow grounding and ESD control practices. Avoid connecting devices that require USB 3.x bandwidth; distribute high-current devices across properly powered hubs to prevent power limitations.
Hlavné vlastnosti
  • Connecting multiple USB peripherals (sensors, barcode scanners, printers) in industrial racks
  • Automation systems requiring secure, vibration-resistant cable connections
  • Office environments that need to expand a single USB Type-B upstream port to multiple devices
  • USB standard: USB 2.0, up to 480 Mbit/s
  • Host interface: USB 2.0 Type-B
  • Number of downstream ports: 7 screw-lock USB 2.0 ports
  • ESD protection: 15 kV per port
  • Input voltage range: 7–48 V DC
  • Operating temperature: -40 °C to +85 °C
  • Dimensions (W × D × H): 36.3 mm × 61.5 mm × 113 mm
  • Weight: 0.6 kg
  • Colour: Black, White
  • Required data transfer speed — limited to USB 2.0 (480 Mbit/s)
  • Number of devices to connect — seven downstream ports available
  • Power supply compatibility with the 7–48 V input range
  • Environmental conditions — operating temperature from -40 °C to +85 °C
  • Need for screw-lock connectors for vibration-prone or industrial settings

Parametre

Parametre
Farba produktu
Čierna, biela
Hĺbka
61.53 mm
Hmotnosť
0.6 kg
Počet portov
7
Počet portov USB 2.0
7
Prenosová rýchlosť
480 Mbit/s
Prevádzková teplota (T-T)
-40 - 85
Relatívna vlhkosť pri prevádzke (H-H)
5 - 95
Rozhrania rozbočovača
USB 2.0
Rozhranie hostiteľa
USB 2.0 Type-B
Šírka
36.3 mm
Vstupné napätie
7 - 48
Výška
113 mm
