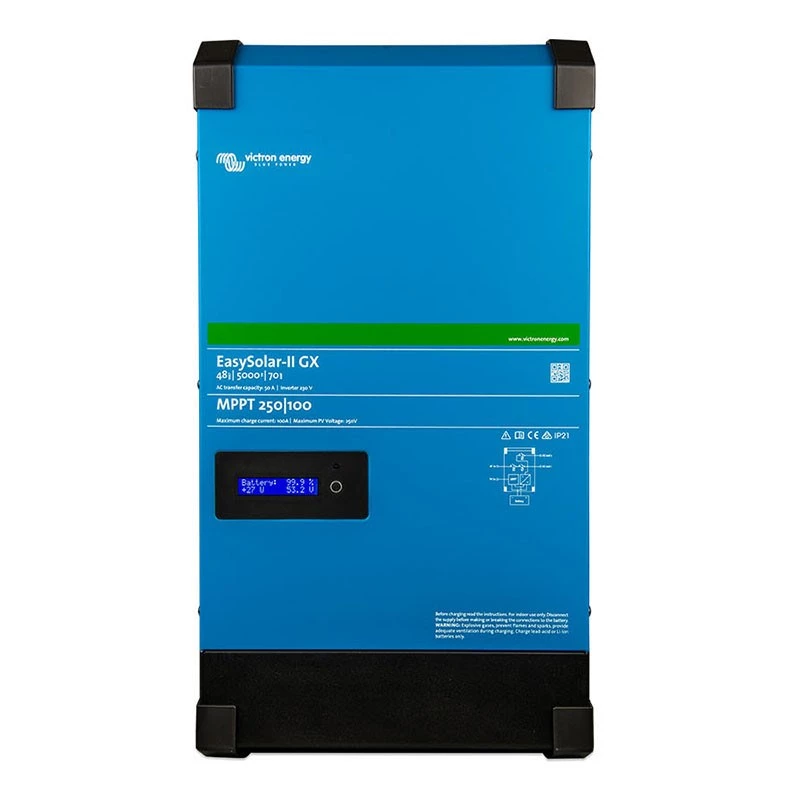

Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX all-in-one menič/nabíjačka/MPPT

The Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX is a powerful all-in-one inverter, battery charger, and MPPT solar charge controller with integrated GX device. Designed for off-grid and mobile applications, it combines a 5000VA inverter, a 70A battery charger, and a 250/100 MPPT solar charge controller in a single enclosure, simplifying installation and reducing wiring. The integrated GX device provides advanced monitoring and control via Ethernet, Wi-Fi, or Bluetooth, and supports remote management through the Victron Remote Management (VRM) portal.

Advantages

This all-in-one solution saves space and installation time, while the high-efficiency inverter (up to 95%) and SmartSolar MPPT technology maximize energy harvest. The unit features a 50A AC transfer switch for seamless backup power, and the GX functionality allows for system customization and data logging. With a wide operating temperature range (-40 to +65 °C) and IP21 protection, it is suitable for demanding environments.

Suitable for

• Off-grid residential and commercial solar systems
• Mobile applications such as RVs, boats, and vehicles
• Backup power systems with solar integration
• Remote monitoring and control via VRM portal

Key specifications

• Battery Voltage: 48 VDC
• Inverter Continuous Power: 5000 VA / 4000 W (25°C)
• Inverter Peak Power: 9000 W
• AC Output Voltage: 230 VAC
• AC Output Frequency: 50 Hz
• Max Inverter Efficiency: 95%
• Battery Charger Current: 70 A
• AC Transfer Switch Current: 50 A
• MPPT Solar Charge Controller: SmartSolar MPPT 250/100
• MPPT Max PV Open Circuit Voltage: 250 V
• MPPT Max PV Power (48V Battery): 5800 W
• MPPT Max Charge Current: 100 A
• Integrated GX Device: Yes (Color Control GX functionality)
• Communication Interfaces: VE.Bus, VE.Direct, VE.Can, Ethernet, Wi-Fi, Bluetooth
• Enclosure Protection Rating: IP21
• Operating Temperature Range: -40 to +65 °C
• Topology: High frequency (inverter)

Recommendations

For optimal performance, pair with Victron Energy batteries and use the VRM portal for remote monitoring. Ensure proper ventilation and mounting in a dry location.
