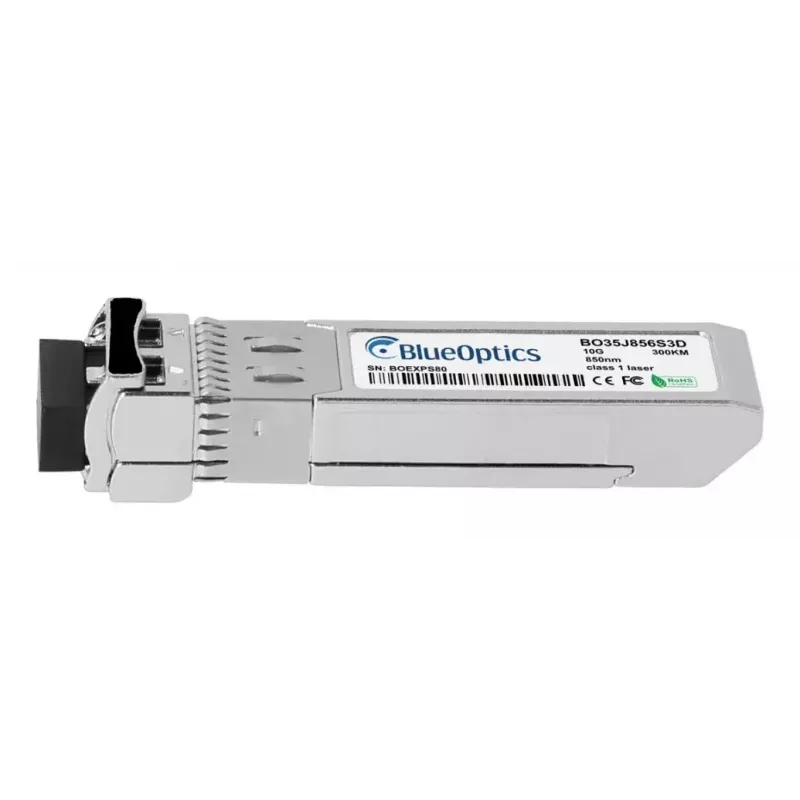

Vláknový transceiver BlueOptics OC10-SR-OPT-1-BO 10000 Mbit/s SFP+

The BlueOptics OC10-SR-OPT-1-BO is a 10GBASE-SR SFP+ fiber optic transceiver designed for high-speed multimode fiber links. It supports a maximum data transfer rate of 10000 Mbit/s and uses an LC Duplex connection following MSA standards. The module provides optical transmission and reception at 850 nm and includes Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time monitoring of supply voltage, laser current, optical transmit/receive power and temperature. The compact silver module weighs approximately 20 g and meets CE, RoHS and FCC conformity requirements.

Advantages

The transceiver is manufactured to MSA specifications and is compatible with common hardware platforms that support the corresponding Emulex 10GBASE-SR SFP+ modules, offering plug-and-play interoperability. High-quality components such as precision lasers and reliable ICs are used to extend service life and increase MTBF, improving long-term availability of optical links. Integrated digital diagnostics simplify remote fault analysis and preventive maintenance by providing key operational parameters in real time.

Suitable for

Key specifications

How to use

Install the SFP+ transceiver into a compatible SFP+ slot on your switch, router or other network device while the device is powered according to the vendor’s installation guidance. Connect LC Duplex multimode fiber patch cables to the transceiver ensuring correct TX/RX orientation. Verify link status in the host device and, if required, access DDM/DOM parameters through the management interface for optical power and temperature readings. Follow the network equipment vendor’s firmware and compatibility instructions when deploying the module to ensure full functionality.

Recommendations

Use shortwave 850 nm multimode fiber (OM3/OM4) for optimal reach and performance at 10 Gbit/s. Keep fiber connectors clean and use dust caps when transceivers are not connected. Confirm that the host hardware supports DDM/DOM if you plan to use diagnostic monitoring, and match transceiver end-to-end using compatible modules and patch cables to avoid interoperability issues.
