Vláknový transceiver modul BlueOptics AFBR-710JAMZ-BO SFP+ LC hliník 20g

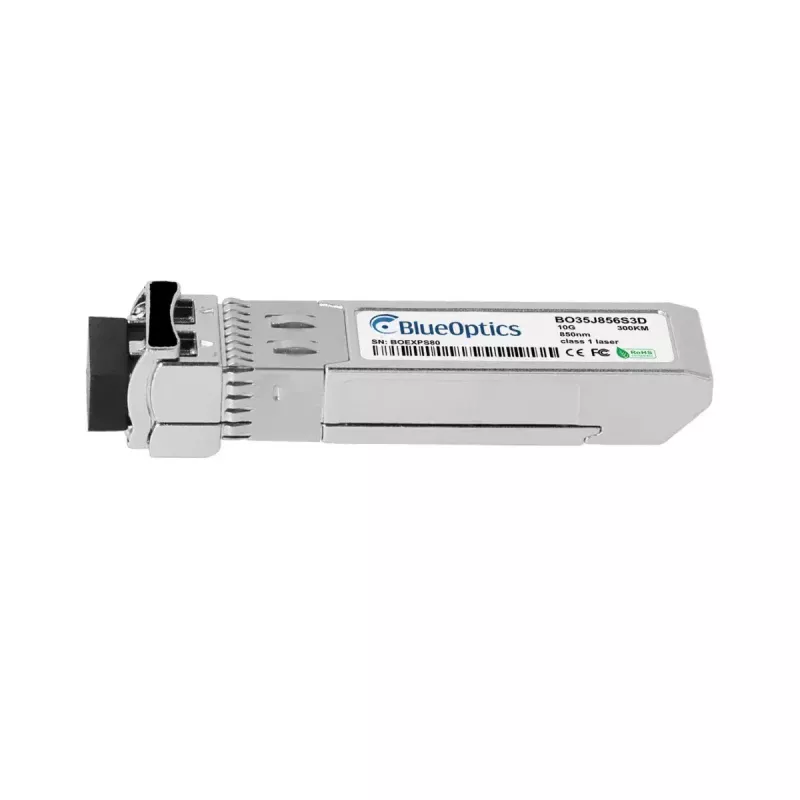

The BlueOptics AFBR-710JAMZ-BO SFP+ LC Aluminium 20g is a fiber optic transceiver module designed for 10G high-speed data transmission over multimode fiber. The module follows MSA SFP+ mechanical standards, uses an LC duplex connector and comes in an aluminium housing with a weight of approximately 20 g. It is compatible with SFP+ interfaces and intended for use in networking equipment that supports 10GBASE-SR multimode optical links.

Advantages

This SFP+ transceiver supports 10GBASE-SR class optical transmission with separate 850 nm transmitter and receiver channels for simultaneous send/receive operation. The aluminium housing provides mechanical durability and thermal stability while the compact SFP+ form factor ensures broad compatibility with standard SFP+ ports. The module is suitable for multimode fiber links and is designed to integrate with systems that implement SFP+ MSA specifications.

Suitable for

• 10 Gigabit Ethernet uplinks and inter-switch connections over multimode fiber
• Data centre and server storage network links requiring SFP+ modules
• High-speed connections in routers, switches and storage systems that accept SFP+ transceivers

Key specifications

• Form factor: SFP+
• Connector type: LC duplex
• Optical wavelength: 850 nm transmitter and receiver
• Application: 10GBASE-SR multimode fiber links
• Housing material and colour: aluminium / aluminium colour
• Weight: approximately 0.02 kg

How to use

Install the BlueOptics AFBR-710JAMZ-BO by inserting the SFP+ module into a compatible SFP+ port until it latches. Connect LC duplex multimode fiber patch cords to the module’s LC connector, observing correct transmit/receive orientation. Ensure the host device supports 10GBASE-SR SFP+ modules and, if required, enable any vendor-specific settings in the device software. When removing the module, release the latch before pulling it out to avoid damage.

Recommendations

For optimal performance, use high-quality multimode fiber patch cords and ensure connectors and patch panels are clean. Confirm that the host equipment supports DDM/DOM monitoring if real-time diagnostic data is required. Keep the module within manufacturer-recommended operating temperature and handling guidelines to preserve component lifetime and link stability.
