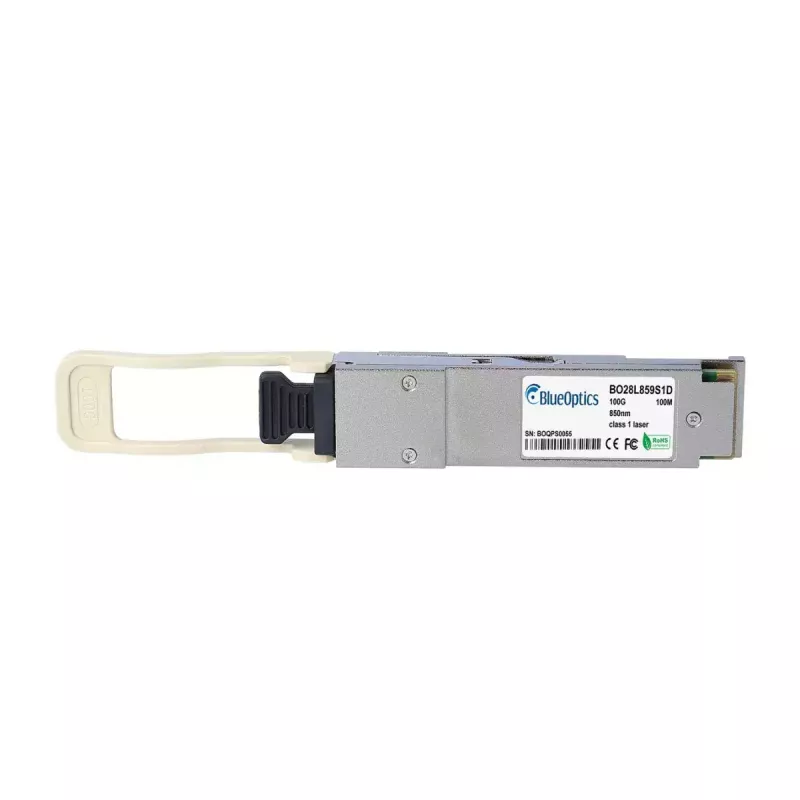

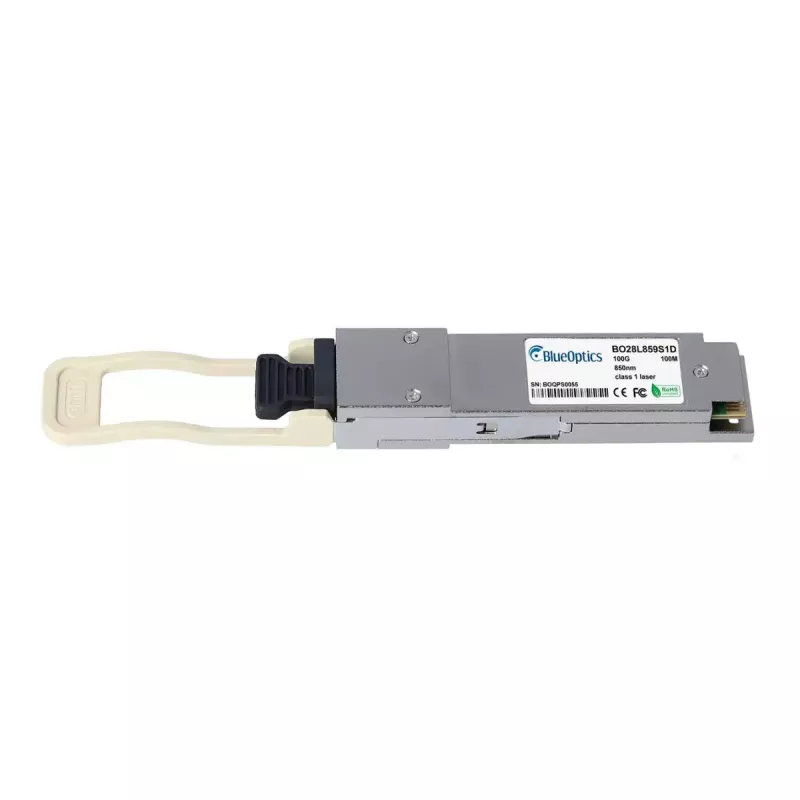

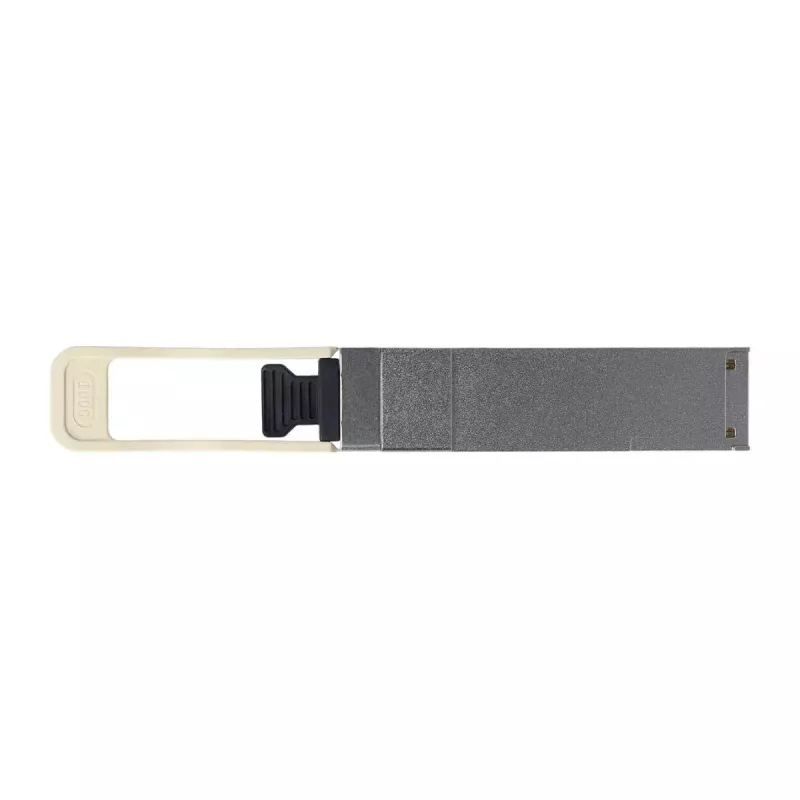

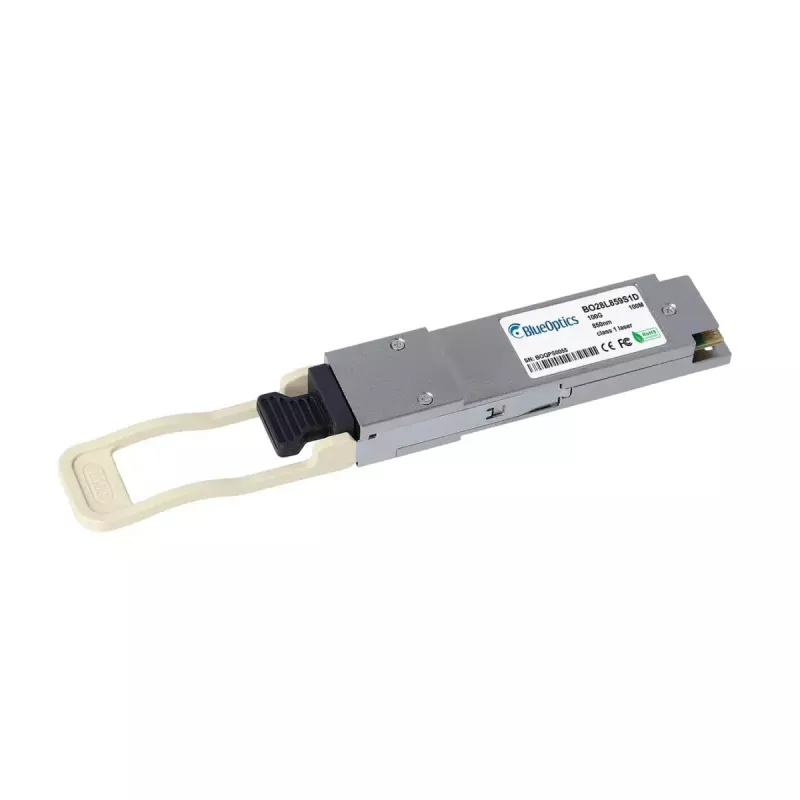

Vláknový transceiver modul BlueOptics AV1D-BO 100000 Mbit/s QSFP28

The BlueOptics AV1D-BO QSFP28 fiber optic transceiver module provides 100000 Mbit/s short-range optical connectivity in a compact QSFP28 form factor. Designed for multimode fiber links operating at 850 nm, the module supports 100GBASE-SR4 applications and uses an MPO/MTP connector compliant with MSA standards. With a lightweight silver housing and industry-standard QSFP28 interface, this transceiver is intended for integration into switches, routers, storage systems and other network hardware that accept QSFP28 SR4 modules.

Advantages

The transceiver delivers high data throughput at 100 Gbit/s over multimode fiber and supports simultaneous transmit and receive channels via MPO/MTP connectivity. It is manufactured to MSA form-factor and optical specifications for interoperability with compatible hardware platforms. Built with components chosen for reliability, the module includes diagnostic monitoring capabilities for real-time status of optical parameters. Its small QSFP28 footprint and low weight simplify installation and system upgrades.

Suitable for

Key specifications

How to use

Insert the QSFP28 transceiver into a compatible QSFP28 slot on the target device, ensuring the module is fully seated and latched according to the host equipment instructions. Connect an MPO/MTP multimode fiber patch cord that matches the transceiver pinout and the receiving module. Verify link negotiation and operational parameters through the host system interface; if available, use the digital diagnostics monitoring (DDM) to read supply voltage, laser bias, transmit output power, receive input power and temperature. Follow the network equipment vendor’s guidance for hot-plugging and firmware compatibility when deploying third-party transceivers.

Recommendations

Use OM3/OM4 multimode fiber and manufacturer-recommended MPO/MTP patch cords to achieve optimal 100GBASE-SR4 performance. Confirm that the host hardware supports DDM/DOM if you require remote diagnostics. For best reliability, observe ESD precautions during handling and avoid tight bends or excessive tensile stress on fiber connections.
