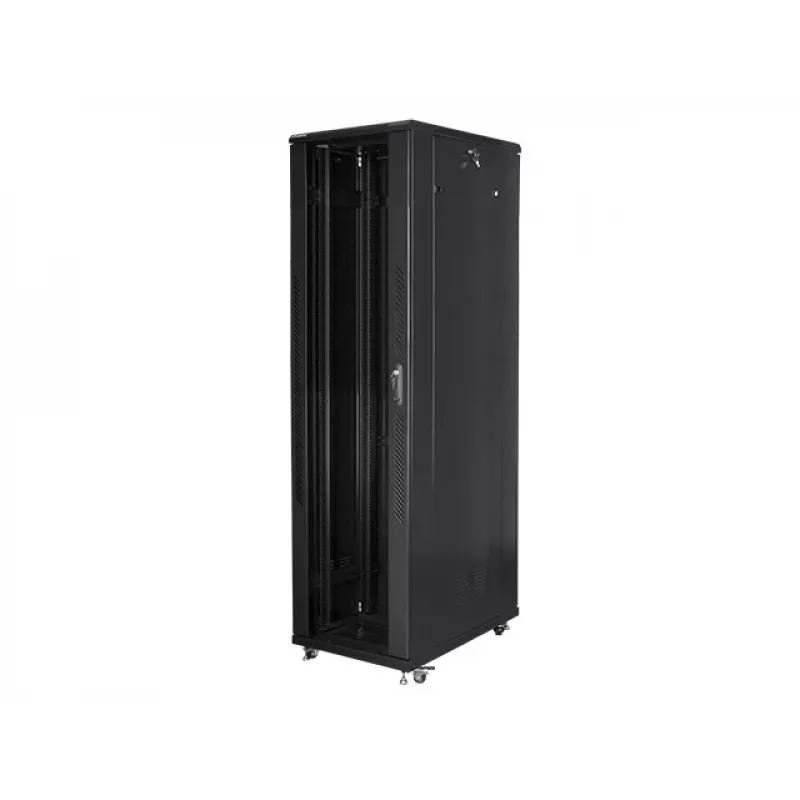

Voľne stojaci rack Lanberg FF01-8047-12B

Freestanding rack Lanberg FF01-8047-12B is a 19" cabinet with 47U of usable rack space and a maximum load capacity of 800 kg. Constructed from high-grade cold rolled steel and finished in black, the cabinet is intended for indoor IT environments (IP20) such as networks, server rooms, small and medium businesses, and data centres. It supports installation of network and low-voltage equipment including CCTV/IP surveillance, cable TV, alarm, fire protection and access control systems. The product ships in four flat packs for self-assembly and includes mounting rails, M6 cage nuts, blank entry panels and a fan tray with four 230V fans.

Advantages

The cabinet offers adjustable-depth vertical mounting rails for flexible installation of 19" equipment and sturdy construction that supports up to 800 kg of load. Front tempered glass door and solid steel rear door both include locks and the front door can be fitted to open from either right or left. Removable side panels with locks provide easy access for maintenance, while top and bottom cable entry panels simplify cable routing. Castor wheels and adjustable feet improve mobility and stability during positioning.

Suitable for

• Server rooms and data centres
• Network closets in small and medium businesses
• CCTV and IP surveillance installations
• Low-voltage systems: cable TV, alarm, fire protection, access control
• Environments requiring 19" rack mounting with up to 47U

Key specifications

• Rack capacity: 47U
• Maximum load capacity: 800 kg
• Dimensions (HxWxD): 2270 × 800 × 1000 mm
• Maximum mounting depth: 920 mm
• Weight: 154 kg
• IP rating: IP20
• Colour: Black
• Includes: mounting rails, M6 cage nuts, blank entry panels, fan tray with 4 × 230V fans

How to use

Assemble the cabinet following the included instructions; the unit is supplied in four flat packs. Install the adjustable vertical rails to match the mounting depth of your 19" equipment (max 920 mm) and secure devices using the provided M6 cage nuts. Route cabling through the top and bottom blank entry panels and fit the tempered glass front door on the preferred side (right- or left-hand opening). Connect the fan tray to a suitable 230V supply and secure side panels and rear door, locking them if required for security.

Recommendations

Position the cabinet on a level surface, use the adjustable feet to stabilise the unit after moving it with the castors, and distribute heavy equipment evenly across the rack to avoid concentrating load in one area. Ensure proper ventilation and maintain clearance for airflow around the cabinet per site safety rules.
