WAGO 2005-7641 TOPJOB S priechodná svorka, 6 mm², sivá, 800 V, 41 A

The WAGO 2005-7641 is a high-quality through terminal block from the TOPJOB S series, designed for reliable and maintenance-free electrical connections. With a compact width of 6.2 mm, it saves space on the DIN-rail while providing a rated voltage of 800 V and a rated current of 41 A. The CAGE CLAMP® connection technology ensures fast, vibration-proof, and gas-tight connections for solid and fine-stranded conductors.

Advantages

• Space-saving design with 6.2 mm width
• CAGE CLAMP® spring pressure connection technology for tool-free wiring
• Rated voltage up to 800 V and rated current up to 41 A
• Wide conductor range: 0.5 - 10 mm² solid, 0.5 - 6 mm² fine-stranded
• UL94 V-0 flammability rated polyamide housing for high safety
• Operating temperature range from -35 to +85 °C

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution and junction boxes
• Lighting and HVAC applications

Key specifications

• Series: TOPJOB S
• Type: Through Terminal Block
• Number of Conductors: 2
• Number of Potentials: 1
• Nominal Cross Section: 6 mm² (10 AWG)
• Connection Technology: CAGE CLAMP®
• Rated Voltage (EN 60947-7-1): 800 V
• Rated Impulse Voltage: 8 kV
• Rated Current (EN 60947-7-1): 41 A
• Connectable Conductor Range (Solid): 0.5 - 10 mm² (20 - 8 AWG)
• Connectable Conductor Range (Fine-stranded): 0.5 - 6 mm² (20 - 10 AWG)
• Strip Length: 12 - 14 mm
• Mounting Type: DIN-rail 35
• Color: Gray
• Insulating Material: Polyamide (PA)
• Flammability Rating: UL94 V-0
• Operating Temperature: -35 to +85 °C

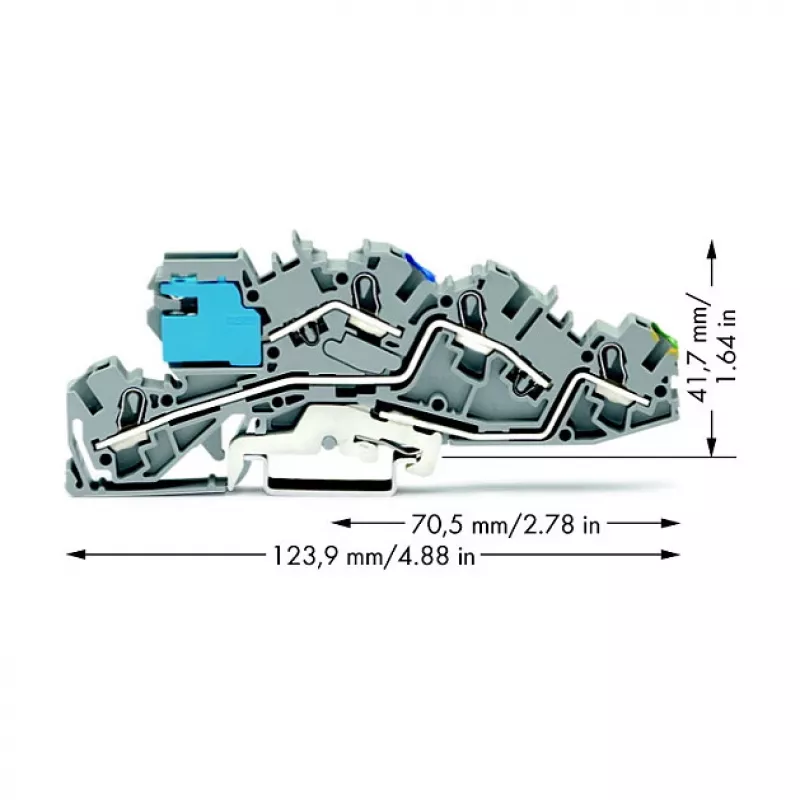

• Dimensions (W x H x D): 6.2 mm x 124 mm x 41.7 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper conductor stripping length (12-14 mm) for secure connections. This terminal block is ideal for new installations and retrofits in demanding industrial environments.
