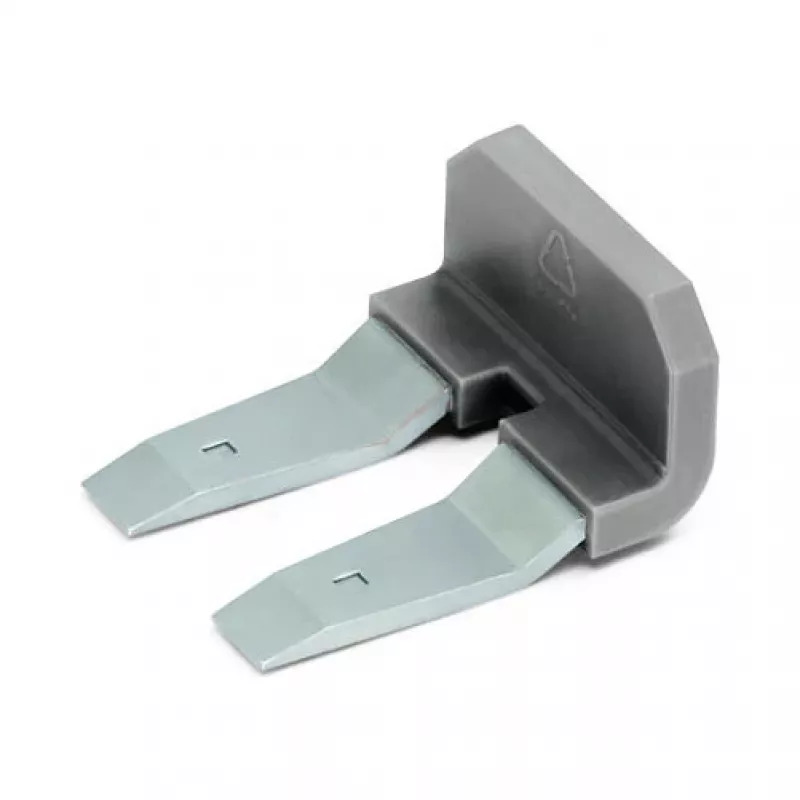

WAGO 285-450 Izolovaný priečny prepojovač, sivá, 2-pólový

The WAGO 285-450 is a high-quality insulated cross-connector designed for use with WAGO 285 Series rail-mount terminal blocks. It enables simple and reliable potential distribution across adjacent terminal blocks, saving time and reducing wiring errors. The grey polyamide housing provides excellent insulation and durability, making it suitable for industrial and building automation applications.

Advantages

This cross-connector offers a plug-in connection for easy lateral mounting, eliminating the need for additional wiring. Its compact 2-pole design with 16 mm pitch ensures space-saving installation. The insulated construction prevents accidental contact, enhancing safety. Rated for up to 1000 V and 76 A (dependent on terminal block), it delivers robust performance in demanding environments.

Suitable for

• Potential distribution in WAGO 285 Series terminal block assemblies
• Control cabinets, switchgear, and industrial automation systems
• Building electrical installations requiring reliable bridging

Key specifications

• Product Type: Cross-connector
• Number of Poles: 2
• Number of Potentials: 1
• Colour: Grey
• Insulation: Insulated
• Insulation Material: Polyamide (PA 66)
• Flammability Rating: UL 94 V-0
• Pitch: 16 mm
• Connection Type: Plug-in
• Mounting Type: Lateral
• Operating Temperature: -35 to +105 °C
• Storage Temperature: -35 to +105 °C
• Conductor Material: Electrolytic copper
• Rated Voltage: Up to 1000 V (dependent on terminal block)
• Rated Current: Up to 76 A (dependent on terminal block)

Recommendations

For optimal performance, use with WAGO 285 Series terminal blocks. Ensure proper installation and observe rated voltage and current limits.
