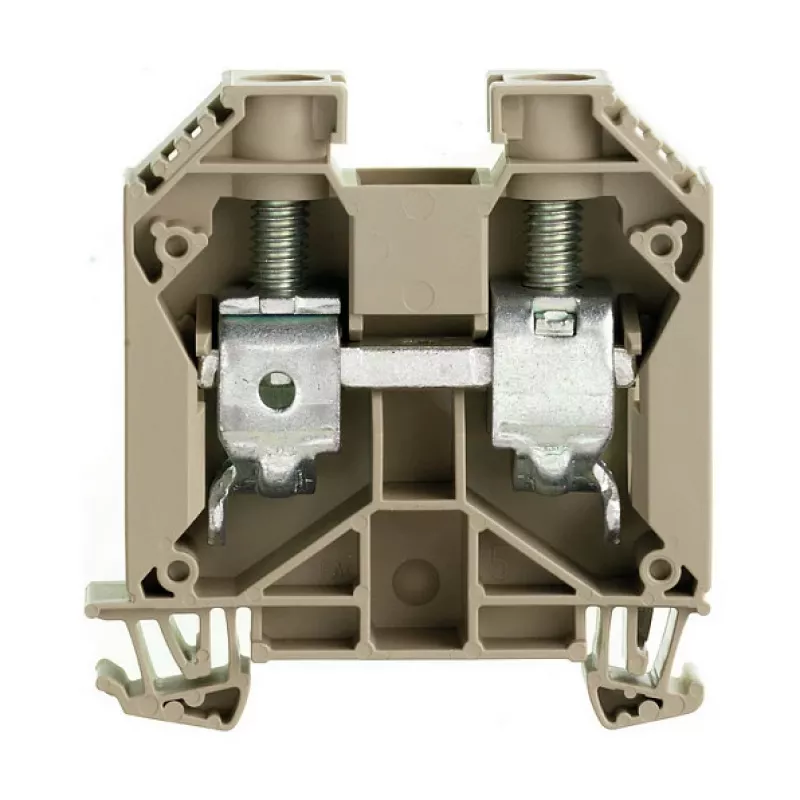

Weidmüller WDU 35 skrutkovacia radová svorka, 35 mm², 1000 V, 125 A, tmavobéžová

The Weidmüller WDU 35 is a high-quality screw connection terminal block designed for reliable and secure wiring in industrial applications. With a rated cross-section of 35 mm² and a rated voltage of 1000 V, it is suitable for demanding electrical installations. The terminal block features a compact design with dimensions of 16 mm width, 62.5 mm height, and 60 mm depth, making it ideal for space-saving DIN rail mounting.

Advantages

Robust screw connection ensures vibration-proof and maintenance-free wiring. The Wemid insulating material provides excellent thermal and mechanical resistance, with an operating temperature range from -50 °C to 120 °C. The V-0 flammability rating guarantees high fire safety. Easy installation on TS 35 DIN rail with side wire entry for convenient access.

Suitable for

• Industrial control cabinets and distribution boards
• Power supply and motor connection applications
• Automation and process control systems
• Railway and infrastructure projects requiring high reliability

Key specifications

• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 125 A
• Rated Cross-Section: 35 mm²
• Connection Type: Screw Connection
• Mounting: DIN Rail TS 35
• Number of Connections: 2
• Number of Levels: 1
• Colour: Dark Beige
• Housing Material: Wemid (PA 66)
• Operating Temperature: -50 °C to 120 °C
• Stripping Length: 20 mm
• Tightening Torque: 4.0 - 4.8 Nm
• Pollution Degree: 3
• Overvoltage Category: III
• Flammability Rating: UL94 V-0
• Approvals: cURus, EAC, KEMA, ATEX, IECEx
• Wire Entry Direction: Side

Recommendations

For optimal performance, use with copper conductors and appropriate ferrules. Ensure proper tightening torque as specified. Suitable for use in hazardous locations with ATEX and IECEx approvals.
