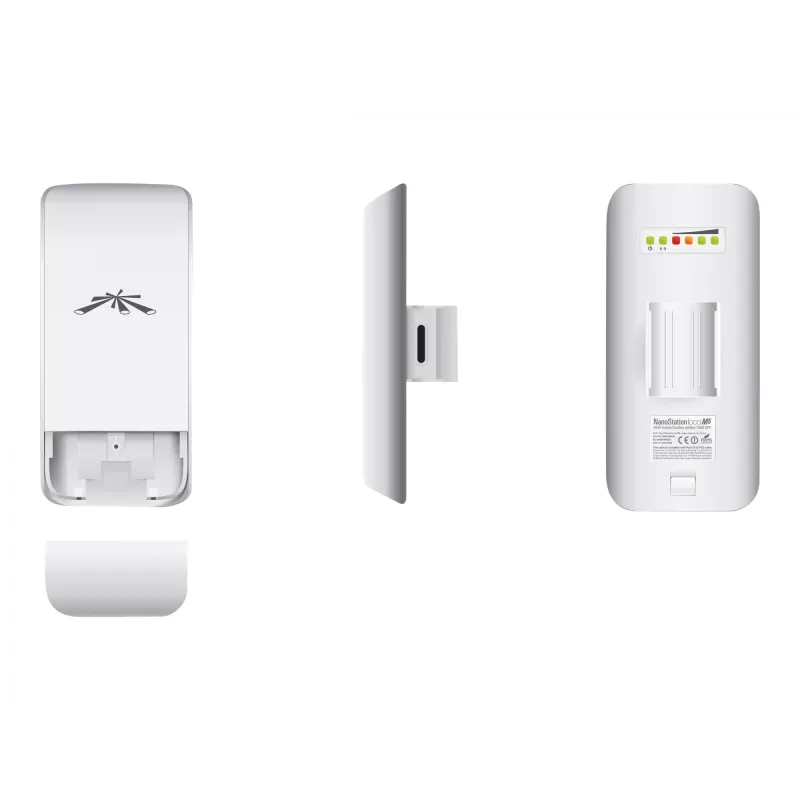

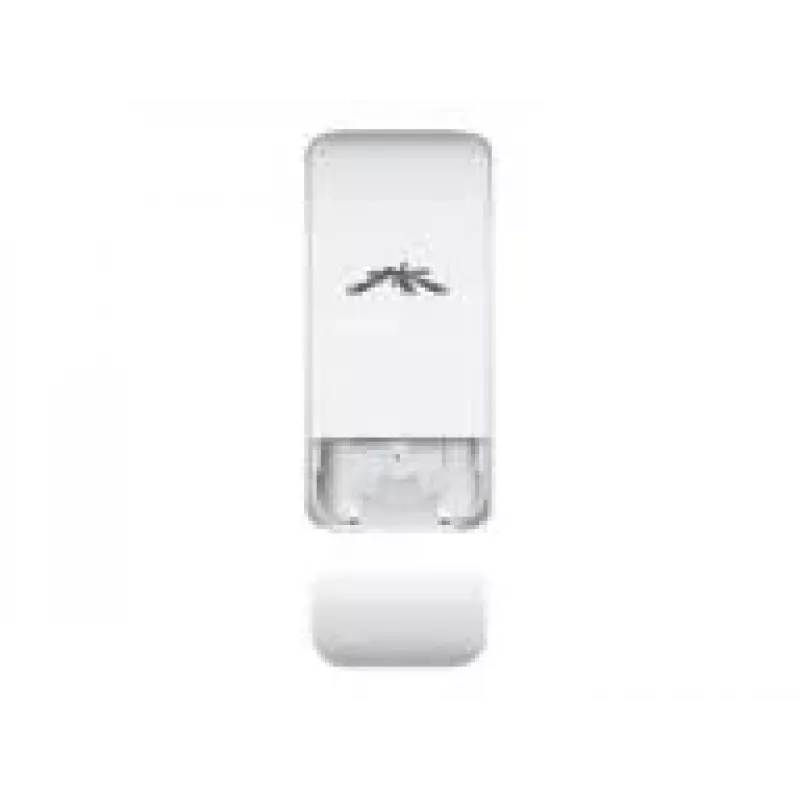

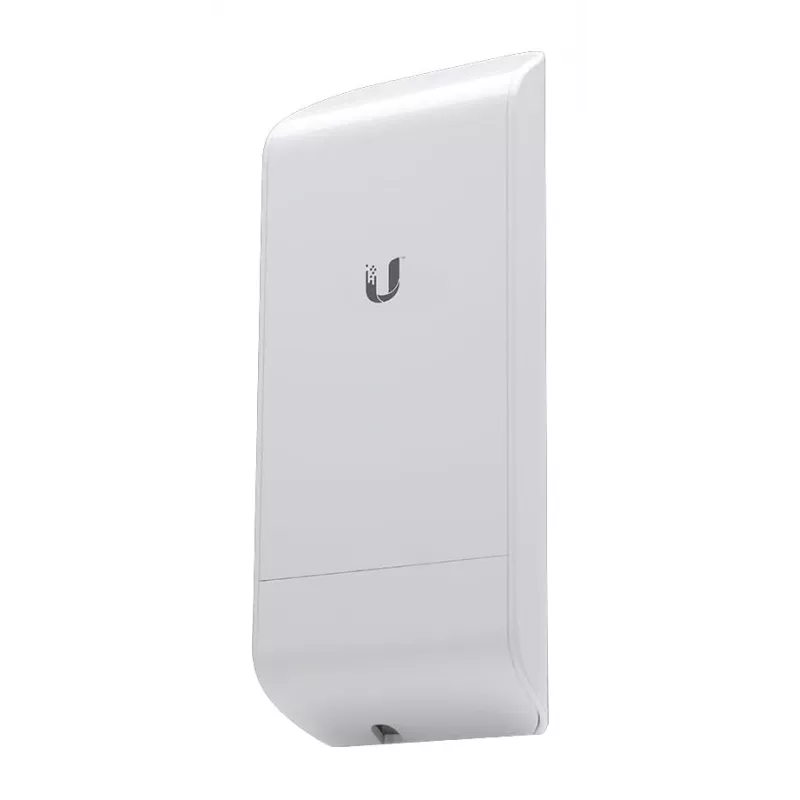

Wireless Access Point UBIQUITI LocoM5, 5 GHz Single-Band, 150 Mbit/s, 13 dBi, PoE

The Ubiquiti NanoStation Loco M (LocoM5) is a compact outdoor wireless access point designed for long-range point-to-point and point-to-multipoint links. It integrates a high-gain MIMO antenna (13 dBi) and airMAX radio technology to deliver up to 150 Mbit/s throughput in the 5.170–5.875 GHz band. The unit features a single 10/100 Ethernet port and supports standard IEEE802.3/802.3u wired interfaces for PoE-powered outdoor deployments.

Advantages

The NanoStation Loco M combines airMAX TDMA protocol efficiency and a MIMO antenna array in a small form factor, providing improved latency, throughput, and scalability versus comparable outdoor devices. It runs Ubiquiti's airOS firmware, which includes spectrum analysis (airView) and central device management (airControl), enabling easier network tuning and monitoring. The 13 dBi antenna and tuned RF design offer focused coverage for stable outdoor links.

Suitable for

• Point-to-point wireless links between buildings
• Point-to-multipoint outdoor subscriber connections
• Outdoor coverage for small campuses and remote sites

Key specifications

• Maximum data transfer rate: 150 Mbit/s
• Frequency band: 5.170–5.875 GHz
• Antenna gain: 13 dBi (MIMO)
• Ethernet: 1 × 10/100Base-T(X) (RJ-45)
• Standards: IEEE 802.3, IEEE 802.3u
• Weight: 0.18 kg

How to use

Mount the NanoStation Loco M outdoors with clear line-of-sight toward the remote station. Connect the device to a PoE injector or PoE-enabled switch using the RJ-45 Ethernet port for both power and data. Access the airOS web interface to configure radio parameters, set channel and channel width, align antennas for best signal, and enable airMAX mode for TDMA-based performance. Use airView for spectrum analysis and airControl for centralized management when available.

Recommendations

Place the device with unobstructed line-of-sight and minimize nearby RF interference; for optimal throughput, select a clear channel in the 5 GHz band, keep firmware updated, and use proper grounding and weatherproof mounting for reliable outdoor operation.
