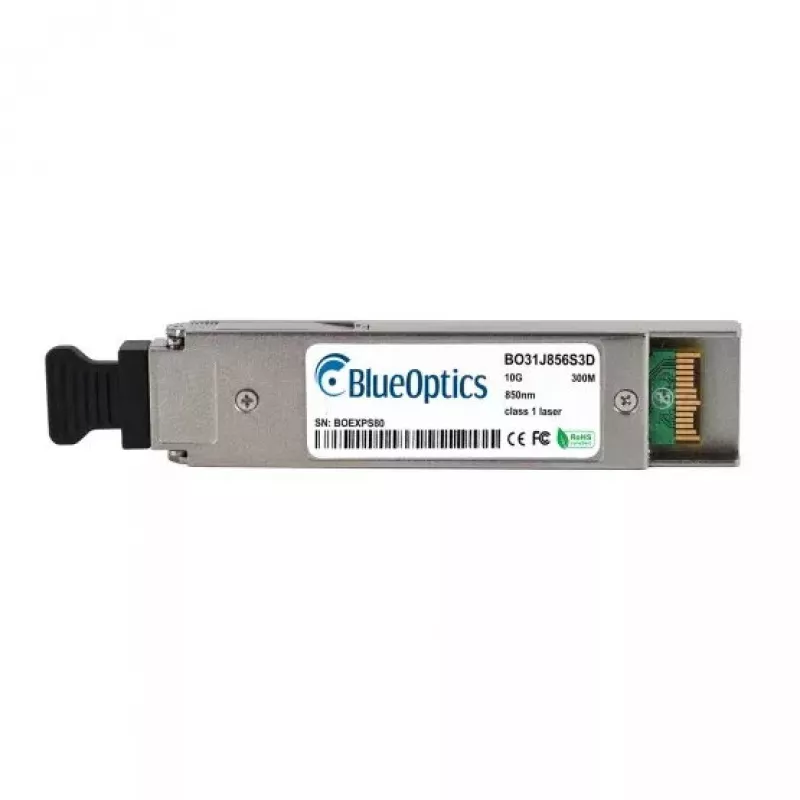

XFP transceiver modul BlueOptics 808-38610-BO 850 nm LC 300 m

The BlueOptics 808-38610-BO is an XFP transceiver module designed for high-speed optical data transmission. Operating at an 850 nm wavelength with an LC duplex connector, this 10GBASE-SR compatible module supports multimode fiber links up to 300 m and fits standard XFP ports. The compact, lightweight module (approximately 20 g) follows MSA electrical and mechanical guidelines to ensure interoperability with compatible network hardware.

Advantages

The module provides reliable 10 Gbps optical communication over multimode fiber with an industry-standard LC interface and XFP form factor. It supports digital diagnostic monitoring (DDM/DOM) for remote measurement of supply voltage, laser bias current, transmit power, received power and temperature when supported by the host system. Built to meet common industrial standards, the module is compatible with a wide range of switching, routing and storage platforms that accept XFP 10GBASE-SR optics.

Suitable for

• 10 Gbps multimode fiber links in data centers and campus networks
• Server-to-switch and switch-to-switch short-range connections (up to 300 m)
• High-speed Ethernet, Fibre Channel over Ethernet and similar 10G protocols

Key specifications

• Form factor: XFP
• Wavelength: 850 nm
• Maximum reach: 300 m over multimode fiber
• Connector type: LC duplex
• Typical data rate: 10 Gbps (10GBASE-SR compatible)
• Weight: approx. 0.02 kg
• Module colour: grey
• Digital diagnostic monitoring: supported when host system provides DDM/DOM support

How to use

Install the BlueOptics XFP module into an XFP-compatible slot of a switch, router or other network device following the host vendor’s procedures for hot-plug optics. Connect LC duplex multimode fiber patch cords to the module’s LC ports, ensuring correct transmit/receive orientation. Verify link status via the network device management interface and, if available, read DDM/DOM parameters from the host to monitor operating conditions. Follow standard electrostatic discharge (ESD) precautions when handling the transceiver.

Recommendations

For optimal performance use OM3/OM4 multimode fiber for links approaching the upper reach limit, maintain clean LC connectors and patch cords, and confirm DDM/DOM compatibility with the host device to enable remote monitoring. Keep the transceiver within the operating environment and mechanical constraints specified by your equipment vendor.
