XFP transceiver modul BlueOptics JXP-01LEAB1-BO 10000 Mbit/s 1310 nm

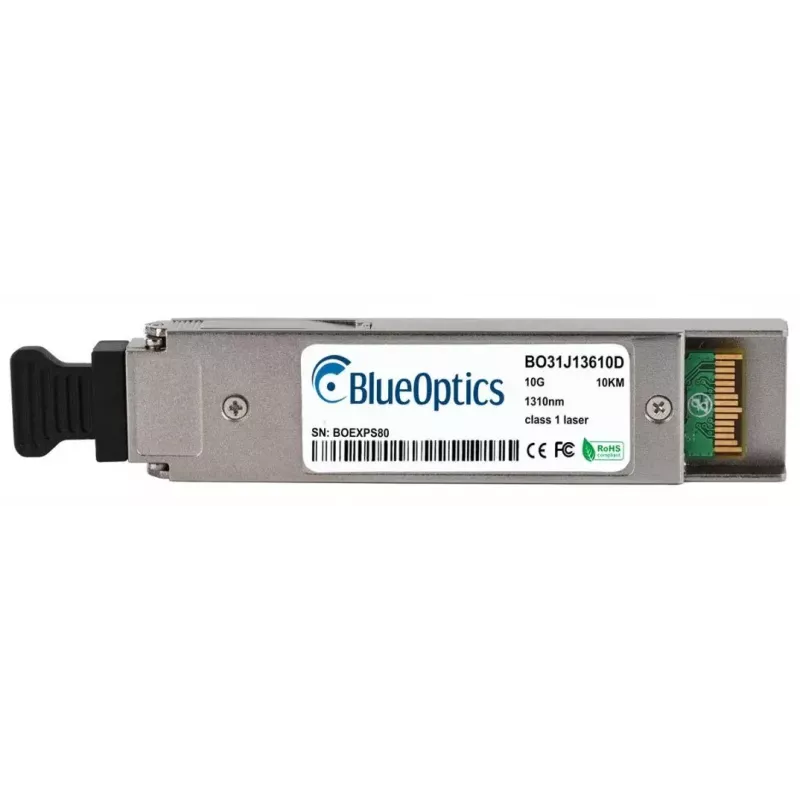

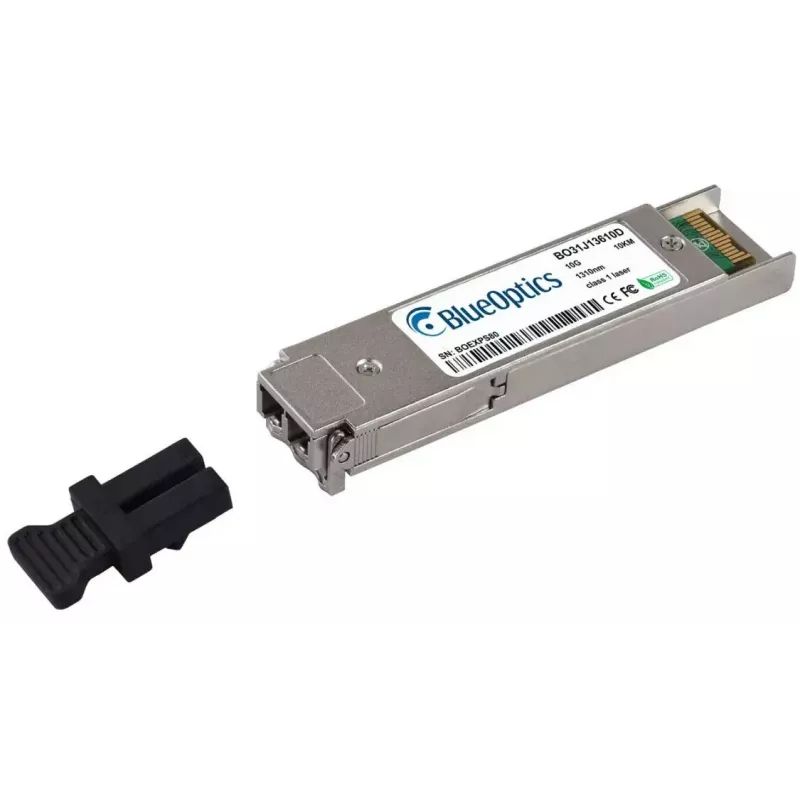

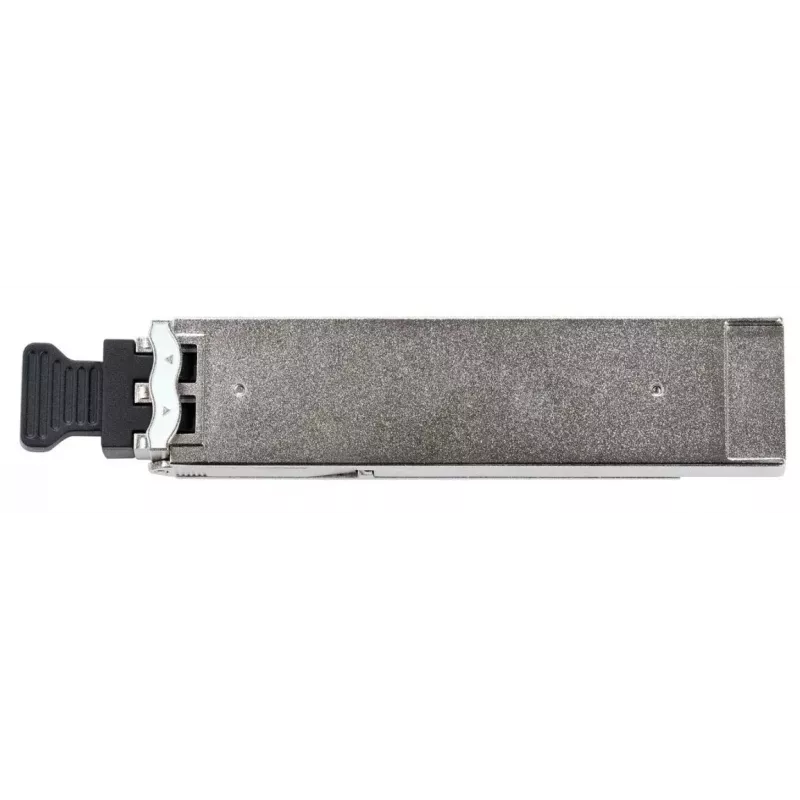

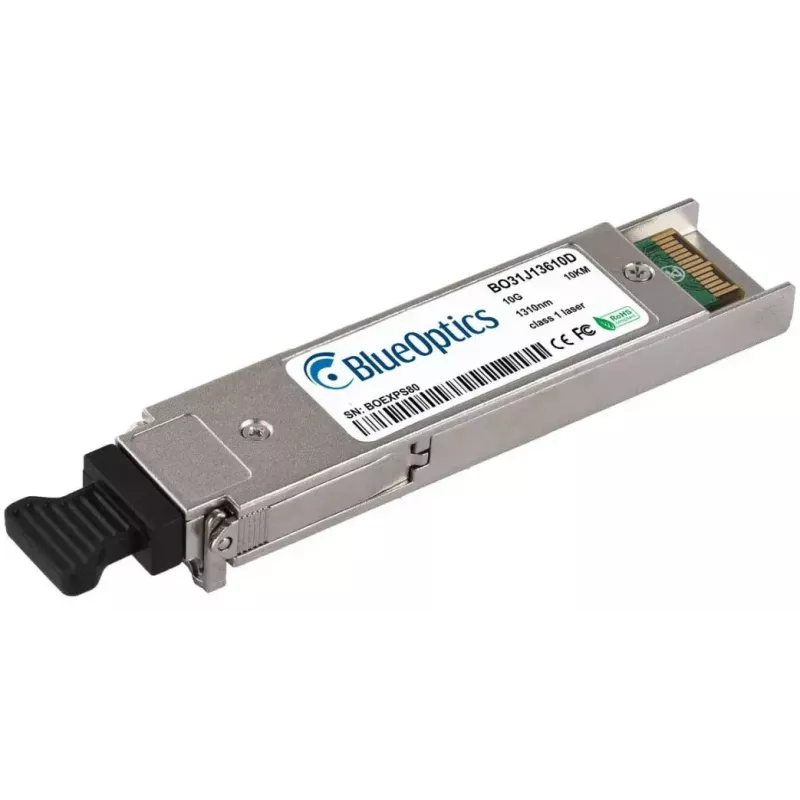

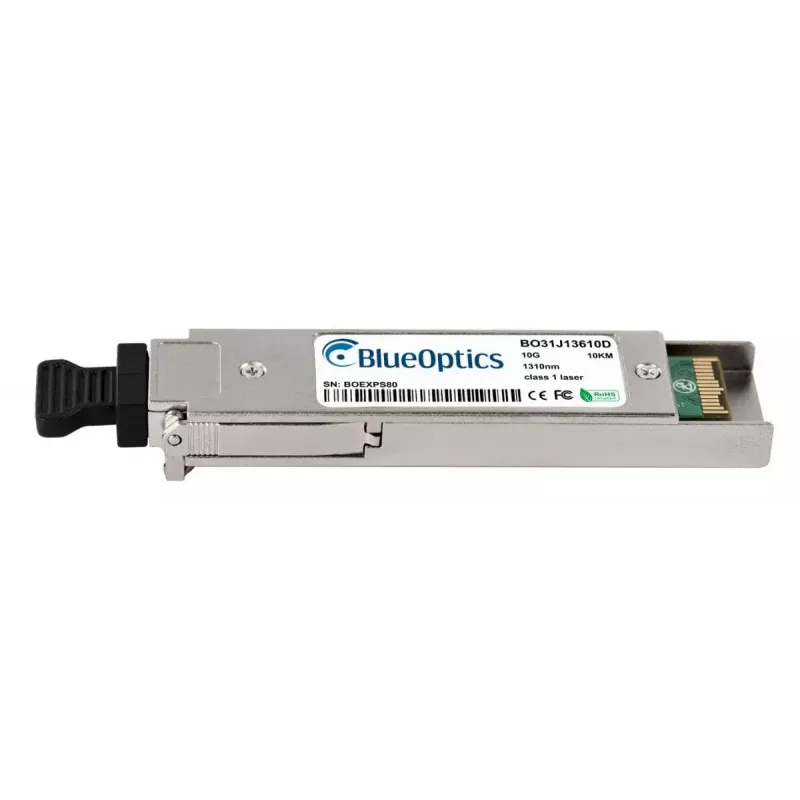

The BlueOptics JXP-01LEAB1-BO XFP transceiver module is a compact 10GBASE-LR-compatible optical interface designed for high-speed single-mode fiber networks. It supports a maximum data rate of 10000 Mbit/s and operates at a wavelength of 1310 nm. Housed in a metal casing and powered by a 3.3 V input, the module uses an LC duplex connector and fits XFP ports that follow MSA standards. At approximately 4 g, the module is lightweight and intended for installation in switches, routers, storage systems and other network devices that accept XFP transceivers.

Advantages

The transceiver provides 10 Gbit/s transmission over single-mode fiber with a 1310 nm transmitter and receiver, supporting long-reach applications up to typical 10 km ranges when used under matching link conditions. Manufactured according to MSA-compliant XFP specifications, it offers broad compatibility with equipment that supports the original JDSU JXP-01LEAB1 10GBASE-LR modules. Built-in digital diagnostic monitoring (DDM/DOM) enables real-time readout of supply voltage, laser bias current, transmit output power, receive input power and temperature when the host hardware supports these features.

Suitable for

Key specifications

How to use

Before installation, verify that the target device supports XFP transceivers and the 10GBASE-LR profile. Power down or follow the hot-swap procedure recommended by your equipment vendor, align the module with the XFP slot and insert it until it seats securely. Connect LC duplex single-mode fiber patch cords to the transmitter and receiver ports—observe correct polarity. If the host supports DDM/DOM, access diagnostic data through the device management interface to confirm link health and optical power levels. Configure the host interface for the appropriate Ethernet or protocol settings and verify link status after insertion.

Recommendations

For optimal performance, use single-mode fiber and high-quality LC duplex patch cords, verify polarity and connector cleanliness before making the connection, and ensure the host platform firmware supports third-party XFP modules and DDM/DOM if diagnostic monitoring is required. Follow manufacturer guidelines for ESD protection and hot-swap procedures.
