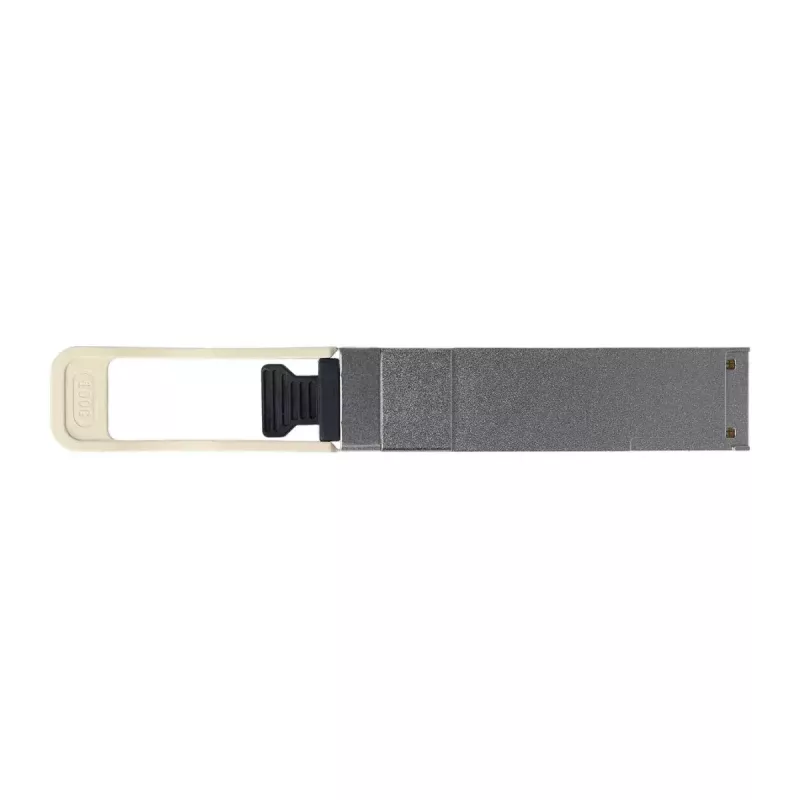

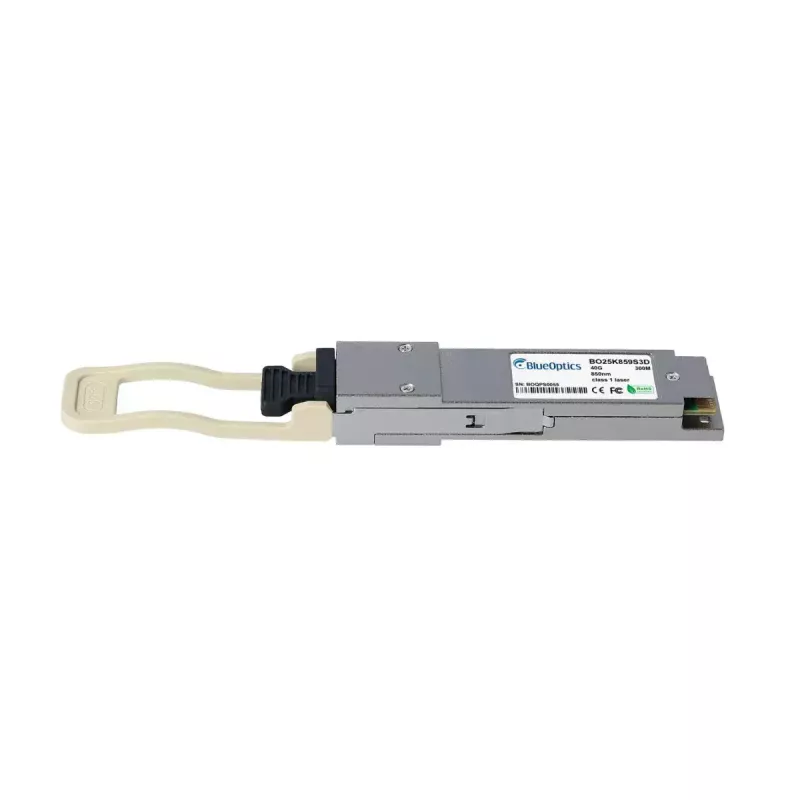

40G-SR4-QSFP150M-BO sieťový transceiver modul BlueOptics 40000 Mbit/s QSFP

The BlueOptics 40G-SR4-QSFP150M-BO is a fiber optic network transceiver module designed for short-reach 40 Gbit/s links using a QSFP form factor. It supports a maximum data transfer rate of 40000 Mbit/s and is supplied in a compact, lightweight silver enclosure. With a high MTBF value, the module is intended for deployment in data centers, aggregation switches and high-performance networking equipment where space efficiency and reliable high-speed connectivity are required.

Advantages

The module offers a QSFP interface for four-lane 10 Gbit/s operation aggregated to 40 Gbit/s and a compact QSFP form factor that eases port density in switch and server environments. Its lightweight construction and silver finish make it suitable for hot-pluggable installation. A rated mean time between failures (MTBF) of 1,000,000 hours indicates long-term operational reliability under standard conditions. The transceiver is optimized for short-reach multimode fiber links and for use where predictable, high-throughput performance is needed.

Suitable for

• 40 Gbit/s short-reach multimode fiber connections in data centers
• High-density aggregation switches and top-of-rack connectivity
• Interconnects between switches and servers requiring QSFP ports
• Environments requiring hot-pluggable transceivers and compact form factors

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Form factor: QSFP (quad small form-factor pluggable)
• Typical application: short-reach multimode fiber links
• Colour: silver
• Weight: 0.02 kg
• Reliability: MTBF approximately 1,000,000 hours

How to use

Install the BlueOptics QSFP module into a compatible QSFP port on a switch, router or network interface card following the host device manufacturer’s hot-swap and handling guidelines. Ensure compatible multimode fiber cabling and connector types are used for short-reach 40 Gbit/s links, then verify link negotiation and port settings in the network equipment management interface. Observe ESD precautions when handling the module and remove any protective caps from fiber interfaces prior to insertion.

Recommendations

For optimal performance, use recommended multimode fiber types and maintain bend-radius and connector cleanliness standards. Verify that the network equipment firmware and transceiver settings support QSFP 40 Gbit/s operation. Store unused modules in antistatic packaging and operate within the environmental ranges specified by the host equipment.
